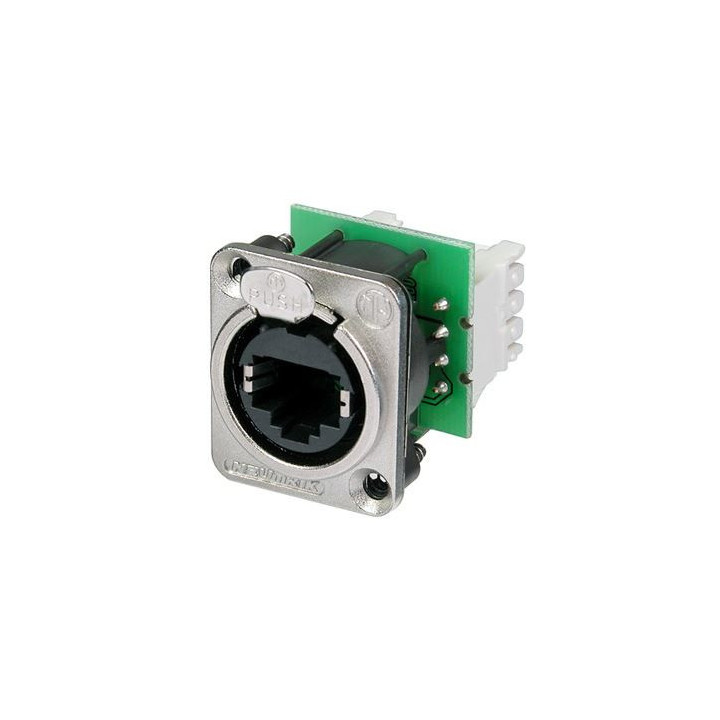

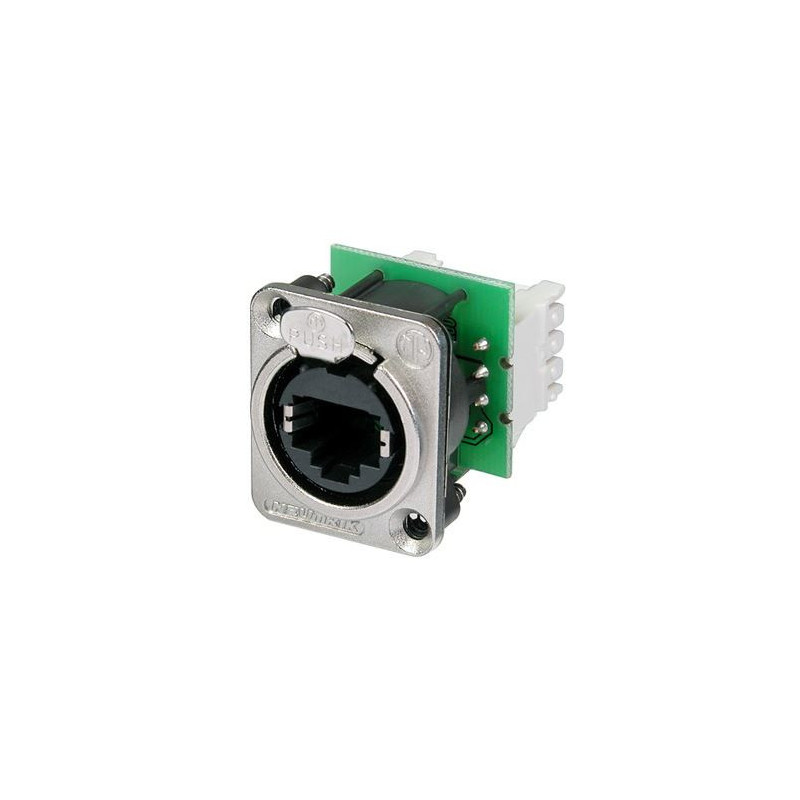

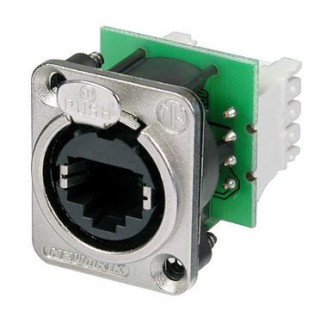

Contrik NE8FDV-Y110 - Panel mount receptacle with IDC 110 punch down terminals
1030267
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included
Visuals Price
11.83 CHF
VAT excl.
12.79 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik panel socket with 110 IDC punch-down contacts
Panel socket with 110 IDC punch-down contacts, D-shaped metal flange with latch lock, maximum panel thickness 4 mm, mounting screws included.
The etherCON series is a reinforced, lockable RJ45 connector system, optimised for professional audio, video and lighting network applications. The chassis sockets are designed to fit standard entertainment industry panels.
The D-series offers the most robust design in the etherCON range and is perfectly suited for panel mounting and the installation market.
Not compatible with the CAT6 cable connector NE8MC6-MO and NKE6S cables.
Features
- Compatible with NE8MC or any standard RJ45 plug
- Approved latch locking system
- Can be mounted from the front or rear of the panel
- Cat 5e compliant according to TIA / EIA 568B and ISO / IEC 11801 standards
- Selectable panel earth connection
- Easy and quick mounting using 110-type punch-down contacts
Panel socket with 110 IDC punch-down contacts, D-shaped metal flange with latch lock, maximum panel thickness 4 mm, mounting screws included.
The etherCON series is a reinforced, lockable RJ45 connector system, optimised for professional audio, video and lighting network applications. The chassis sockets are designed to fit standard entertainment industry panels.
The D-series offers the most robust design in the etherCON range and is perfectly suited for panel mounting and the installation market.
Not compatible with the CAT6 cable connector NE8MC6-MO and NKE6S cables.
Features
- Compatible with NE8MC or any standard RJ45 plug
- Approved latch locking system
- Can be mounted from the front or rear of the panel
- Cat 5e compliant according to TIA / EIA 568B and ISO / IEC 11801 standards
- Selectable panel earth connection
- Easy and quick mounting using 110-type punch-down contacts
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included
