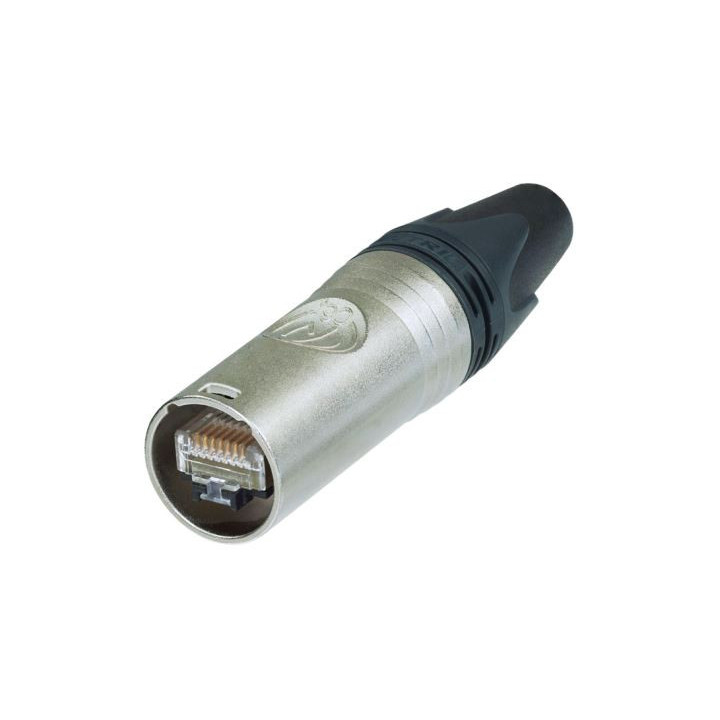

Contrik NE8MX6 - etherCON CAT6A cable connector self-termination

1030280
Contrik NE8MX6 - etherCON CAT6A cable connector self-termination
Contrik NE8MX6 - etherCON CAT6A cable connector self-termination
etherCON CAT6A cable connector self-termination, nickel plating
... learn more
Visuals Price
19.93 CHF VAT excl.

21.54 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Contrik EtherCON CAT6A Self-Terminating Cable Connector
Self-terminating etherCON CAT6A cable connector, for insulation diameter > 1.1 mm, nickel-plated finish.
The NE8MX6 assembly consists of a cable plug carrier offering a robust metal housing, a proven Neutrik chuck-type cable clamp and a CAT6A compliant RJ45 plug. The assembly is suitable for a cable diameter range from 7 mm to 9.5 mm and a wire cross-section of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).
Not compatible with CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is ≤ 1.1 mm, please refer to NE8MX6-T.
Features
- Reinforced connector compliant with CAT6A components according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE+ compatible according to 802.3at Type2
- IP65 protection when coupled with NE8FDX-P6-W or NE8FDX-Y6-W
- Robust latch locking system proven millions of times
- Compatible with existing etherCON CAT5 range
- Unique Neutrik chuck-type cable clamp
etherCON CAT6A cable connector self-termination, nickel plating
