KMU-200 has two video modes. Horizontal video mode: video switching, video recording, live streaming, audio mixing, camera control. Portrait video mode: video switching, video recording, audio mixing, camera control, professional portrait video live streaming software.
... learn more
Visuals Price
4,702.80 CHF VAT excl.

5,083.73 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Datavideo all-in-one: Video Switching, Streaming, Audio Mixing and Camera Control
Selection of two video modes: Horizontal Video or Vertical Video
Horizontal video mode: video switching, video recording, live streaming, audio mixing, camera control
Vertical video mode: video switching, video recording, audio mixing, camera control, professional live video broadcasting software in portrait mode.
Support for 4K UHD resolution input
With a 4K video input, the KMU-200 can capture up to 4 sets of Full HD video. The cropped 4K video images provide you with live video production as with a 4-camera EFP workflow.

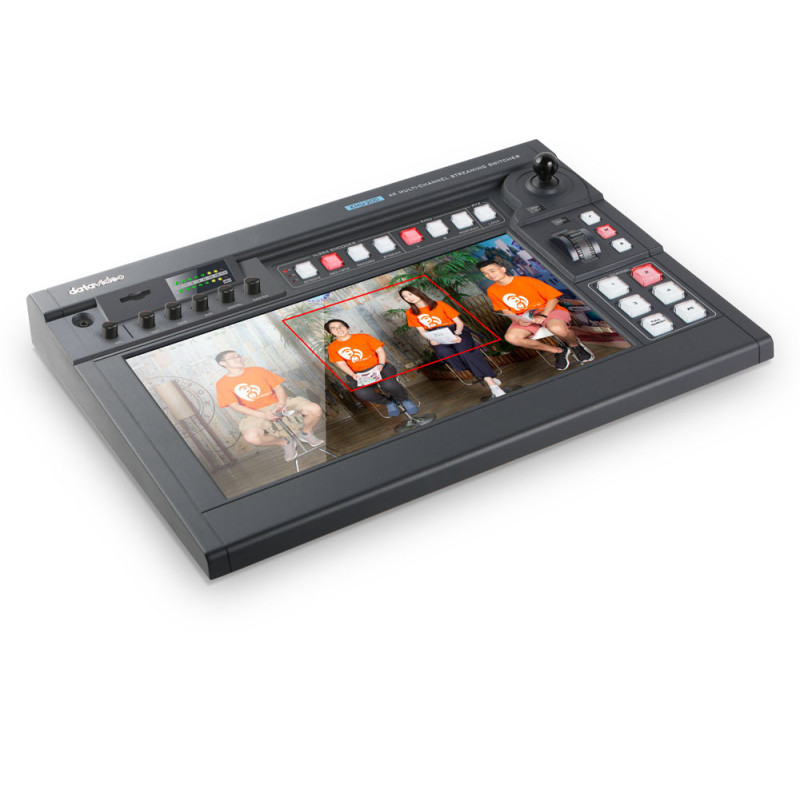

Easy operation via touchscreen with your finger
The 14-inch touchscreen allows the user to specify screen switching through gestures. Additionally, the joystick and rotary button can also be used to control the KMU-200's screen selection.
Six buttons for live switching
It's easy to switch between the four frame selection screens on the right side of the screen, full screen, or computer output button. Frame selection can be preset in advance to facilitate live video production.

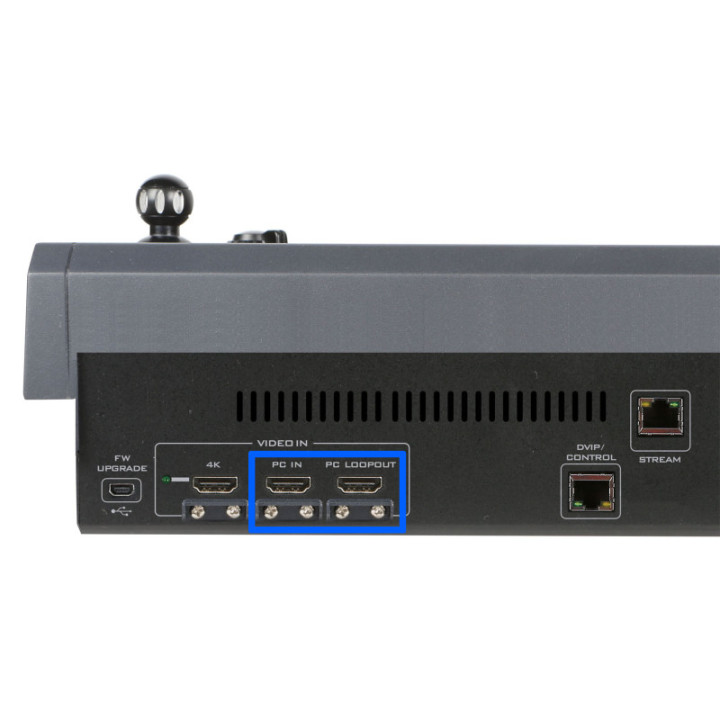

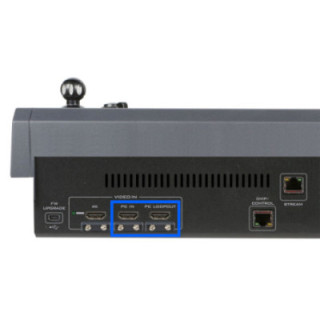

Additional PC input for presenter's presentation
With the additional HDMI input and output, the presenter can integrate their presentation and redirect it to the director's monitor.
USB plug and play transfer
With the external USB CAP-2 video capture box, the user can connect the KMU-200 to a mobile phone or laptop for live video or post-production editing.

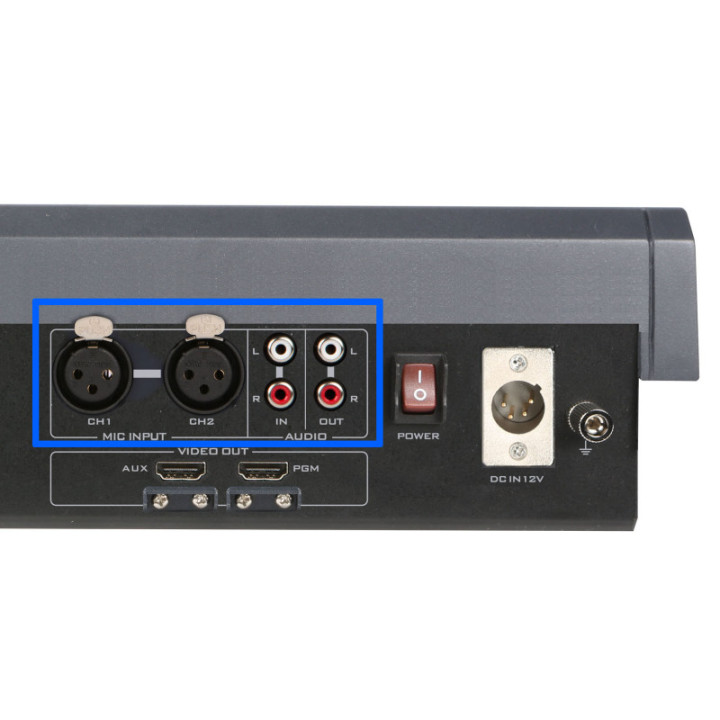

XLR and TRS combo jack
Supports a four-channel audio mixer and built-in audio source.
Direct streaming to live streaming platform
The built-in H.264 encoder allows instant live streaming to any streaming platform.
Live streaming in vertical video mode
The KMU-200's vertical mode video output can be connected to a smartphone or notebook via the external UVC CAP-2 capture box to easily achieve live broadcasting or post-production editing in portrait mode.
Live streaming in vertical video mode is suitable for watching videos directly on smartphones without worrying about the smartphone's screen location or settings. This feature is brilliant for users, particularly in the current atmosphere where many people watch videos on their smartphones.
Live streaming in landscape mode
Live streaming in landscape mode can be combined with the KMU-200's built-in network streaming function without any external device connected. The video can be successfully streamed to streaming platforms in landscape mode. Additionally, the streamed video can be safely saved on the SD card.
Live streaming in landscape mode can be successfully achieved with a single KMU-200 unit. This can greatly reduce the installations and procedures needed to easily achieve professional live video production.




Specifications



Video standard

UHD & HD

Video format

Input:

3840x2160p 23.98/24/25/29.97/30/50/59.94/60

1080p 50/59.94/60

Output:

1080p 50/59.94/60

720p 50/59.94/60

Video processing

4:4:4/ 4:2:2/ 4:2:0

Video input

1x HDMI 2.0

1x HDMI 1.4 with Loop through

Video output

2x HDMI 1.4

Supported output video resolutions

1920 x 1080p 50/59.94/60

1280 x 720p 50/59.94/60

Multi-view output

N/A

Multi-view mode

N/A

Streaming encoding

H.264/AVC, Main/High Profile

Video streaming bitrate

Recording only: Up to 16Mbps (1080p50/60)
Streaming only: Up to 10Mbps (1080p50/60), dual stream
Recording+Streaming: 36Mbps (1080p50/60)

Streaming video bitrate mode

CBR

Streaming audio mode

Stereo/Mono

Streaming audio bitrate

Stereo: 64~384Kbps
Mono: 32~192Kbps

Streaming protocols

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT

Network interface

1x RJ45 (Ethernet 10/100Mbps)

Recording storage media

SD card

Recording storage file system

MP4

Built-in audio mixer

Yes, 4 channels

Audio input

2x XLR(Mic)
2x RCA

Audio output

2x unbalanced RCA

Audio sampling

N/A

Reference input

N/A

Control interface

N/A

Preview display

14" capacitive touch LCD screen

Controller

N/A

Dimensions (LxWxH)

438 x 331 x 114 mm

Weight

4.3 kg

Power supply

DC 12V, 52W

Operating temperature range

0~40 °C
