Kaiser - VP 9005 B&W enlarger SYSTEM-V

Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V

1008010
4001072045407
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
Kaiser K4540 - VP 9005 B&W enlarger SYSTEM-V
B & W enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in.) and lenses up to 105 mm focal length. Compound negative carrier fitted with Anti-Newton glass on top and flat glass on bottom, additional format mask 6 x 7 cm. Focusing with additional fine drive. Height adjustment with weight compensation by a roll-off spring mechanism
... learn more
Visuals Price
1,548.36 CHF VAT excl.

1,673.78 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

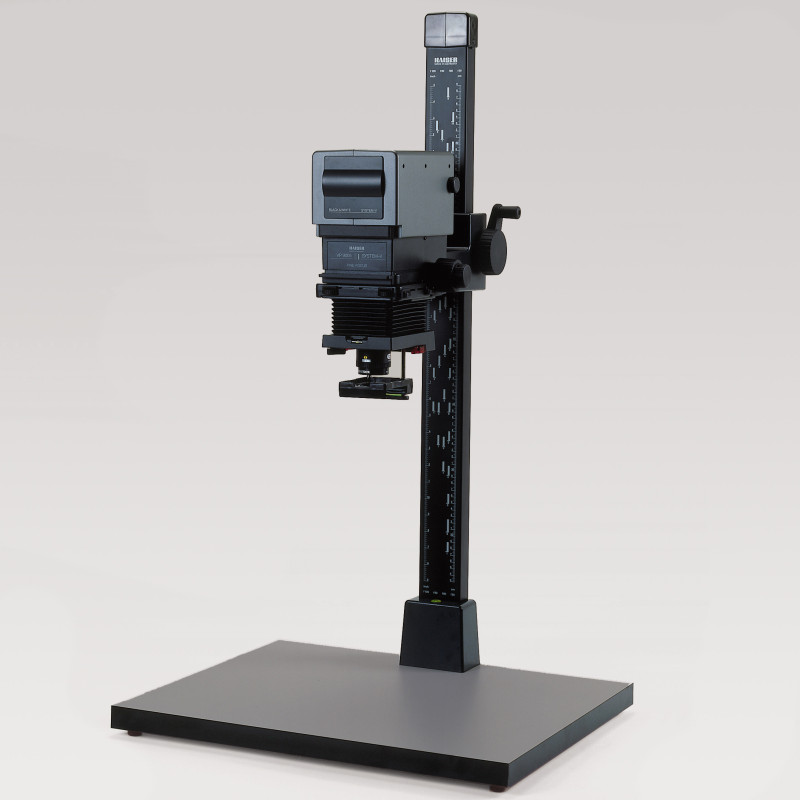

B&W Enlarger VP 9005 SYSTEM-V
Black and white enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in) and lenses up to 105 mm focal length.
Compound negative carrier equipped with anti-Newton glass on top and flat glass on bottom, additional 6 x 7 cm format mask.

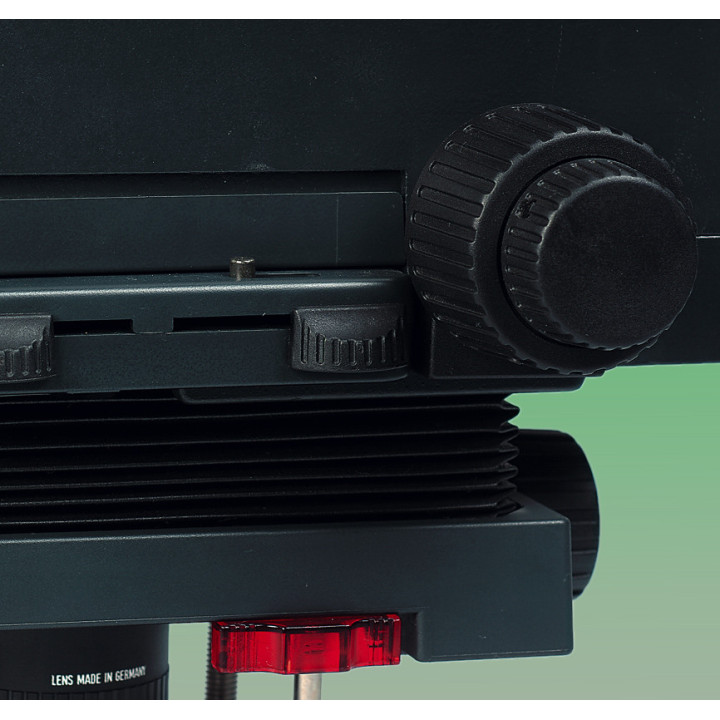

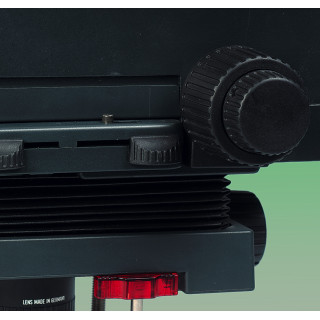

Focusing with additional fine drive. Height adjustment with weight compensation by unwinding spring mechanism.
Filter holder for square filters and framed Multigrade® filters, orientable and height-adjustable, with diffusing plate for overall measurement.
Base plate (W x D x H): approx. 600 x 500 x 32 mm (23.6 x 19.7 x 1.3 in)
B&W Enlargers SYSTEM-V
General features:
Lamp head with 75W opal lamp, adjustable lamp. Interchangeable double condenser system. Filter drawer for Multigrade® filter for example.
Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and positioning pins. Lens board with spirit level and red filter, tiltable for distortion correction according to Scheimpflug principle. Quick-release mounting for lenses. Height adjustment by crank-operated friction drive on plastic bearings. Wall and floor projection possible.
Large vibration-resistant column in embossed aluminium tube, with matt black anodised surface, scales in cm and inches and markings for enlargement scales. Matt grey laminated base plate with individually height-adjustable feet. Spirit level on column base.
Technical specifications:
- Lamp: 75W opal lamp, E27 base
- Cable: approx. 2.50 m (8 ft 2 in)
- Filter drawer: 85 x 85 mm (3.3 x 3.3 in)
- Column (H x W x D): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in)
- Distance between optical axis and column base: approx. 220 mm (8.7 in)
Can be converted into a reproduction stand.
Package contents: Includes compound negative carrier, lamp and dust cover, without lens.
(Replacement lamp: 4356)
B & W enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in.) and lenses up to 105 mm focal length. Compound negative carrier fitted with Anti-Newton glass on top and flat glass on bottom, additional format mask 6 x 7 cm. Focusing with additional fine drive. Height adjustment with weight compensation by a roll-off spring mechanism
