Kaiser - R2N CP Image Capturing Set
Kaiser K5304 - R2N CP Image Capturing Set
1008056
4001072053044
Portable copy stand with RB 218N HF Lighting Unit (5464). Non-reflective matt grey baseboard with printed fine grid and cm/inch scale. Matt-black anodised aluminium section tube column with cm/inch scale
Visuals Price
692.16 CHF
VAT excl.
748.22 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
R2N CP image capture kit
Portable reproduction column with RB 218N HF lighting unit (5464).

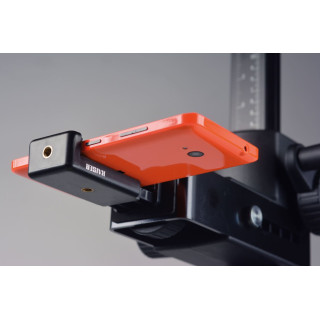

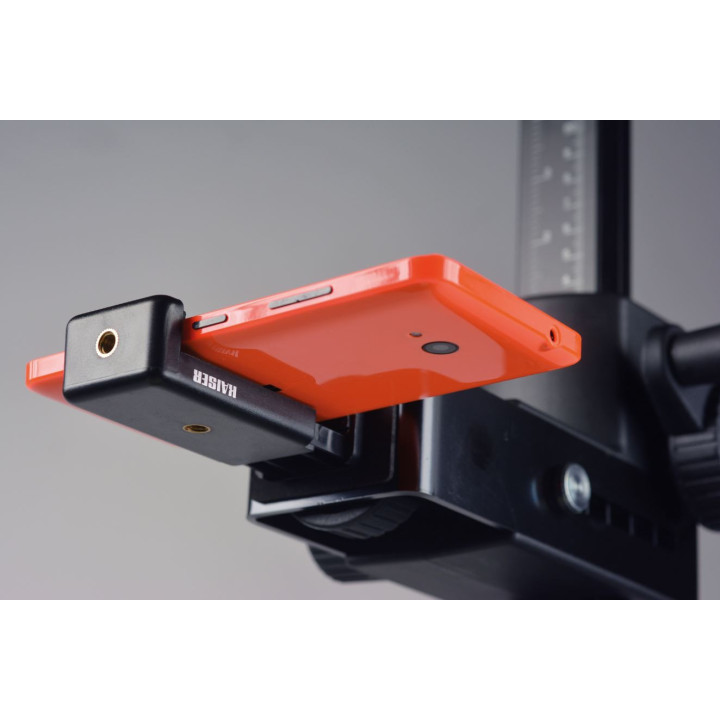

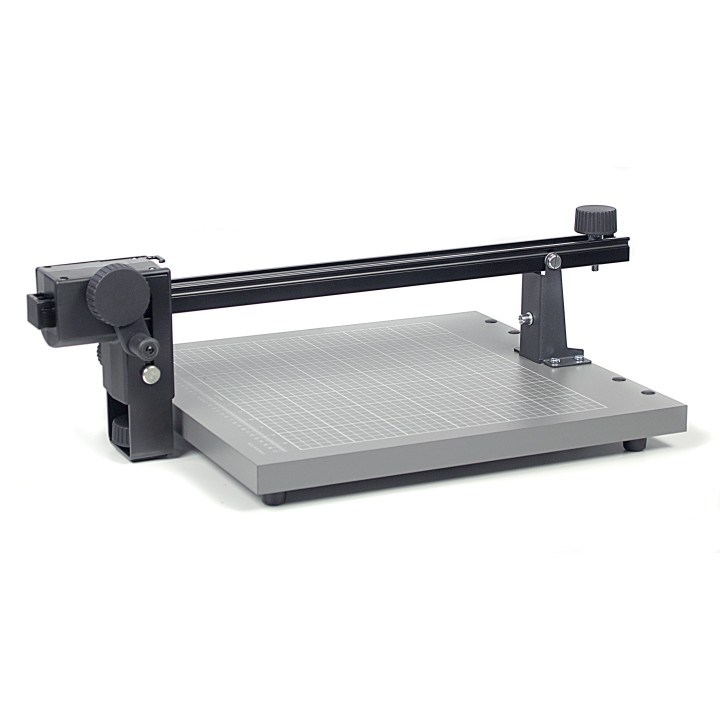

Matt grey non-reflective baseboard with fine printed grid and cm/inch scale. Column in matt black anodised aluminium tube with cm/inch scale. Height adjustment by crank with friction drive on plastic bearings. With horizontally adjustable camera arm to change the distance from the column, moves approx. 7 cm (2.7 inches) forwards and backwards. 1/4"" mounting thread. The column folds down onto the baseboard.
Technical specifications:
- Baseboard (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 inches)
- Column height: approx. 60 cm (23.6 inches)
- Maximum load: 1.5 kg (3.3 lb)

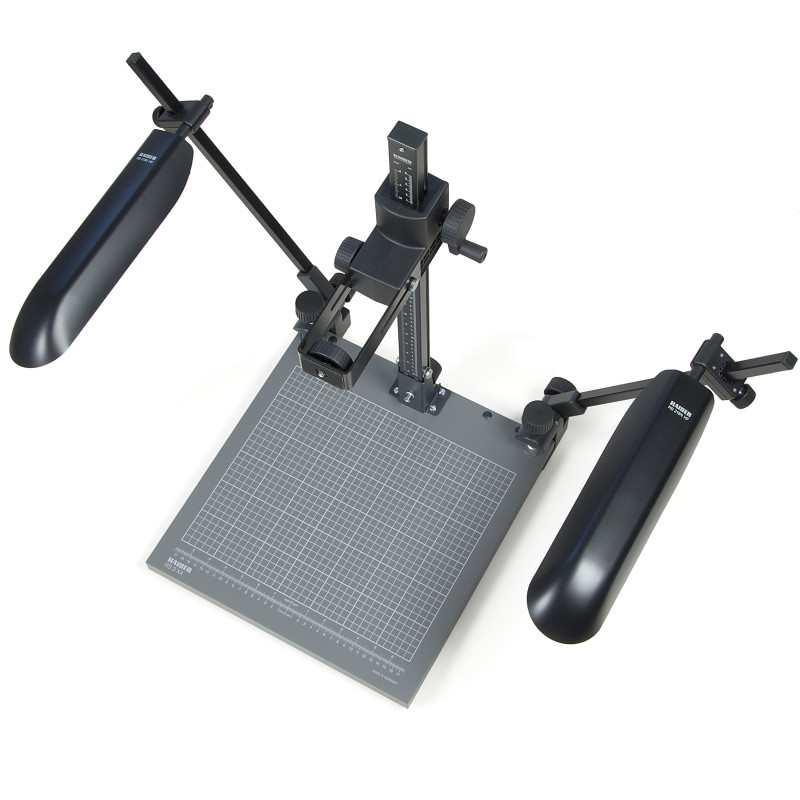

RB 218N HF lighting unit with fully electronic high-frequency operating system (approx. 40 kHz) for instant ignition and flicker-free operation. Two small lightbanks, each equipped with a cold-light fluorescent lamp, tiltable and height-adjustable. Angle of vertical arms adjustable via a lockable joint. Mounted with solid cast-iron clamping bases. Clamping width 48 mm (1.9 inches)
Technical specifications:
- Lamps: 2 x 18 watts
- Colour temperature: 5400 K
- CRI: 90-100
- Replacement lamp: 5458

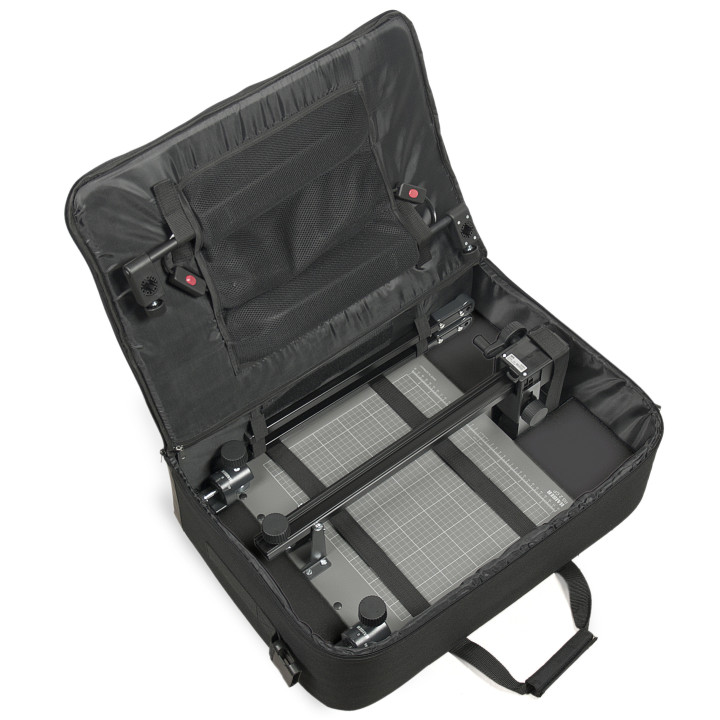

Supplied in a robust carrying case measuring 67 x 47 x 23 cm (26.4 x 18.5 x 9.0 inches) with handle and shoulder strap.
