Kinoflo - FreeStyle 31 LED DMX Kit, Univ w/ Flight Case

Name: Kinoflo KIT-F31U - FreeStyle 31 LED DMX Kit, Univ w/ Flight Case
Brand: Kinoflo
SKU: 1001568
Price: 5085.11 CHF
Availability: BackOrder

Kinoflo KIT-F31U - FreeStyle 31 LED DMX Kit, Univ w/ Flight Case

SKU 1001568

FreeStyle 31 LED DMX Kit, Univ w/ Flight Case

... learn more

Visuals Price

5,085.11 CHF VAT excl.

5,497.00 CHF Inc. VAT

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Description

Description

Kinoflo FreeStyle/GT 31 LED DMX Kit, universal with flight case

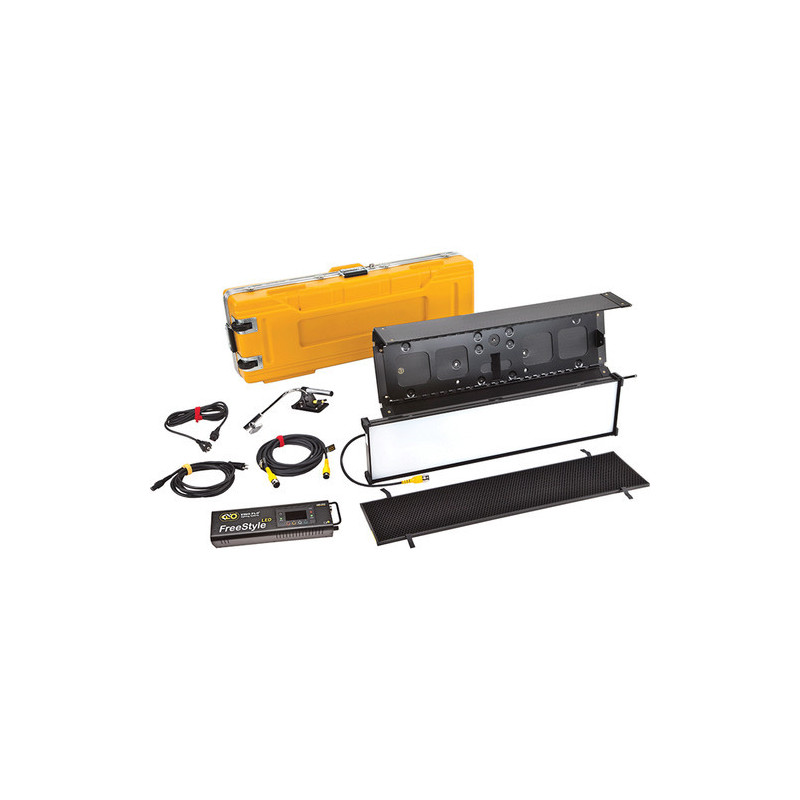

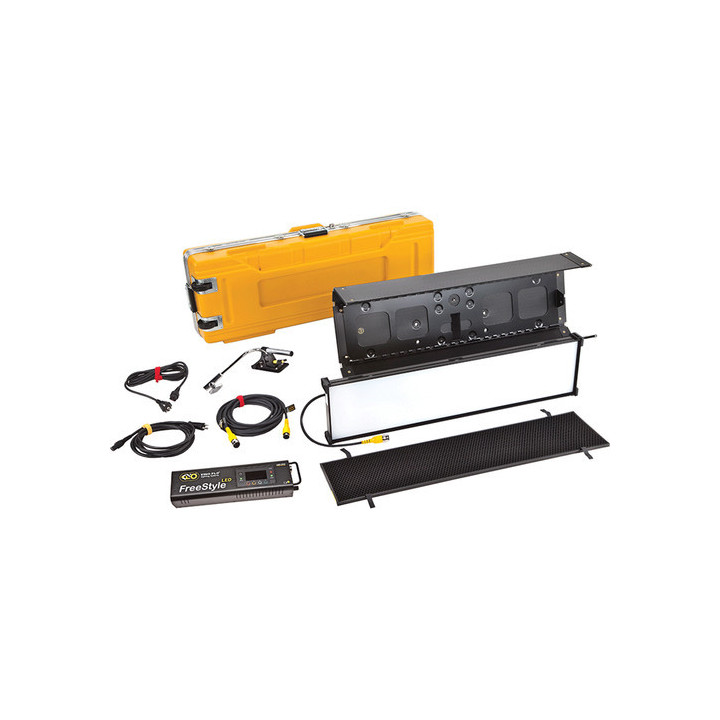

This kit includes:

- 1 FreeStyle/GT 31 LED fixture (CFX-F31)
- 1 FreeStyle 151 LED DMX controller (LED-151X)
- 1 MTP-BG41 mount with Baby receiver (16 mm) (MTP-BG41)
- 1 extension cable, 7.6 m (X12-25)
- 1 honeycomb grid, 90°
- 1 flight case (KAS-DL30)

FreeStyle/GT 31 LED Fixture

The Kino Flo FreeStyle 31 LED fixture is an LED lamp head that forms part of a system or kit including the required LED Select 150 DMX controller. The fixture measures 103 x 27 x 9.0 cm with 16.5 cm barndoors and weighs 7.0 kg - light enough to be handheld. The fixture is supplied with a removable 90-degree honeycomb grid. In fact, the LED panel can also be removed from its housing for mounting options. The fixture operates on 100 to 240 V AC power via its optional controller.
The FreeStyle 31 requires a head cable and controller (sold separately) to operate. The LED-150X controller offers a complete set of 6 channels of control functions and operating options. It has 2 menus for colour and a "white menu" for dimming, Kelvin temperature and green/magenta settings. Using one of the colour menus extends the Kelvin range from a warm 2500 to an icy blue 9900 K. The second colour menu allows working with RGB, a real advantage when using colour wheels or RGB presets. The fourth channel (called the Gel channel) has presets for over 100 well-known temperature modification gels, including blue/green screen, sodium vapour and mercury vapour. A fifth channel allows hue adjustments across a 360-degree range like a colour wheel, whilst the 6th Saturation channel controls the intensity of the chosen colour. The required controller has built-in DMX for making adjustments remotely from a console and is also compatible with Lumen Radio wireless DMX. The LED-150X controller operates on 100 to 240 V AC power for worldwide use. It comes with a 2-pin Euro plug but can be used with any wall socket with the appropriate and inexpensive plug adapter.

Photometry Foot-candles
- 510 fc at 0.6 m
- 161 fc at 1.2 m
- 75 fc at 1.8 m
- 43 fc at 2.4 m
- 28 fc at 3.0 m

Lux
- 7270 lux at 0.5 m
- 2470 lux at 1.0 m
- 1190 lux at 1.5 m
- 683 lux at 2.0 m
- 445 lux at 2.5 m

Advantages of using a separately purchased LED controller

- Kelvin presets
- Adjustable colour temperature control between 2700-6500 K
- Extended colour range of 2500-9900 K
- Green/magenta control
- Hue angle and saturation settings
- RGB control
- Works with applications with RGB presets or predetermined colour wheels
- Ability to use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No colour shift during dimming
- True colour with high colour rendering index (CRI 95)
- Universal input 100-240 V AC or 24 V DC
- Energy efficient, low power consumption
- Flicker-free operation, completely silent
- Full integrated dimming and DMX
- Wireless DMX (Lumen Radio)
- Self-terminating DMX
- Remote fixture with integrated barndoors
- Removable LED panel with centre mount and moulded angle brackets
- The fixture includes a removable 90° honeycomb grid
- Honeycomb grid also available in 60° as an accessory
- Removable centre mount
- Lightweight, slim profile
- Stand mountable, light enough to be handheld
- The separately purchased controller mounts to the fixture or operates remotely with an extension cable

	Specifications
	Colour range	With required controller: Standard range: 2700 to 6500 K Extended range: 2500 to 9900 K
	CRI	95
	Operating voltage	100 to 240 V AC, 50/60 Hz (with optional controller)
	Dimming	100 to 0% (with optional controller)
	Mount	3/8" (9.5 mm) stud
	Dimensions	103 x 27 x 9.0 cm with 16.5 cm barndoors
	Weight	7.0 kg

FreeStyle 151 LED DMX Controller

The Kino Flo LED controller for Select 21 and 31 fixtures is a detachable controller for LED Select 21 or Select 31 heads. The controller can be mounted to the rear of the lighting head or used remotely up to 7.6 m with an optional extension cable. It allows the fixture to produce a constant light level over a variable range of 2500 to 9900 K in the Colour menu. The White menu has dimming, Kelvin and green/magenta adjustment channels. The Colour menu provides access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels. The Hue Angle and Saturation channels work like a traditional colour wheel with a 360-degree colour range and choice of colour intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and adjustments. This wired DMX controller is complemented by wireless DMX, provided by Lumen Radio. It can accept worldwide AC mains power and can also be powered by DC via a 3-pin XLR connector.

Features:

- Adjustable Kelvin 2500 K-9900 K
- Colour-stable dimming
- Green/magenta control
- Adjustment of any colour via hue angle and saturation control
- Kino Flo presets and gel presets
- Individual red, green, blue (RGB) control
- Manual and DMX dimming with self-termination
- Wireless DMX (Lumen Radio)
- Universal input 100 V AC-240 V AC and 24 V DC

	Specifications
	Power supply	V AC: 100 to 240 V @ 50/60 Hz, 150 W V DC: 18 to 36 V, 150 W 1.3 A @ 120 V AC, 7.0 A at 24 V DC
	Colour temperature	2500 to 9900 K in the Colour menu
	Dimming	100 - 1%
	Dimensions	38 x 11.5 x 8.0 cm
	Weight	2.0 kg

MTP-BG41 Mount with Baby Receiver (16 mm) Make transporting and handling your fixture easier with this KinoGrip K41 twist-lock mount with 5/8" Baby receiver from Kino Flo. Compatible with fixtures equipped with twist-lock mounting plates, this mount adds a handle for improved lighting manoeuvrability and a wing button for quick adjustments and locking the fixture in position. Extension Cable, 7.6 m The Kino Flo 150 7.6 m extension cable for LED Select system allows increasing the distance between the LED Select head and its ballast. Up to 2 extensions can be connected for a total of 15.2 m. Flight case for Diva 30 fixture and accessories (yellow) Store, protect and transport your Diva 30 fixture, controller, 7.6 m extension cable, mount, stand and more with the yellow flight case for Diva 30 fixture and accessories from Kino Flo. The flight case features a hard shell for impact protection and latch closures for easy access to equipment. Carry the flight case using the handles or roll it on its two integrated wheels.
