Kinoflo - Image L80 LED DMX Pole-Op, Univ

Name: Kinoflo IMG-L80PU - Image L80 LED DMX Pole-Op, Univ
Brand: Kinoflo
SKU: 1014118
Price: 5877.89 CHF
Availability: BackOrder

Kinoflo IMG-L80PU - Image L80 LED DMX Pole-Op, Univ

SKU 1014118

Kinoflo IMG-L80PU - Image L80 LED DMX Pole-Op, Univ

Image L80 LED DMX Pole-Op, Univ

... learn more

Visuals Price

5,877.89 CHF VAT excl.

6,354.00 CHF Inc. VAT

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Required accessories
Description

Description

Kinoflo Image L80 LED DMX Pole-Op, Univ

Flexibility and extensive control options are key to the production of the Image L80 DMX LED Panel with Pole-Op Mount from Kino Flo. The 54 x 28 x 6.5" panel employs four menus with several channels that have features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1 to 100% dimming, colour control from 2700 to 6500K, and Green/Magenta control. There are two colour menus. In the Gels/Hue menu, the Kelvin range is extended to 2500 to 9900K.

Among the channels is one called Gel that offers multiple presets for light conditions, such as mercury-vapour, and 100 often-used gel filters. A channel called Hue Angle (Hue) and another called Saturation (Sat) are also included in the Gel menu and function together like a 360-degree colour wheel making over two million colour combinations available.

The second colour menu provides RGB (Red, Green, Blue) control, permitting a user-selected combination to obtain any colour in the visible spectrum. The RGB menu also allows you to dial in specific gel RGB values or control colours from a DMX console. Finally, there's an FX menu that creates effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Within each effect there are presets that vary the parameters or change the rate of the chosen effect.

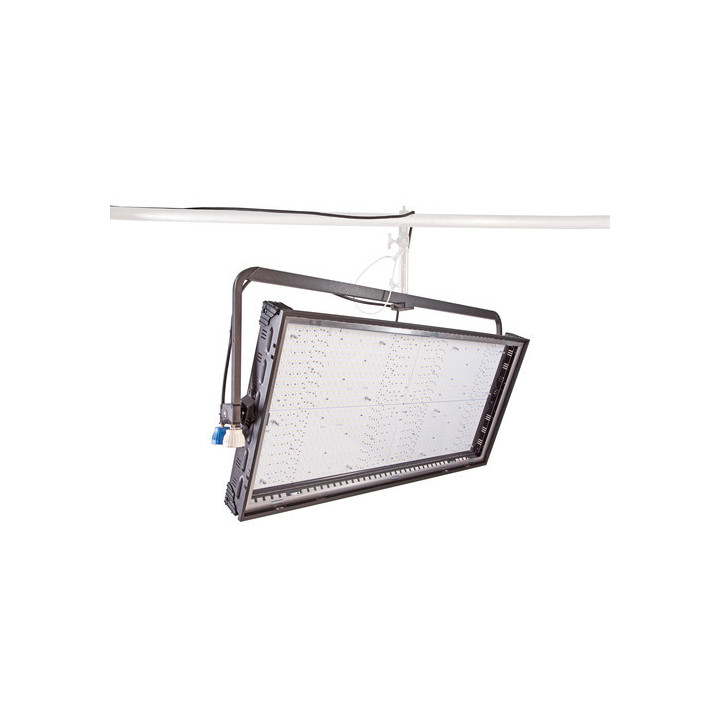

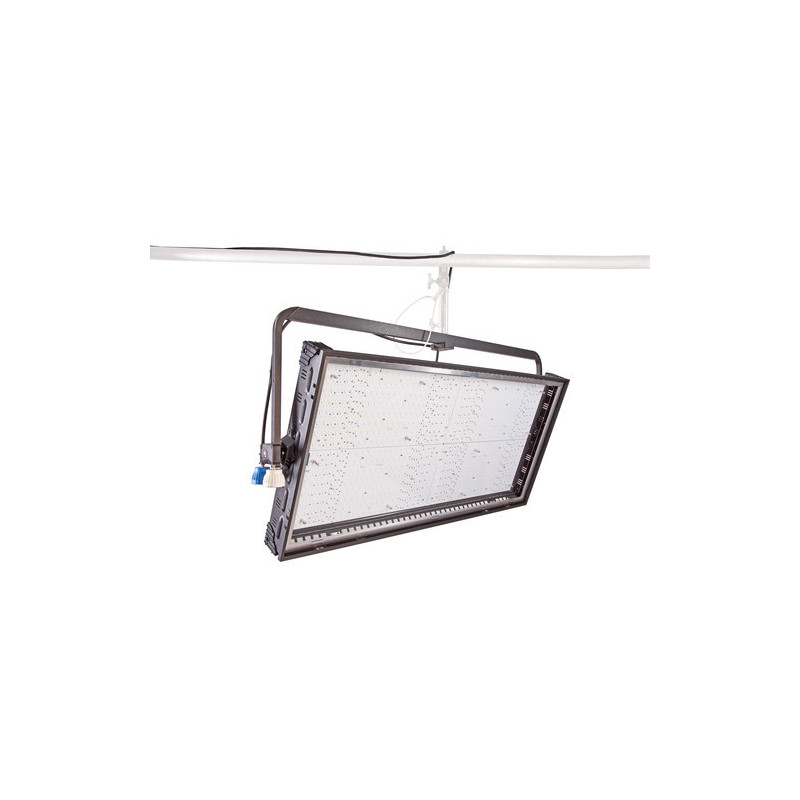

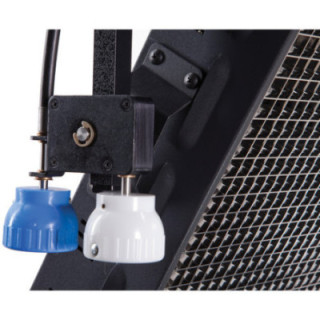

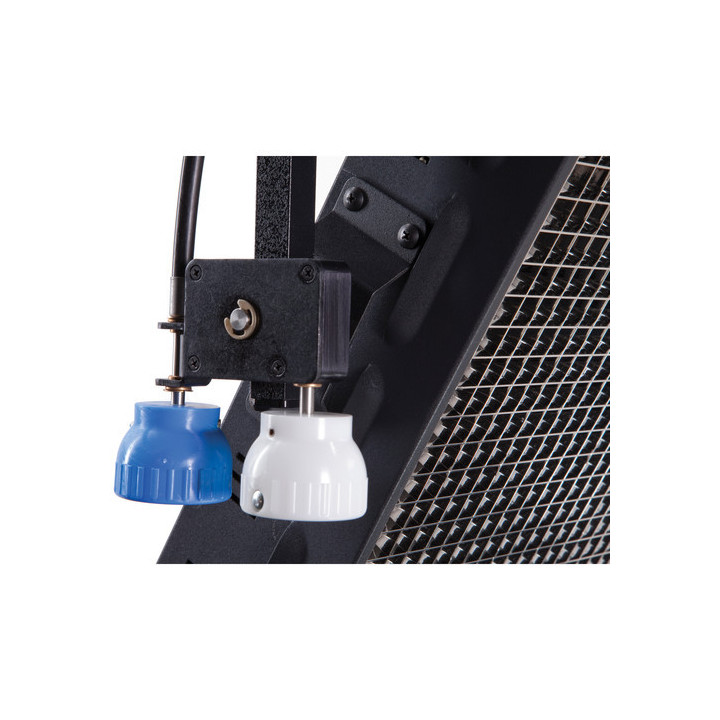

The Image L80 is ready for worldwide use thanks to its 100 to 240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its beam angle and limit spill light, providing directional control for selective lighting. This version of the light has a Pole Operated Mount for hanging overhead from a grid or pipe. Pan and tilt adjustments are made from below using a long pole.

Benefits

- Kelvin presets

- Dial-in colour temperature control between 2700 and 6500K

- Extended colour palette from 2500 to 9900K

- Green/magenta control

- Hue angle and saturation adjustments

- RGB control

- FX control

- Works with apps with predetermined RGB presets or colour wheels

- Can use preset buttons to store custom Kelvin settings

- Light levels do not change when selecting Kelvin settings

- No colour shift whilst dimming

- Colour-correct with a high CRI/TLCI rating

- Universal power input: 100 to 240 VAC

- Energy efficient, draws 2A at 120 VAC

- Flicker-free, quiet operation

- Full range onboard and DMX dimming

- DMX wireless link: Lumen Radio

- DMX auto terminate

- Metal alloy fixture includes removable gel frame, louver, and cardholders

- Slim 6.5" profile

- Mounts to stand or can hang easily from a grid

	Specifications
	Light Fixture
	Colour Temperature	2500 to 9900K
	Colour Accuracy Standard	CRI 96 TLCI 98
	Dimming	Yes, 1 to 100% (Continuous)
	Display	LCD
	Housing Material	Aluminium
	Photometrics	68 fc / 731.7 lux at 12' / 3.65 m
	Expected Lamp Life	50000 Hours
	Fixture Dimensions	54.0 x 28.0 x 6.5" / 137.2 x 71.1 x 16.5 cm
	Fixture Weight	41.5 lb / 18.82 kg (Including Yoke)
	Connectors
	Battery Plate	None
	Power Input Connector	IEC
	DMX Connector	5-Pin XLR
	Mounting
	Fixture Mount	None
	Mount via Included Adapter	1-1/8" Stud
	Accessory Mount	None
	Yoke
	Yoke Type	Pole Operated
	Remote Operation
	Remote Control Type	DMX
	Power
	AC Input Power	100 to 240 VAC, 50 / 60 Hz
	Power Source	AC Adapter
	Max Power Consumption	400 W
