Kinoflo - FreeStyle T24 DMX Kit w/ Soft Case, Univ
Kinoflo KIT-FT24BU - FreeStyle T24 DMX Kit w/ Soft Case, Univ
1021589
FreeStyle T24 DMX Kit w/ Soft Case, Univ
Visuals Price
3,605.92 CHF
VAT excl.
3,898.00 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Kinoflo FreeStyle T24 DMX kit with soft case, univ

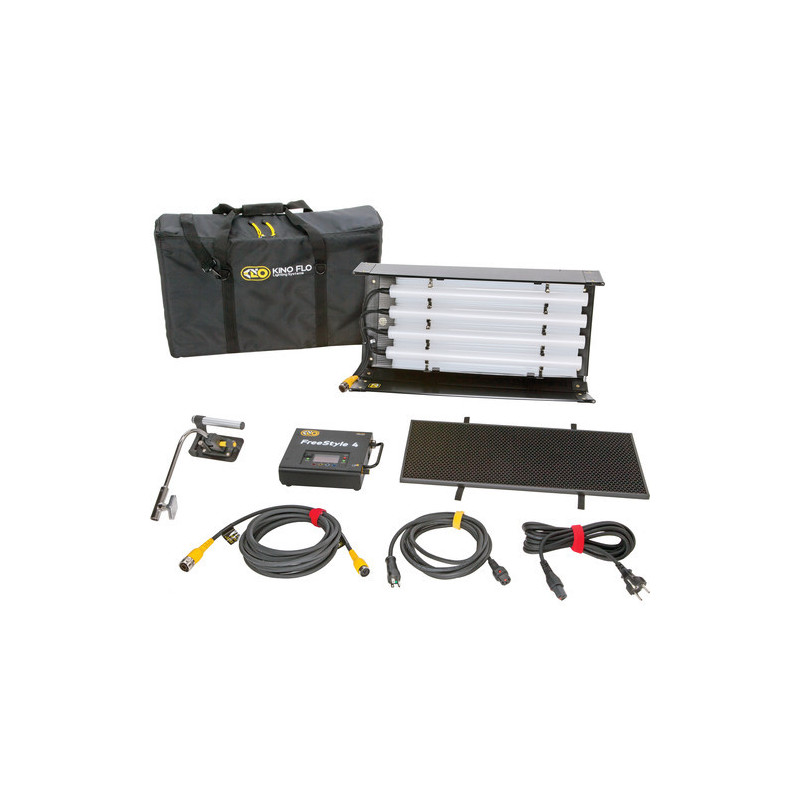

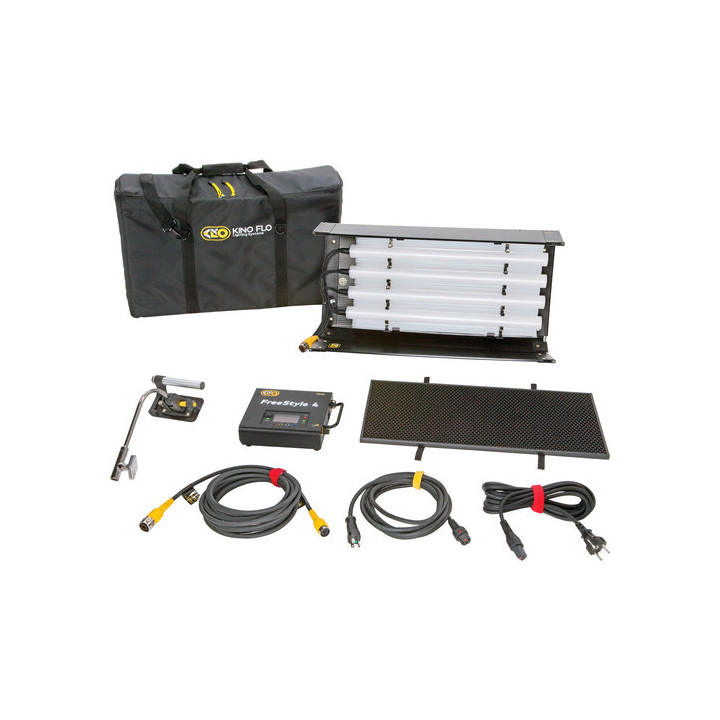

This Kino Flo FreeStyle T24 universal LED DMX kit with soft case includes the FreeStyle T24 LED fixture and the FreeStyle 120 LED DMX controller. It uses four 2' LED tubes and also includes the KinoGrip K41 mount with Baby receiver, a 25' head extension cable, a US power cable, a 2-pin European power cable and a soft case.
Slim and compact, the FreeStyle T24 DMX system offers the same LED Color Science technology found in all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be held by hand with the included KinoGrip 41K mount, which also enables mounting via its 3/8" spigot. Additionally, the rear of the fixture is equipped with a removable threaded centre mount, which can be adapted to work with multiple Kino Flo mounting adapters. The FreeStyle DMX controller features four individual modes: White, Gel/Hue, RGB Colour and FX. White mode offers 1 to 100% dimming and an adjustable range from 2700 to 6500K. In Gel/Hue mode, the range is extended from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels. RGB Colour mode allows individual control of the red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.

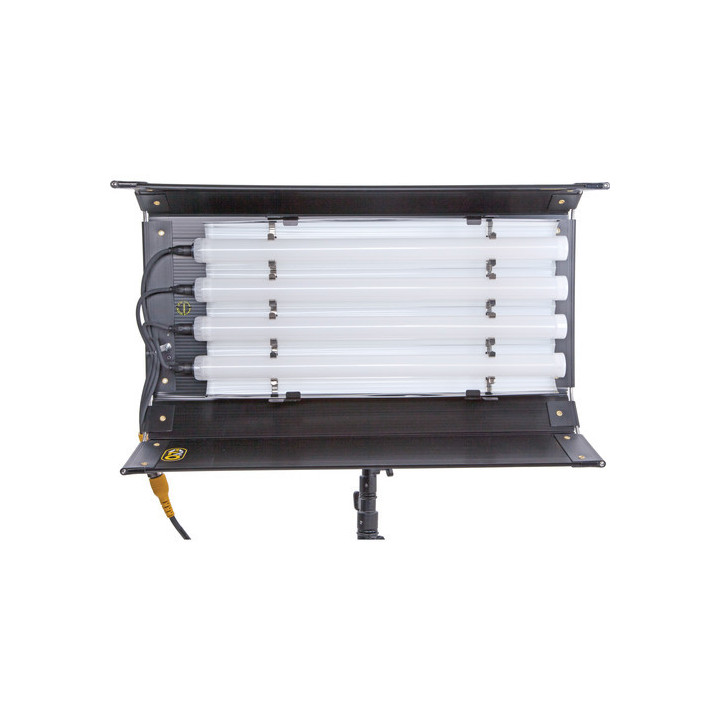

Kino Flo FreeStyle T24 LED Fixture
Slim and compact, the Kino Flo FreeStyle T24 LED fixture offers the same LED Color Science technology found in all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be held by hand with a separately purchased KinoGrip 41K mount. For mounting on lighting stands, the rear of the fixture is equipped with a removable KinoGrip threaded centre mount, which can be adapted to work with multiple Kino Flo mounting adapters.
The FreeStyle T24 LED fixture requires separately purchased LED tubes, a head cable and a DMX controller, and the controller features four individual modes: White, Gel/Hue, RGB Colour and FX. White mode offers 1 to 100% dimming and an adjustable range from 2700 to 6500K. In Gel/Hue mode, the range is extended from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels. RGB Colour mode allows individual control of the red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.
- Accepts four 2' LED tubes
- Adjustable colour temperature from 2500 to 9900K
- 1 to 100% dimming without colour drift
- Flicker-free and silent operation
- Gel presets include blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels
- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll
- Integrated full dimming and DMX
- Wireless DMX connection
Kino Flo FreeStyle 2' LED Tube
This Kino Flo FreeStyle 2' LED tube is compatible with the FreeStyle T24 LED fixture. The LED tube can operate inside the fixture or independently with just the cable harness. The LED tubes also have an aluminium rail on the back of the lamp that can be used as an access point for alternative mounting accessories.

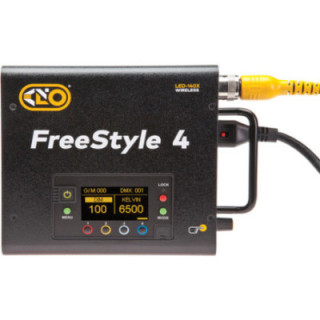

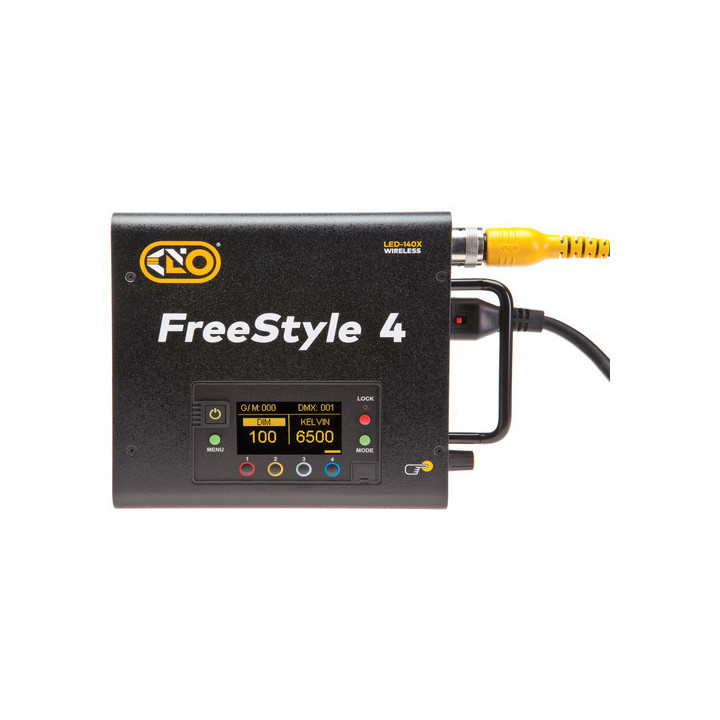

Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Tubes, (120 VAC cord)
This Kino Flo FreeStyle 140 LED DMX controller for FreeStyle T44 tubes is supplied with a power cord to operate on 120 VAC whilst controlling and powering up to four T44 LED tubes. It also enables dimming and green/magenta adjustment. Gel/Hue mode extends the colour temperature range from 2500 to 9900K whilst giving access to screen presets for keying and over 100 lighting gel looks.

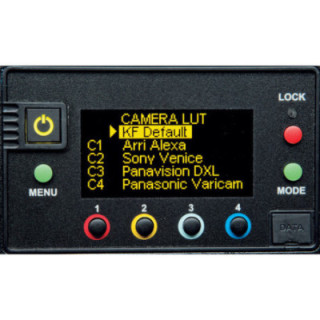

RGB mode provides access to individual red, green and blue LED fixtures for precise control. FX mode offers customisable presets. The integrated display shows dimming, colour temperature, green/magenta offset and DMX channel. Four integrated buttons are preconfigured for four colour temperature presets, but you can customise the button settings. The integrated control knob allows you to adjust dimming, colour temperature, green/magenta levels and DMX address. The controller supports both wired and wireless DMX, and it accepts worldwide power inputs as well as 18 to 36 VDC.
Menus
- White: dimming, adjustable colour temperature range from 2700K tungsten to 6500K daylight; green/magenta controls
- Gel/Hue: extended colour temperature range from 2500-9900K and access to Kino Flo presets such as blue and green screen, sodium vapour, mercury vapour as well as over 100 well-known lighting gels
- RGB: provides access to individual red, green and blue control. Works with applications having RGB presets or predetermined colour wheels
- FX: custom presets such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll with modifiable control settings. For example, the Lightning effect has a "Storm" and "Frankenstein" preset, but can modify the speed to offer additional variations
- The controller can dim your LED tubes from 100% brightness down to 1%
- The controller is supplied with a 120 VAC wireless Lumen Radio power cord, but can operate on 100 to 240 VAC at 50/60 Hz. You can also power the controller via a 24 VDC battery with 3-pin XLR connector.
Kino Flo KinoGrip K41 Screw Mount with Baby 5/8" Receiver
Facilitate transport and handling of your fixture with this Kino Flo KinoGrip K41 screw mount with Baby 5/8" receiver. Capable of working with fixtures equipped with screw-on coupling plates, this mount will add a handle for easier handling of the light, as well as a wing nut for making quick adjustments and locking the light in position.
Kino Flo 150 Extension Cable for Select LED System (25')
The Kino Flo 25' 150 extension cable for the Select LED system provides additional distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.
Kino Flo Soft Case for Select 20 Fixture and Accessories
Store, protect and transport your Select 20 fixture, its controller, its 25' extension cable, its mount and more with the Kino Flo black soft case for Select 20 fixture and accessories. The case is padded for impact protection and features a zip fastening for easy access to equipment. Carry the case with the double strap handles and hook-and-loop fabric connector.
|
|
Specifications |
|
|
Fixture |
|
|
|
Colour Temperature |
2500 to 9900K |
|
|
Dimming |
Yes, 1 to 100% |
|
|
Fixture Dimensions |
Fixture: 28.0 x 13.0 x 3.5" / 71.1 x 33.0 x 8.9 cm |
|
|
Fixture Weight |
8 lb / 3.63 kg |
|
|
Connectors |
|
|
|
Power Input Connector |
Proprietary |
|
|
DMX Connector |
5-Pin XLR |
|
|
Mounting |
|
|
|
Yoke Mount |
None |
|
|
Fixture Mount |
None |
|
|
Remote Operation |
|
|
|
Remote Control Type |
DMX, Proprietary Wireless |
|
|
Power Supply |
|
|
|
AC Power Input |
100 to 240 VAC, 50 / 60 Hz |
|
|
Kino Flo FreeStyle 2' LED Tube Specifications |
||
|
Length |
2' / 61 cm |
|
|
FreeStyle 140 LED DMX Controller for FreeStyle T44 Tubes, (120 VAC cord) |
||
|
Connections |
Power AC Input: IEC Connector DC Input: 3-Pin XLR DMX Input and Output: 5-Pin XLR (male and female) USB: Mini-B |
|
|
Dimming Range |
Brightness from 100 to 1% |
|
|
Power Supply |
Voltage AC: 120 to 240 VAC, 50/60 Hz DC: 18 to 36 VDC, 150 W Power Consumption AC: 1.25 A @ 120 VAC DC: 6.25 A @ 24 VDC Fuse 3.15 A/250 V |
|
|
Dimensions |
9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm |
|
|
Weight |
4.5 lb / 2.04 kg |
|
|
Kino Grip K41 Screw Mount with Baby 5/8" Receiver |
||
|
Mount |
Baby 5/8" / 16 mm Receiver |
|
|
Soft Case for Select 20 Fixture and Accessories |
||
|
Closure Type |
Zip |
|
|
Transport Options |
Top Handle |
|
|
Construction Material |
Nylon |
|
|
External Dimensions (L x H x D) |
31 x 7.5 x 18" / 79 x 19 x 46 cm |
|
|
Weight |
5 lb / 2.3 kg |
|
