Kinoflo - FreeStyle T24 DMX Kit w/ Travel Case, Univ

Name: Kinoflo KIT-FT24U - FreeStyle T24 DMX Kit w/ Travel Case, Univ
Brand: Kinoflo
SKU: 1021591
Price: 3934.32 CHF
Availability: BackOrder

Kinoflo KIT-FT24U - FreeStyle T24 DMX Kit w/ Travel Case, Univ

SKU 1021591

EAN 1000000001570

Kinoflo KIT-FT24U - FreeStyle T24 DMX Kit w/ Travel Case, Univ

FreeStyle T24 DMX Kit w/ Travel Case, Univ

... learn more

Visuals Price

3,934.32 CHF VAT excl.

4,253.00 CHF Inc. VAT

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Description

Description

Kinoflo Freestyle T24 DMX Kit with Shipping Case, Univ

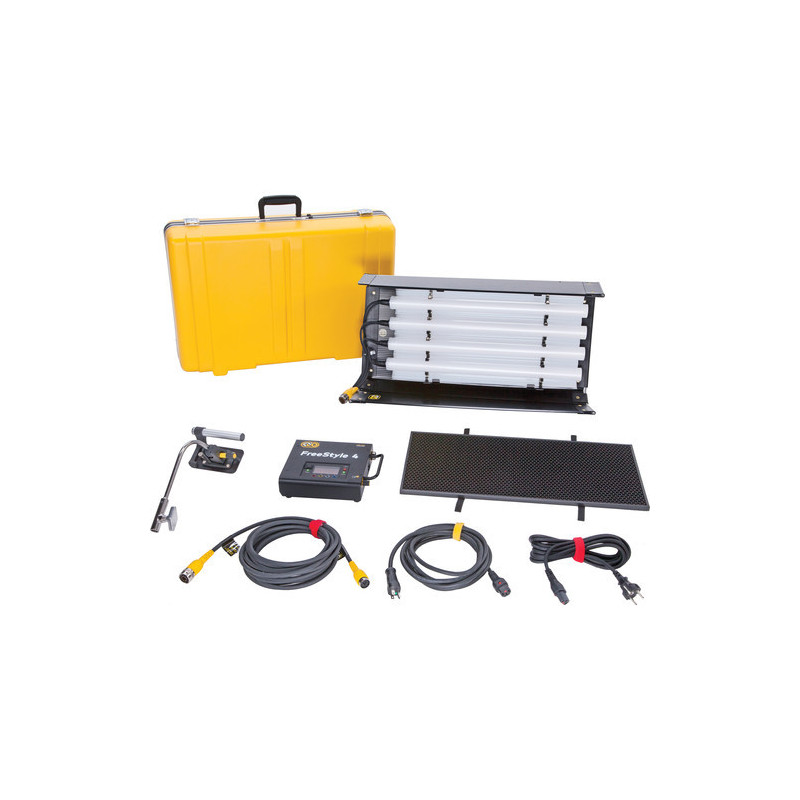

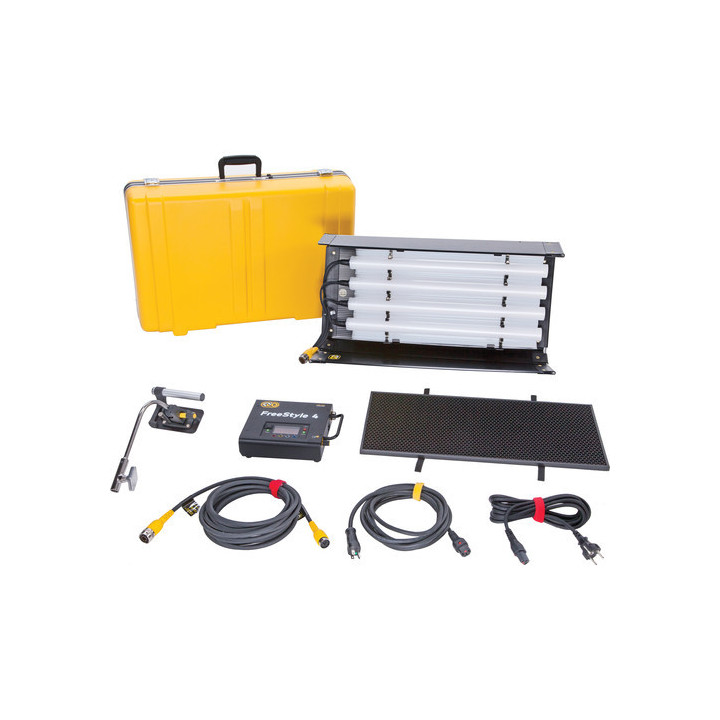

This FreeStyle T24 Universal LED DMX Kit with Shipping Case from Kino Flo includes the FreeStyle T24 LED fixture and the FreeStyle 120 LED DMX controller. It uses four 2-foot LED tubes and also includes the KinoGrip K41 mount with Baby receiver, a 25-foot head extension cable, a US power cable, a 2-pin Euro power cable and a shipping case.

Slim and compact, the FreeStyle T24 DMX system offers the same LED Colour Science technology as all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be held by hand with the included KinoGrip 41K mount, which also allows mounting via its 3/8" pin. Additionally, the rear of the fixture is equipped with a removable twist-lock centre mount, which can be adapted to work with several Kino Flo mounting adapters. The FreeStyle DMX controller offers four individual modes: White, Gels/Hue, RGB Colour and FX. White mode offers 1 to 100% dimming and an adjustable range from 2700 to 6500K. In Gels/Hue mode, the range is extended from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screens, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels. RGB Colour mode offers individual control of red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.

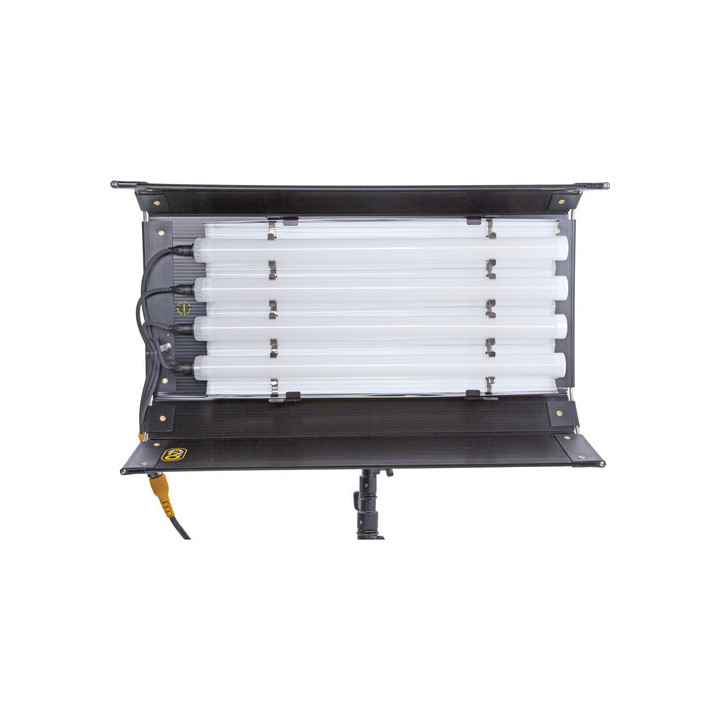

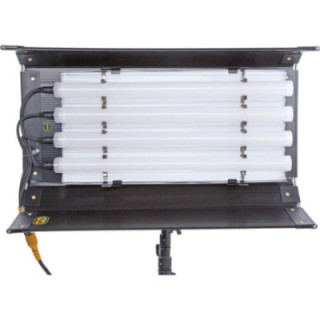

Kino Flo FreeStyle T24 LED Fixture

Slim and compact, the Kino Flo FreeStyle T24 LED fixture offers the same LED Colour Science technology as all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be held by hand with a KinoGrip 41K mount purchased separately. For mounting on lighting stands, the rear of the fixture has a removable KinoGrip twist-lock centre mount, which can be adapted to work with several Kino Flo mounting adapters.

The FreeStyle T24 LED fixture requires LED tubes purchased separately, a head cable and a DMX controller, and the controller offers four individual modes: White, Gels/Hue, RGB Colour and FX. White mode offers 1 to 100% dimming and an adjustable range from 2700 to 6500K. In Gels/Hue mode, the range is extended from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screens, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels. RGB Colour mode offers individual control of red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.

- Accepts four 2' LED tubes

- Adjustable colour temperature from 2500 to 9900K

- 1 to 100% dimming without colour shift

- Flicker-free and silent operation

- Gel presets include blue and green screens, sodium vapour and mercury vapour, as well as over 100 well-known lighting gels

- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll

- Full built-in dimming and DMX

- Wireless DMX link

Kino Flo FreeStyle 2' LED Tube

This 2' FreeStyle LED tube from Kino Flo is compatible with the FreeStyle T24 LED fixture. The LED tube can operate inside the fixture or independently with just the cable harness. The LED tubes also have an aluminium rail at the rear of the lamp that can be used as an access point for alternative mounting accessories.

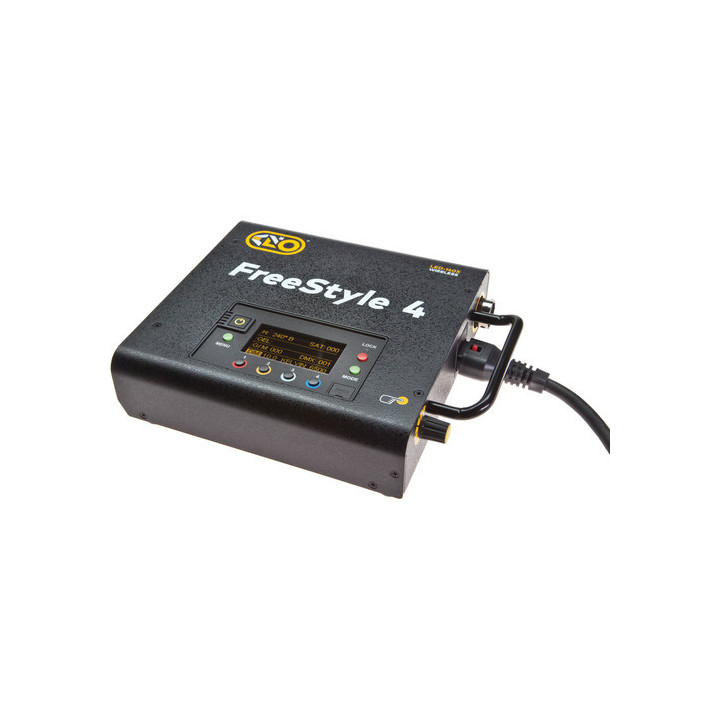

Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Tubes, (120 VAC cord)

This FreeStyle 140 LED DMX controller from Kino Flo for T44 LED tubes is supplied with a power cord to operate on 120 VAC whilst controlling and powering up to four T44 LED tubes.

It also allows dimming and green/magenta adjustment. Gels/Hue mode extends the colour temperature range from 2500 to 9900K whilst providing access to background presets for keying and over 100 lighting gel renderings.

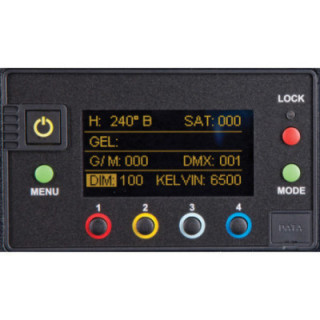

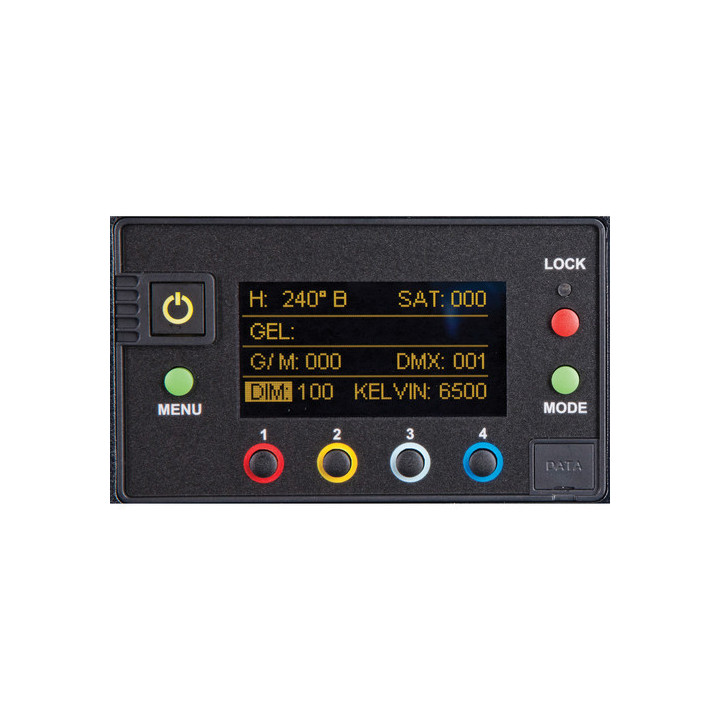

RGB mode provides access to the individual red, green and blue LED fixtures for precise control. FX mode offers customisable presets. The built-in display shows dimming, Kelvin temperature, green/magenta shift and DMX channel. Four built-in buttons are set by default to four Kelvin presets, but you can customise the button settings. The built-in control knob allows you to adjust dimming, Kelvin temperature, green/magenta levels and DMX address. The controller supports wired and wireless DMX, and it accepts universal power inputs as well as 18 to 36 VDC.

Menus

- White: dimming, adjustable Kelvin range from 2700K tungsten to 6500K daylight; green/magenta controls

- Gels/Hue: extended Kelvin colour range of 2500-9900K and provides access to Kino Flo presets such as blue and green screens, sodium vapour, mercury vapour as well as over 100 well-known lighting gels

- RGB: provides access to individual red, green and blue control. Works with applications with predetermined RGB presets or colour wheels

- FX: custom presets such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll with control parameters that can be modified. For example, the Lightning effect has a "Storm" and "Frankenstein" preset, but can change frequency to provide additional variations

- The controller can dim your LED tubes from 100% to 1%

- The controller comes with a Lumen Radio 120 VAC wireless power cord, but can operate on 100 to 240 VAC at 50/60 Hz. You can also power the controller via a 24 VDC battery with a 3-pin XLR connector.

Kino Flo KinoGrip K41 Twist-Lock Mount with 5/8" Baby Receiver

Make transporting and handling your fixture easier with this KinoGrip K41 Twist-Lock Mount with 5/8" Baby Receiver from Kino Flo. Compatible with fixtures equipped with twist-lock mounting plates, this mount will add a handle for easier manoeuvring of the light, as well as a wing nut for making quick adjustments and locking the light in position.

Kino Flo 150 Extension Cable for Select LED System (25')

The 25' Kino Flo 150 Extension Cable for Select LED System provides additional distance between the Select LED head and its ballast. Up to 2 extensions can be assembled for a total of 50'.

Kino Flo Shipping Case for FreeStyle T24

Store, transport and protect your FreeStyle T24 fixture with the yellow shipping case from Kino Flo. The case features latch closure, top handle and rigid construction.

	Specifications
	Fixture
	Colour Temperature	2500 to 9900K
	Dimming	Yes, 1 to 100%
	Fixture Dimensions	Fixture: 28.0 x 13.0 x 3.5" / 71.1 x 33.0 x 8.9 cm
	Fixture Weight	8 lb / 3.63 kg
	Connectors
	Power Input Connector	Proprietary
	DMX Connector	5-Pin XLR
	Assembly
	Fork Mounting	None
	Fixture Mount	None
	Remote Control
	Remote Control Type	DMX, Proprietary Wireless
	Power Supply
	AC Power Input	100 to 240 VAC, 50 / 60 Hz
	FreeStyle 2' LED Tube
	Length	2' / 61 cm
	FreeStyle 140 LED DMX Controller for FreeStyle T44 Tubes, (120 VAC cord)
	Connections	Power AC Input: IEC connector DC Input: 3-pin XLR DMX Input and Output: 5-pin XLR (Male and Female) USB: Mini-B
	Dimming Range	Brightness 100 to 1%
	Power Supply	Voltage AC: 120 to 240 VAC, 50/60 Hz DC: 18 to 36 VDC, 150 W Consumption AC: 1.25 A @ 120 VAC DC: 6.25 A @ 24 VDC Fuse 3.15 A/250 V
	Dimensions	9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm
	Weight	4.5 lb / 2.04 kg
	KinoGrip K41 Twist-Lock Mount with 5/8" Baby Receiver
	Mount	5/8" / 16 mm Baby Receiver
	FreeStyle T24 Shipping Case
	Closure Type	Latch
	Transport Options	Top Handle
	External Dimensions (L x H x D)	28.5 x 9 x 16" / 72.4 x 22.9 x 40.6 cm
	Weight	12 lb / 5.4 kg
