Kinoflo - FreeStyle T24 DMX System, Univ

Name: Kinoflo SYS-FT24U - FreeStyle T24 DMX System, Univ
Brand: Kinoflo
SKU: 1021614
Price: 3235.89 CHF
Availability: BackOrder

Kinoflo SYS-FT24U - FreeStyle T24 DMX System, Univ

SKU 1021614

FreeStyle T24 DMX System, Univ

... learn more

Visuals Price

3,235.89 CHF VAT excl.

3,498.00 CHF Inc. VAT

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Description

Description

Kinoflo freestyle t24 dmx system, univ

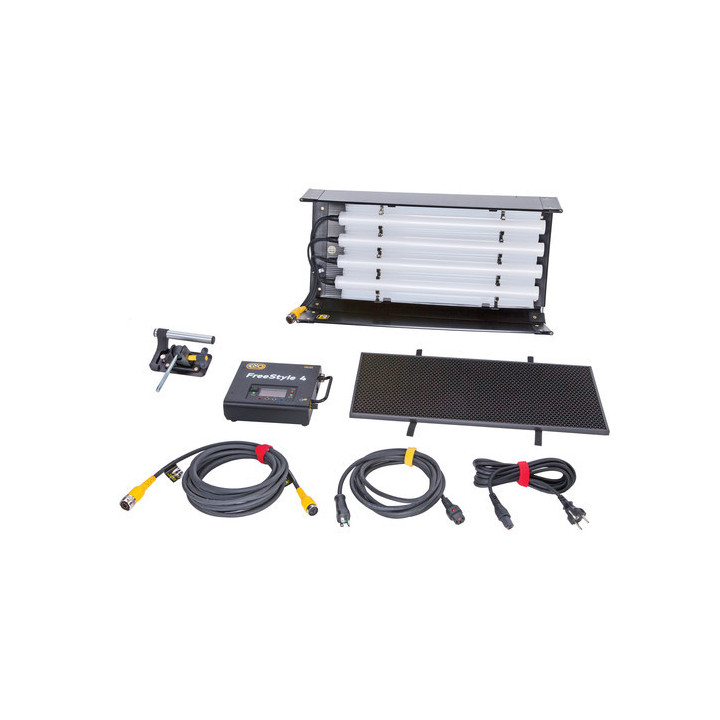

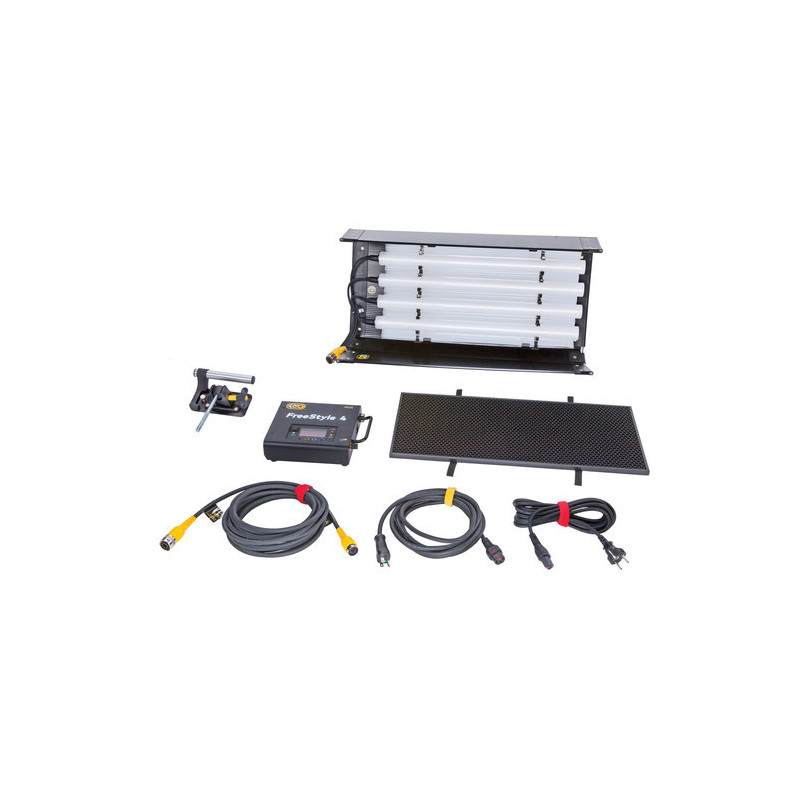

This universal FreeStyle T24 DMX system from Kino Flo comprises the FreeStyle T24 LED fixture and the FreeStyle 120 LED DMX controller. It uses four 2' LED tubes and also includes the KinoGrip K41 mount with Baby receiver, a 25' head extension cable, a US power cable and a 2-pin Euro power cable.

Slim and compact, the FreeStyle T24 DMX system offers the same Colour Science LED technology as all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be handheld with the included KinoGrip 41K mount, which also allows mounting via its 3/8" pin. Additionally, the rear of the fixture is equipped with a removable screw-on centre mount, which can be adapted to work with several Kino Flo mounting adapters.

The FreeStyle DMX controller has four individual modes: White, Colour Gels/Hue, RGB Colour and FX. White mode offers dimming from 1 to 100% and an adjustable range from 2700 to 6500K. In Colour Gels/Hue mode, the range is extended from 2500 to 9900K. The filter channel also includes Kino Flo presets such as blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting filters. RGB Colour mode gives individual control of the red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.

Kino Flo FreeStyle T24 LED fixture

Slim and compact, the Kino Flo FreeStyle T24 LED fixture offers the same Colour Science LED technology as all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight spaces or be handheld with a separately purchased KinoGrip 41K mount. For mounting on lighting stands, the rear of the fixture features a removable screw-on KinoGrip centre mount, which can be adapted to work with several Kino Flo mounting adapters.

The FreeStyle T24 LED fixture requires separately purchased LED tubes, a head cable and a DMX controller. The controller has four individual modes: White, Colour Gels/Hue, RGB Colour and FX. White mode offers dimming from 1 to 100% and an adjustable range from 2700 to 6500K. In Colour Gels/Hue mode, the range is extended from 2500 to 9900K. The filter channel also includes Kino Flo presets such as blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting filters. RGB Colour mode gives individual control of the red, green and blue LEDs, and in FX mode, you have access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll.

- Accepts four 2' LED tubes

- Adjustable colour temperature from 2500 to 9900K

- 1 to 100% dimming without colour shift

- Flicker-free and silent operation

- Filter presets include blue and green screen, sodium vapour and mercury vapour, as well as over 100 well-known lighting filters

- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse and scroll

- Full integrated dimming and DMX

- Wireless DMX linking

Kino Flo FreeStyle 2' LED tube

This Kino Flo FreeStyle 2' LED tube is compatible with the FreeStyle T24 LED fixture. The LED tube can operate inside the fixture or independently with only the cable harness. The LED tubes also feature an aluminium rail on the rear of the lamp which can be used as an access point for alternative mounting accessories.

Kino Flo FreeStyle 140 LED DMX controller for T44 tubes, (120 VAC cord)

This Kino Flo FreeStyle 140 LED DMX controller for T44 tubes is supplied with a power cord to operate on 120 VAC whilst controlling and powering up to four T44 LED tubes. It also enables intensity adjustment and green/magenta adjustment. Gels/Hue extends the colour temperature range from 2500 to 9900K whilst giving access to screen keying presets and over 100 lighting filter renderings.

RGB mode gives access to the individual red, green and blue LED fixtures for precise control. FX mode provides customisable presets. The integrated display shows dimming, Kelvin temperature, green/magenta shift and DMX channel. Four integrated buttons are set by default to four Kelvin presets, but you can customise the button settings. The integrated control button allows you to adjust dimming, Kelvin temperature, green/magenta levels and DMX address. The controller supports wired and wireless DMX, and accepts worldwide power inputs as well as 18 to 36 VDC.

Menus

- White: dimming, adjustable Kelvin range from 2700K tungsten to 6500K daylight; Green/Magenta controls

- Gels/Hue: extended colour temperature range from 2500 to 9900K and gives access to Kino Flo presets such as blue and green screen, sodium vapour, mercury vapour as well as over 100 well-known lighting filters

- RGB: gives access to individual control of red, green and blue. Works with applications featuring predetermined RGB presets or colour wheels

- FX: custom presets such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll with adjustable control parameters. For example, the Lightning effect has a "Storm" and "Frankenstein" preset, but can modify the Frequency to provide additional variations

- The controller can dim your LED tubes from 100% brightness down to 1%

- The controller is supplied with a 120 VAC Lumen Radio wireless power cord, but can operate on 100 to 240 VAC at 50/60 Hz. You can also power the controller via a 24 VDC battery with 3-pin XLR connector.

Kino Flo KinoGrip K41 screw-on mount with 5/8" Baby receiver

Make transporting and handling your fixture easier with this Kino Flo KinoGrip K41 screw-on mount with 5/8" Baby receiver. Compatible with fixtures equipped with screw-on coupling plates, this mount will add a handle for easier light handling, as well as a wing nut for quick adjustments and locking the light in position.

Kino Flo 150 extension cable for selected LED system (25')

The Kino Flo 25' 150 extension cable for selected LED system provides additional distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

	Specifications
	Fixture
	Colour temperature	2500 to 9900K
	Dimming	Yes, 1 to 100%
	Fixture dimensions	Fixture: 28.0 x 13.0 x 3.5" / 71.1 x 33.0 x 8.9 cm
	Fixture weight	8 lb / 3.63 kg
	Connectors
	Power input connector	Proprietary
	DMX connector	5-pin XLR
	Mounting
	Yoke mounting	None
	Fixture mounting	None
	Remote control
	Remote control type	DMX, proprietary wireless
	Power
	Mains AC power	100 to 240 VAC, 50/60 Hz
	FreeStyle 2' LED tube
	Length	2' / 61 cm
	FreeStyle 140 LED DMX controller for T44 tubes, (120 VAC cord)
	Connections	Power AC input: IEC connector DC input: 3-pin XLR DMX input and output: 5-pin XLR (male and female) USB: Mini-B
	Dimming range	Brightness from 100 to 1%
	Power	Voltage AC: 120 to 240 VAC, 50/60 Hz DC: 18 to 36 VDC, 150 W Power consumption AC: 1.25 A @ 120 VAC DC: 6.25 A @ 24 VDC Fuse 3.15 A/250 V
	Dimensions	9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm
	Weight	4.5 lb / 2.04 kg
	KinoGrip K41 screw-on mount with 5/8" Baby receiver
	Mounting	5/8" / 16 mm Baby receiver
