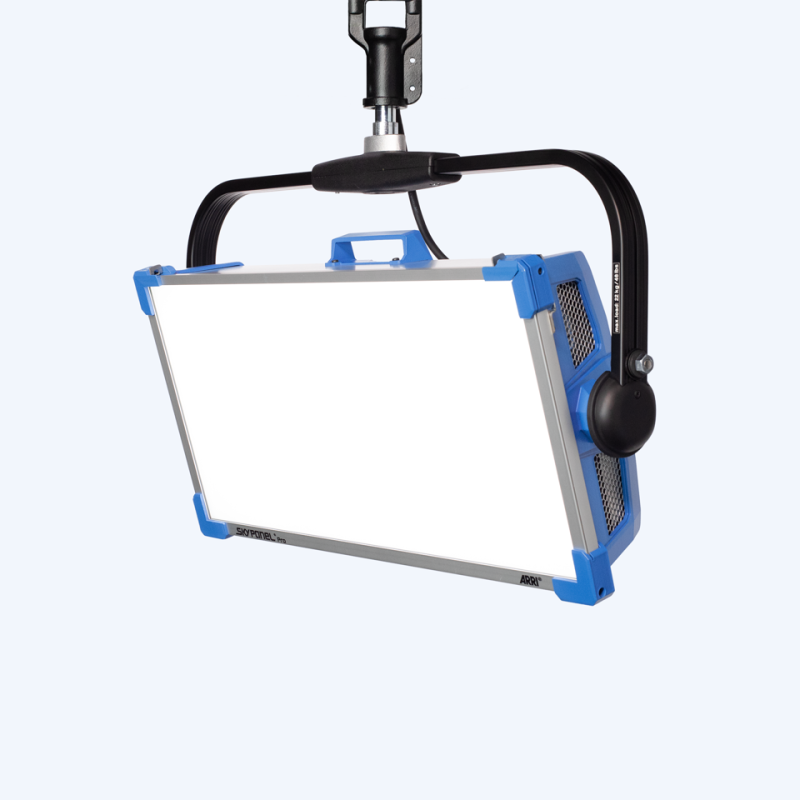

Arri - S60 Pro MAN blue/silver (Schuko)
Arri L0.0052499 - S60 Pro MAN blue/silver (Schuko)
1081521
S60 Pro MAN blue/silver (Schuko)
Visuals Price
4,000.00 CHF
VAT excl.
4,324.00 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Arri L0.0052499 - S60 Pro MAN blue/silver (Schuko) Specs
| Type of Lamphead | LED Soft Light |
| Optical System | Swappable Diffusion Panels |
| Light Aperture | approx. 645 x 300 mm / 25.4 x 11.8″ |
| Beam Angle | 103° (Standard Diffusion) |
| Light Engine | RGBW LED Light Engine |
| White Light | 2,800 K to 10,000 K Continuously Variable CCT with Full +/- Green |
| Colour Modes | CCT, HSI, RGBW, Effects, xy, Gel, Source Matching |
| Pixel Zones | 4 |
| Colour Rendition | CRI average >95 TLCI average >90 TM30Rf average >91 |
| Camera Sensor Matching | Yes, via ARRI ALEXA Mode |
| Dimming | 0 to 100 % Continuous High Resolution Low End Dimming |
| Accessory Compatibility | All SkyPanel Classic S60-C front and mounting accessories |
| Versions | Manual Pole Operated |
| Handling | Aluminium Yoke with High-Strength Tilt Lock Steel Yoke for Pole Operation (Pan, Tilt) Rail for Fixed and Centre Mount Yokes |
| Mounting | 28 mm spigot (Junior Pin) |
| Housing Colours | Blue/Silver, Black |
| Tilt Angle | +/- 90° |
| Weight with Manual Yoke | approx. 15 kg / 33.1 lbs (Internal PSU) |
| On-Board Control | On-Board Control Panel on Bottom of Fixture |
| Wired Control | 5-Pin DMX/RDM In and Through DMX-512A, RDM, Art-Net 4, sACN, LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP) Data Continues to Pass While Fixture is Powered Off |
| Wireless Control | CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BL, Native Bluetooth 5.0 |
| Software Interface | LAN/EtherCon and USB-C |
| Digital Twin Available | Yes |
| CloudIO Remote Maintenance Tool | Yes |
| Software | LiOS |
| Power Supply | Internal |
| Power Consumption | 500 W Maximum |
| AC Voltage Range | 110 – 240 V~, 50/60 Hz |
| AC Power Connection | In and Through, PowerCON® TRUE1 TOP Compatible |
| DC Voltage Range | 48 to 52 V⎓ (100% Output) |
| DC Power Connector | 3-Pin XLR (Pin 1: Negative, Pin 2: Positive) |
| Protection Class / IP Rating | I / IP20 |
| Ambient Temperature Operation | -20 to +45 °C / -4 to +113º F |
| Estimated LED Lifetime (L70) | 40,000 Hours |
| Estimated Colour Shift Over Lifetime (CCT) | +/- 5% |
| Certifications and Declarations of Conformity | CE, CB, ENEC, cNRTLus, FCC, PSE & more |
| Photometrical Data with Standard Diffusion (103°) | 5 m / 16.4 ft: 3200K: 608 lux / 56 fc 5600K: 636 lux / 59 fc |
