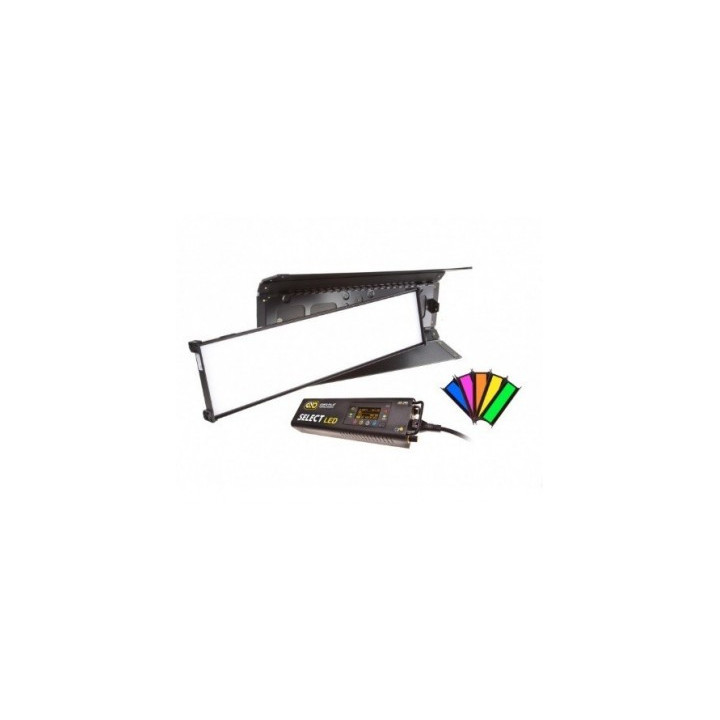

FreeStyle LED 31 DMX System, Univ 230U - SYS-F31-230U

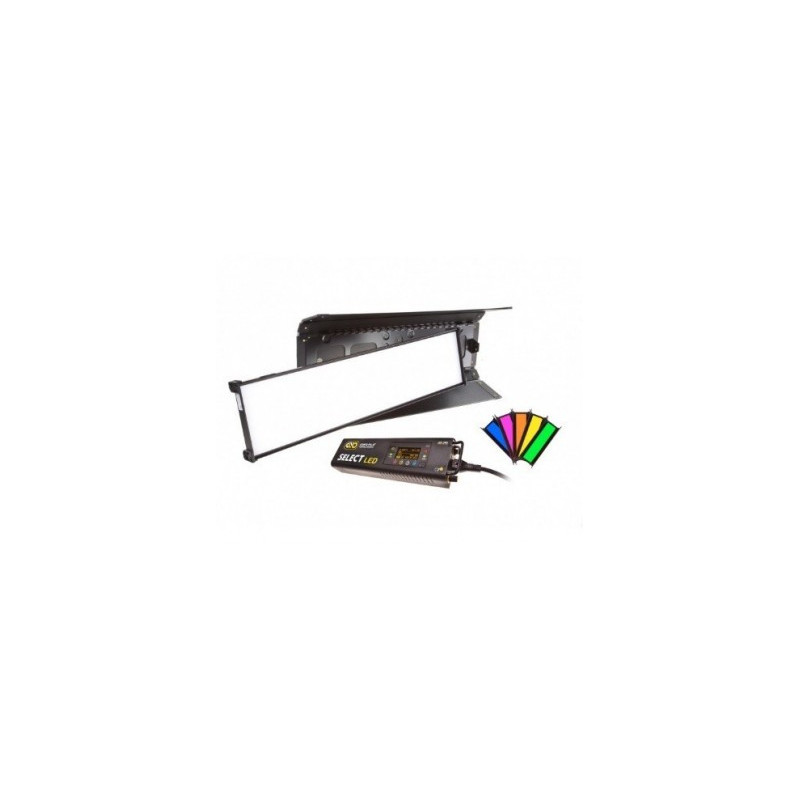

(Includes FreeStyle 31 LED fixture, 90° grid, Select LED 150 DMX controller, MTP-BC41 mount, 7.6m extension cable)


Kino Flo's new FreeStyle 31 LED unleashes your creativity with a newly designed quick-release system to remove the LED panel from the plastic housing. The more compact format and lightweight LED panel, combined with four corner protectors, offer increased mounting versatility. The LED panel also includes an additional mounting plate for stand mounting.

Kino Flo's new FreeStyle 31 LED offers three menu options, one white and two colour. Those who prefer to work with white light can use the "white menu" which gives the user access to dimming, colour temperature and green/magenta balance control channels. The colour temperature range is from 2700K (tungsten) to 6500K (daylight).

In the colour menu, the colour temperature range is from 2500K (tungsten) to 9900K (daylight), and Kino Flo has implemented a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue and green screens, sodium vapour, mercury vapour and over 100 well-known lighting gels. Additionally, there is also a fifth channel called Hue Angle and a sixth channel, Saturation. These two channels behave similarly to a traditional colour wheel, where you have white light in the centre, the hue angle determines the colour over a 360-degree range, and saturation determines the intensity of the applied colour. The second colour menu offers individual control of red, green and blue (RGB). The RGB menu is an excellent way to work with applications that have predetermined RGB presets or colour wheels.

Kino Flo's new FreeStyle LEDs are also equipped with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal 100-240VAC input voltage (1.3A at 120U). We have also recently added new SnapBag Softbox and SnapGrid accessories.


FEATURES

- Colour temperature presets
- Precise colour temperature control between 2700K and 6500K
- Extended colour palette from 2500K to 9900K
- Green/magenta control
- Hue angle and saturation settings
- RGB control
- Works with applications that have predetermined RGB presets or colour wheels
- Ability to use preset buttons to save custom colour temperature settings
- Light levels do not change when selecting colour temperature settings
- No colour shift during dimming
- Colour correction with high colour rendering index (CRI 95)
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient, consumes 1.3A, 120VAC and 7.0A, 24VDC (FreeStyle 31)
- Flicker-free and completely silent operation
- Fully integrated dimming and DMX
- Wireless DMX link (Lumen Radio®)
- Automatic DMX termination
- Remote fixture with integrated grids
- Removable LED panel with centre mount and moulded corner mounts
- Fixture includes removable 90° honeycomb grid
- Honeycomb grid also available in 60° as accessory
- Removable centre mount
- KinoGrip centre mount
- Lightweight and slim profile
- Stand mountable, light enough to be hand-held
- Controller attaches to fixture or operates remotely with extension cable


Key Features

SPECIFICATIONS

FreeStyle 31 Fixture:
Colour Temperature Range: 2700-6500, 2500-9900
Dimming Range: 100%~1%
Dimensions: 103 x 9 x 28 cm with 16.5 cm grid (40.5 x 3.5 x 11" with 6.5" grid)
Weight: 7 kg (15 lb)

LED-150X Controller:
VAC Input Voltage: 240~100VAC, 50/60Hz, 150W
VAC Amperage: 0.65A
VDC Input Voltage: 18~36VDC, 150W
24VDC Amperage: 7.0A
Colour Temperature Range: 2700-6500, 2500-9900
Dimming Range: 100%~1%
Dimensions: 38 x 11.5 x 8 cm (15 x 4.5 x 3")
Weight: 2 kg (4.5 lb)

Contents:
1 FreeStyle 31 LED Fixture
1 Select 150 LED DMX Controller
1 MTP-BG41 Mount with Baby (16mm) Receiver
1 7.6m Extension Cable
