Sonnet - Thunderbolt 3 Upgrade Card for Echo Express SE I
Sonnet BRD-UPGRTB3-SE1 - Thunderbolt 3 Upgrade Card for Echo Express SE I
1018550
The Thunderbolt 3 Upgrade Card from Sonnet upgrades your Thunderbolt 2 system to 40 Gb/s Thunderbolt 3.
Visuals Price
201.67 CHF
VAT excl.
218.01 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

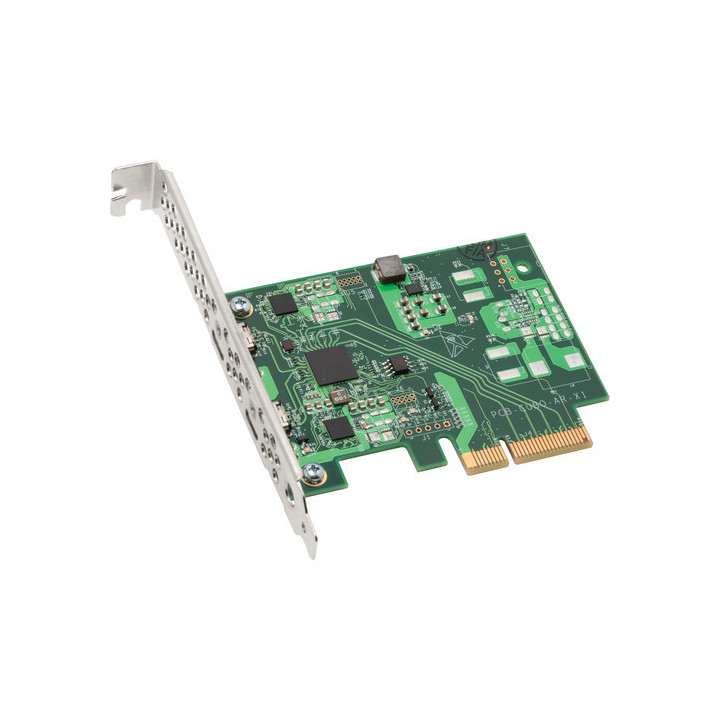

Sonnet Thunderbolt 3 Upgrade Card for Echo Express SE I
Sonnet's Thunderbolt 3 expansion card allows you to upgrade your Thunderbolt 2 system to Thunderbolt 3 at 40 Gb/s. By replacing the existing Thunderbolt interface card in your Echo Express SE I with this expansion card, your chassis will instantly support superior performance and connect to your Thunderbolt 3-equipped computer without requiring an adapter.
With the Thunderbolt 3 interface card installed, your upgraded Echo Express Thunderbolt 2 system benefits from 30 to 100% additional bandwidth compared to the original system. When installed in an upgraded system, PCIe cards requiring high bandwidth, such as 16 Gb Fibre Channel cards and 4K video I/O cards supporting high frame rates, can deliver better performance than before.
Features
- Replaces the existing 20 Gb/s Thunderbolt interface card
- Easy to install
- Two Thunderbolt 3 ports, one port reserved for connecting the computer; the second port supports daisy-chaining up to five additional Thunderbolt devices, connecting a single USB device, or connecting up to two 4K displays or one 5K display
- Compatible with the ThunderLok 3 retention clip
Sonnet's Thunderbolt 3 expansion card allows you to upgrade your Thunderbolt 2 system to Thunderbolt 3 at 40 Gb/s. By replacing the existing Thunderbolt interface card in your Echo Express SE I with this expansion card, your chassis will instantly support superior performance and connect to your Thunderbolt 3-equipped computer without requiring an adapter.
With the Thunderbolt 3 interface card installed, your upgraded Echo Express Thunderbolt 2 system benefits from 30 to 100% additional bandwidth compared to the original system. When installed in an upgraded system, PCIe cards requiring high bandwidth, such as 16 Gb Fibre Channel cards and 4K video I/O cards supporting high frame rates, can deliver better performance than before.
Features
- Replaces the existing 20 Gb/s Thunderbolt interface card
- Easy to install
- Two Thunderbolt 3 ports, one port reserved for connecting the computer; the second port supports daisy-chaining up to five additional Thunderbolt devices, connecting a single USB device, or connecting up to two 4K displays or one 5K display
- Compatible with the ThunderLok 3 retention clip
|
|
Specifications |
|
|
Compatibility |
Hardware compatibility: |
|
|
External Connectors |
2 Thunderbolt 3 ports |
|
|
Interface |
Thunderbolt 3 40 Gb/s |
|
|
System Performance |
2750 MB/s |
|
|
Compliance |
RoHS |
|
|
Operating Temperature |
0 to 35°C / 32 to 95°F |
The Thunderbolt 3 Upgrade Card from Sonnet upgrades your Thunderbolt 2 system to 40 Gb/s Thunderbolt 3.
