IO Industries Mini Camera Kit
The IO Industries Mini Camera Kit includes:
- 2KSDIMINIRSD Mini RS Camera
- VICMOUNT Tripod Mounting Plate
- 485HRMT Handheld Remote
- CABVICBATT Battery Power Cable
- CABUSB4852M USB Control Cable
- ACPWRTAP Mains Power Adaptor
- CAB2KMINIDCI Cable

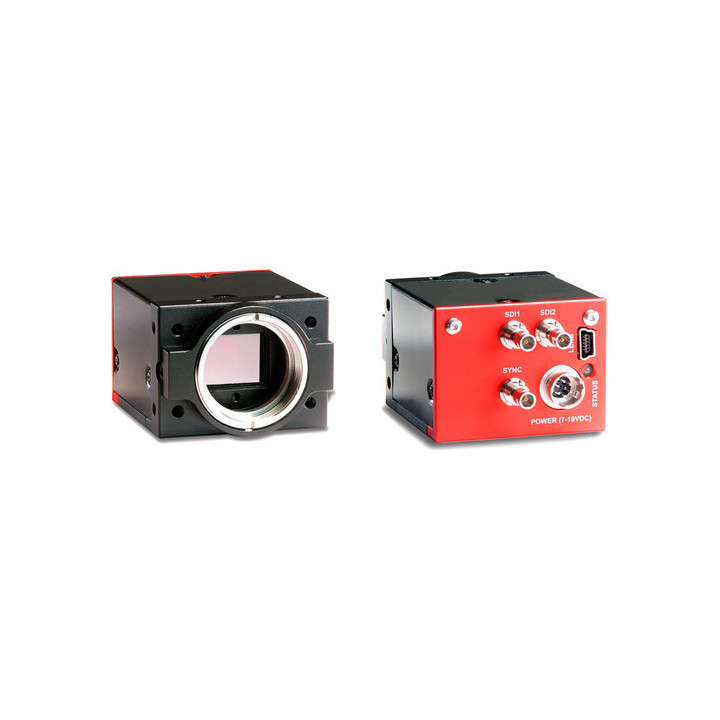

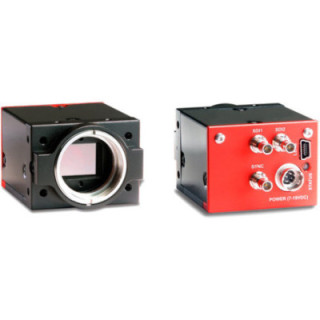

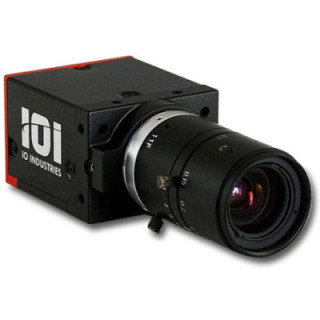

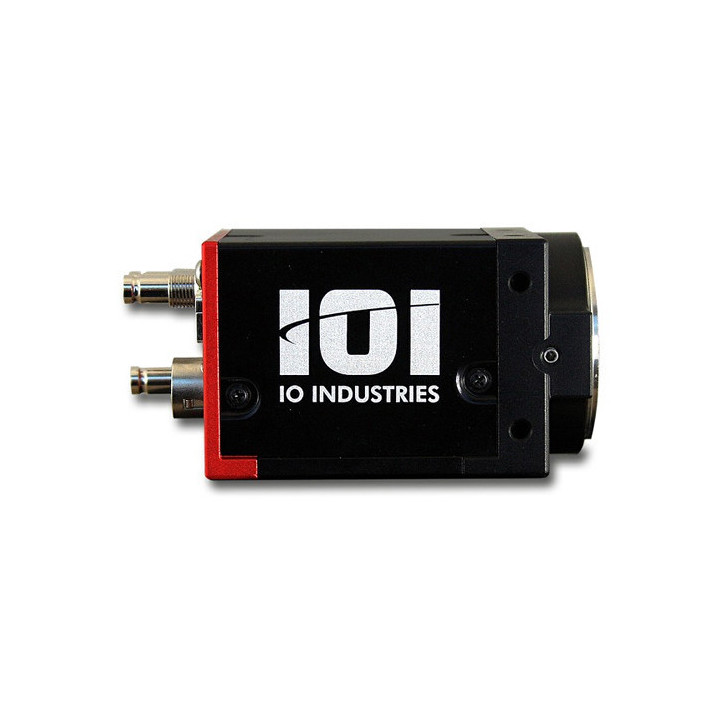

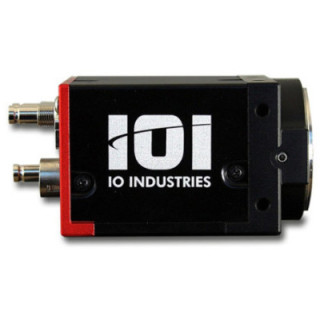

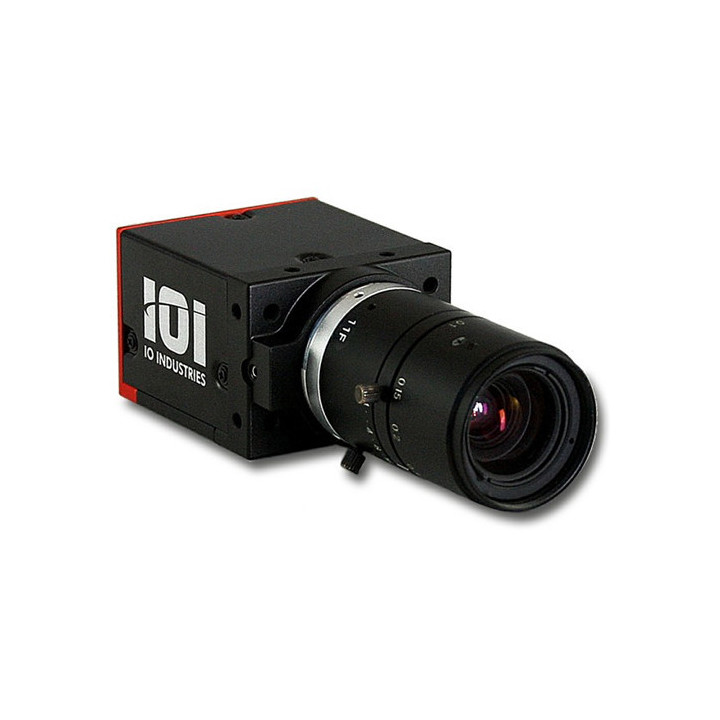

2KSDIMINIRSD Mini RS Camera
The IO Industries Victorem 2KSDI-Mini RS camera is a compact camera head with a rolling shutter sensor for HD image acquisition. Its small size and rugged design allow this camera to be used in applications such as aircraft and vehicle recording, firing range instrumentation, security and surveillance, and specialised video production. A C-mount at the front of the camera can accept many readily available professional lenses and can be adapted to use other lens systems as well. This camera has a connection for C-mount lenses that have an electronic iris for automatic iris functionality.
For video output, the Victorem 2KSDI RS uses dual SDI outputs via DIN 1.0/2.3 connections. Both outputs are active simultaneously, so one can be used for recording and the other for monitoring, or they can be used for redundancy. OSD menu information can be sent from the first SDI output. 10-bit 4:2:2 and 4:4:4 video can be output, in addition to raw Bayer information for post-production processing.
Exposure Control
Automatic exposure (adjusts exposure, gain and/or iris if electronically connected) or manual exposure
Image Processing
Gamma (1D LUTs), master pedestal control, adjustable sharpness
Colour Control
Automatic white balance or calibrated presets, colour correction matrix, RGB offsets, saturation control
Output Options
SDI video output in 10-bit 4:2:2, 10-bit 4:4:4, or raw Bayer video for post-production processing
Camera Configuration Options
RS-485; use handheld remote for OSD, USB adaptor for PC software or direct ASCII protocol
OSD Menu Navigation
The camera menu is visible on the SDI1 output stream for visual confirmation of menu selections
VICMOUNT Tripod Mounting Plate
Tripod mounting plate, can be installed on all sides of the camera

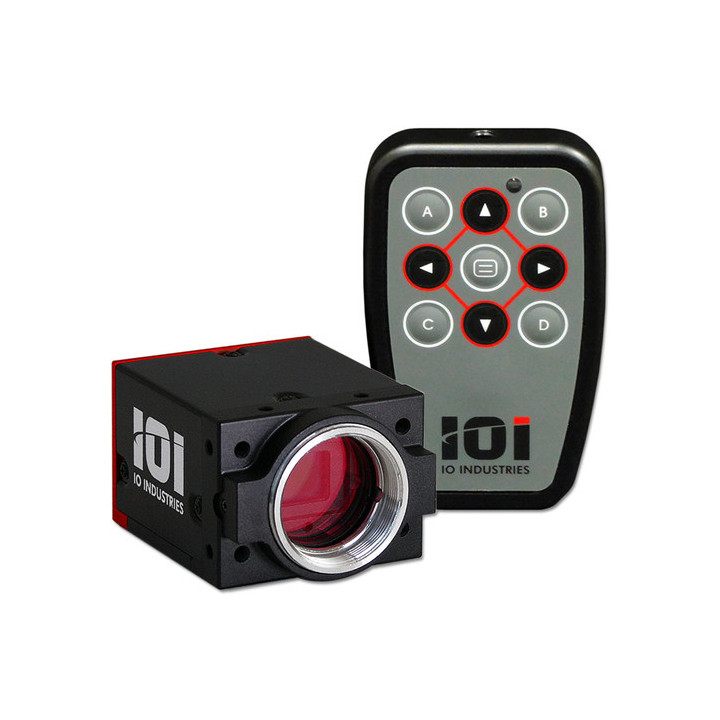

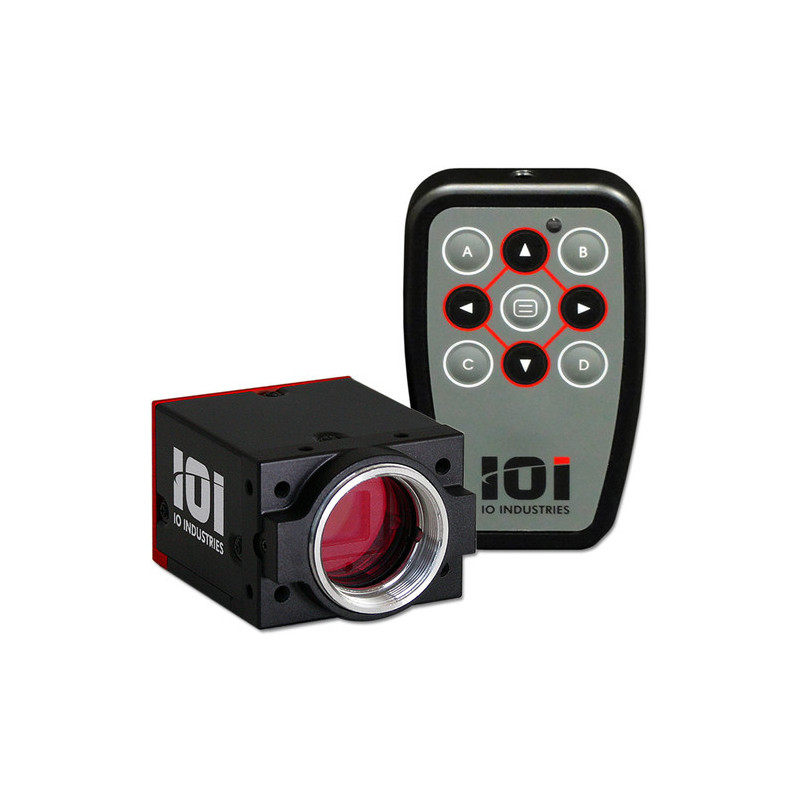

485HRMT Handheld Remote
Handheld remote for SDI models with RS485 interface, for camera control via on-screen display
CABVICBATT Battery Power Cable
Battery power cable for Victorem SDI models, with PowerTap connector and LEMO for RS485
CABUSB4852M USB Control Cable
The IO Industries Flare 2KSDI camera two-metre USB control cable allows you to control the camera and update firmware and lookup tables (LUTs) from a PC.
ACPWRTAP Mains Power Adaptor
Mains power adaptor (universal) with PowerTap connector
CAB2KMINIDCI Cable
Adaptor cable, connects the 2KSDI-Mini to a DC auto-iris lens
|
|
Specification
|
|
|
Sensor
|
|
|
Model
|
Sony Exmor-R IMX183
|
|
Size
|
Type 2/3"
|
|
Dynamic Range
|
72
|
|
General
|
|
|
Outputs
|
3G/HD-SDI: 2 x DIN 1.0/2.3 (push-pull/threaded)
|
|
Output Resolution
|
2048 x 1080 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
|
|
Video Sampling
|
10-bit, 4:2:2, YCbCr
10-bit, 4:4:4, RGB
Raw (Bayer)
|
|
Other I/O
|
Sync: 1 x DIN 1.0/2.3 (push-pull/threaded)
Control: 1 x USB mini-B
Power/RS845: 1 x LEMO 6-pin
|
|
Sync
|
Tri-level Input
|
|
Lens Mount
|
C-mount
|
|
Environmental
|
Operating temperature: 14 to 122°F / -10 to 50°C
Storage temperature: -40 to 185°F / -40 to 85°C
Operating humidity: 20-85% (non-condensing)
Storage humidity: 10-90% (non-condensing)
|
|
Shock and Vibration
|
Tested to MIL-STD-810G Method 516.6, 75G Shock on 3 axes and Method 514.6, Vibration on 3 axes Cat. 20
|
|
Power Input
|
7-19 VDC
|
|
Dimensions
|
1.3 x 1.7 x 2.1" / 33 x 44 x 54 mm
|
|
Weight
|
4.9 oz / 140 g
|
