IO Industries 4KSDIMINIMKIT - Camera and Accessory Kit
1035652
Camera and Accessory Kit for 4KSDI-Mini, MFT mount
Visuals Price
5,064.00 CHF
VAT excl.
5,474.18 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
IO Industries Camera Kit and Accessories

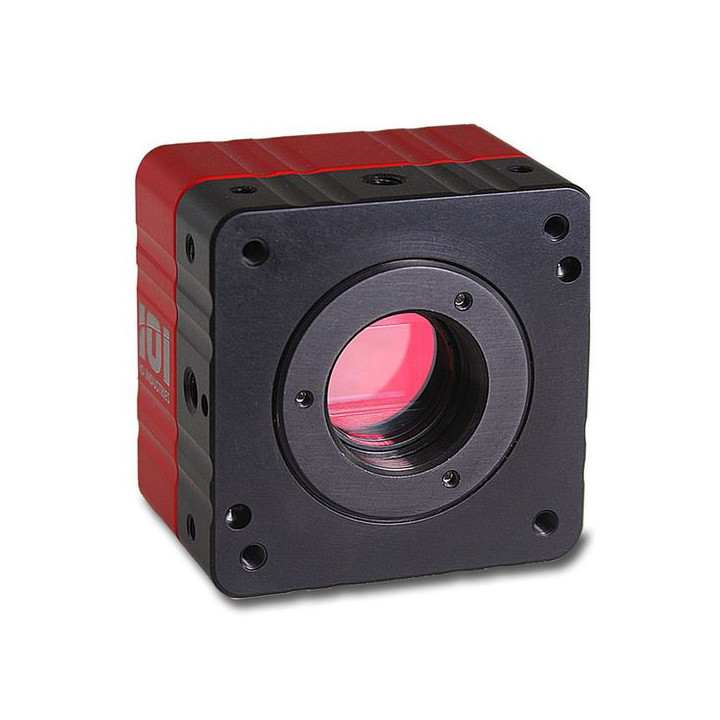

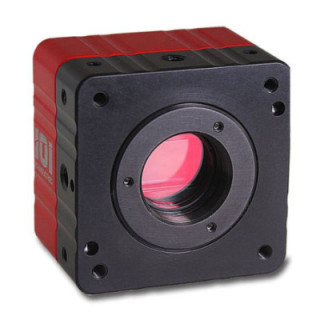

The 4KSDI-Mini is a compact and lightweight 4K video camera with professional 10-bit SDI output. It can be used as a point-of-view (POV) camera for live events and sports broadcasts, fitting into tight locations where larger cameras are impractical. Or, combined with an SDI video recorder, the 4KSDI-Mini can be used for specialised digital cinematography and feature film production. Following in the footsteps of the IO Industries 4KSDI camera, the 4KSDI-Mini brings improved image quality, a more compact form factor and 4K60p video over a single cable via 12G-SDI. Overall, this camera makes it easy to bring new 4K video angles to the world, enhancing multi-camera productions of all kinds.
Two 4KSDI-Mini models are available to choose from. Both offer the same internal features and the same variety of 4K/UHD or 2K/HD output formats, but they incorporate different types of CMOS sensors. The standard 4KSDI-Mini features a Sony 1" format CMOS sensor with global shutter capability, making it ideal for applications involving fast motion or rapid camera movement. The 4KSDI-Mini RS features a Sony 2/3" format CMOS sensor with rolling shutter, which is better suited to fixed or limited-motion camera applications. The image quality and sensitivity of both models are similar, so the choice between models comes down to which is best suited to the application.

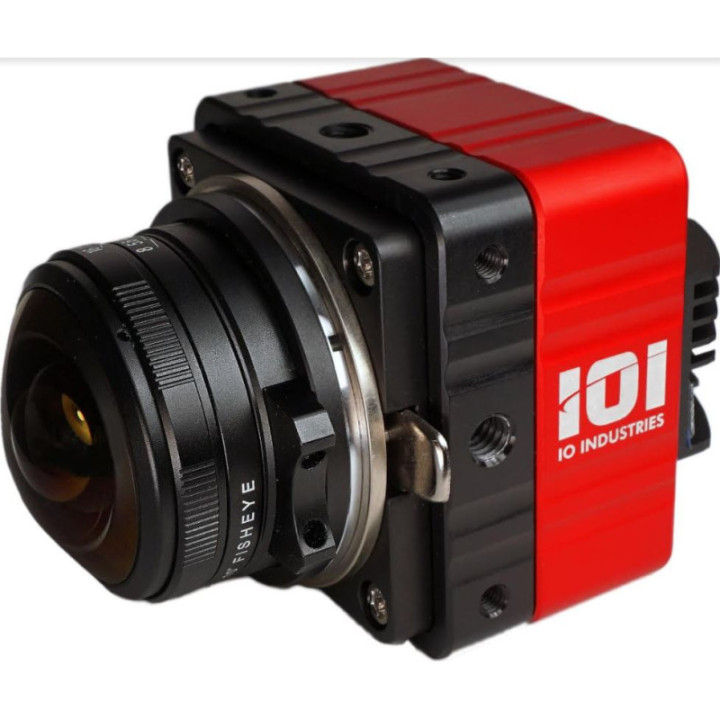

The 4KSDI-Mini is available with either a C-mount or a passive Micro Four Thirds (MFT) mount, allowing easy interchangeability between hundreds of compact lenses available today. This flexibility to easily switch between fisheye, portrait, zoom, telephoto and many other types of lenses adds to the versatility of the 4KSDI-Mini. C-mount lenses can be very compact and are typically manual-adjustment lenses, although remote-controlled motorised models are available. The MFT mount is commonly used with compact cameras, and a wide range of compatible lenses is available, including low-distortion fisheye lenses. Adapters to convert C-mount or MFT mount to other lens mounts are available, such as B4, PL, Nikon F, Canon EF and more. An active C-mount to EF-mount adapter is also available, allowing EF-mount lenses to be fitted to C-mount camera models, providing remote control capability for focus and aperture adjustments on that lens.
With four SDI outputs on HD-BNC connectors, the 4KSDI-Mini offers a range of options for connecting to existing and future 4K video equipment. The primary output format is selectable between UHD and DCI 4K, at frame rates from 23.98 to 60.0 fps. If the SDI link configuration is set to single-link 12G/6G-SDI or dual-link 3G-SDI, the first two SDI outputs carry the primary signal. A secondary signal is available on the third SDI output, displaying a scaled copy of the primary signal in HD or 2K format. The secondary signal is useful for monitoring or even recording the primary signal in a different format. Additionally, the on-screen menu can be displayed on both the primary and secondary outputs, or only on the secondary output, leaving the primary output "always clean". The SDI link configuration can also be set to quad-link 3G-SDI for connections with older 4K-compatible equipment, but no secondary output is available.

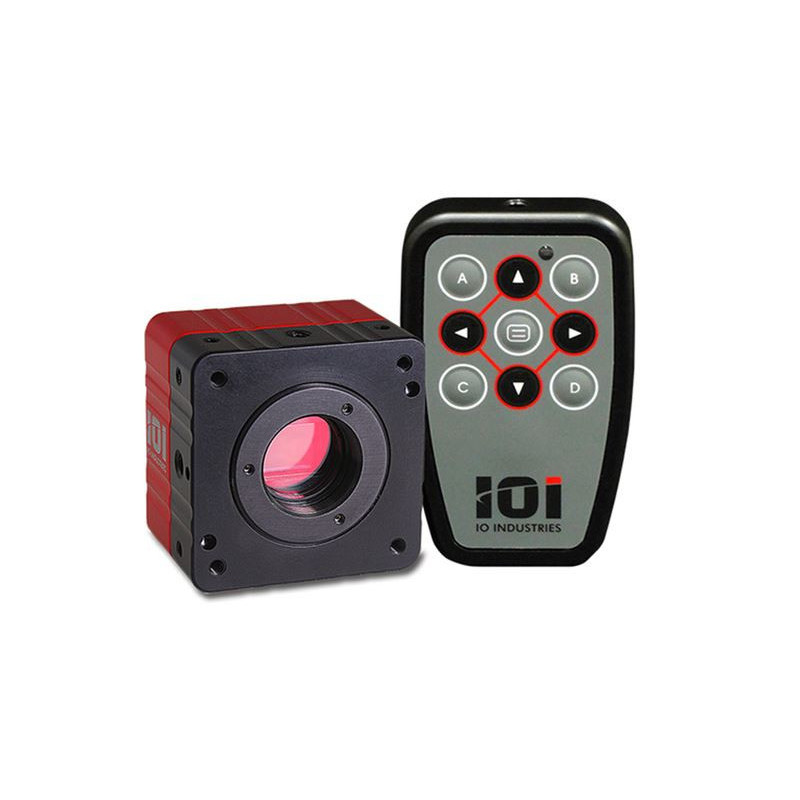

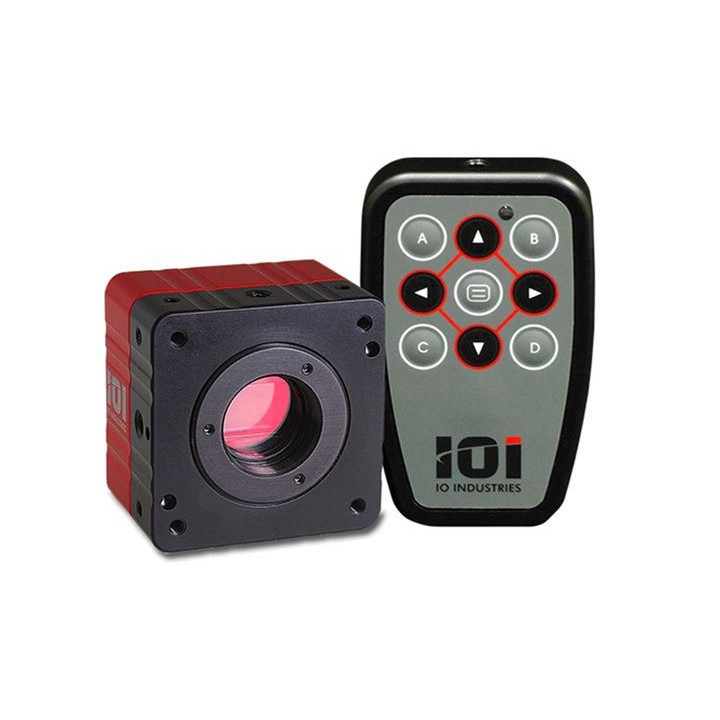

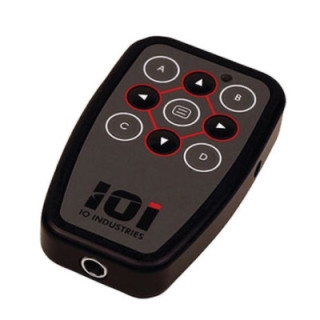

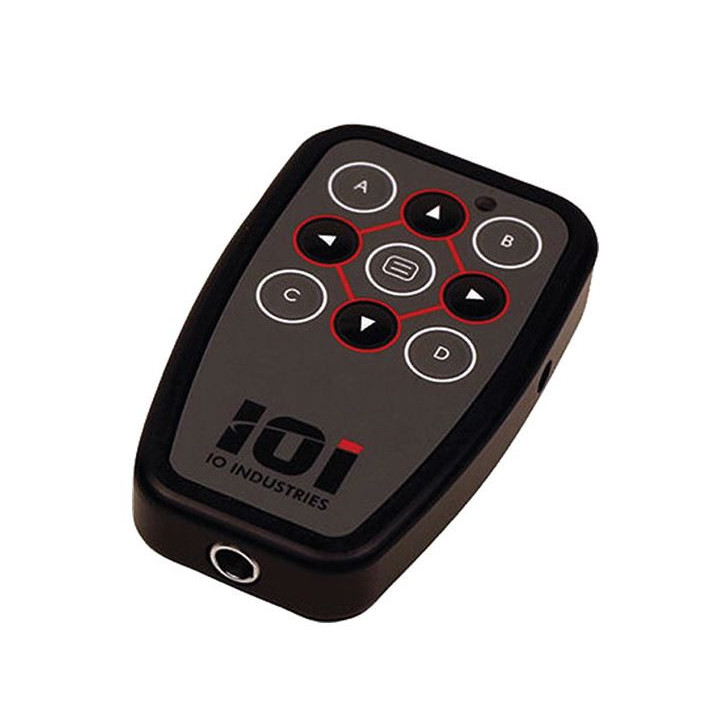

The 4KSDI-Mini is controlled via a two-wire RS485 serial connection. Operators can use a handheld remote control for quick camera adjustments via the on-screen menu. For live broadcast environments, third-party remote control panels (RCPs) are also available, allowing quick adjustments of paint and shading functions. PC control is possible via a USB-RS485 adapter and easy-to-use software utility supplied with the camera. Or, for complete system integration, the camera's full control protocol is simple and fully documented for developers to integrate into other control systems.
Shutter synchronisation is essential for multi-camera applications such as stereoscopic 3D, VR-360 or even volumetric video capture. Additionally, in live broadcast installations, cameras must be able to be genlock to a master sync reference in order to allow cuts/dissolves between cameras. Otherwise, cameras must be paired with frame synchronisers which can increase overall video delay. The 4KSDI-Mini accepts an HD tri-level sync signal via a dedicated HD-BNC input. If this signal is distributed to multiple cameras, microsecond-level shutter synchronisation between cameras can be achieved.
Features
- High-quality Sony CMOS sensors
- 12G / 6G / 3G / HD-SDI output formats
- 4K/UHD output or scaled 2K/HD output
- C-mount, passive MFT mount or active EF mount
- 10-bit 4:2:2, 4:4:4 or RAW output
- Compact rugged one-piece design
- Multi-camera synchronisation via tri-level sync
- Easy to configure via on-screen menu
Applications
- Aerial and vehicle recording
- Test range instrumentation
- Specialised video production
- Security and surveillance
The 4KSDI-Mini is a compact and lightweight 4K video camera with professional 10-bit SDI output. It can be used as a point-of-view (POV) camera for live events and sports broadcasts, fitting into tight locations where larger cameras are impractical. Or, combined with an SDI video recorder, the 4KSDI-Mini can be used for specialised digital cinematography and feature film production. Following in the footsteps of the IO Industries 4KSDI camera, the 4KSDI-Mini brings improved image quality, a more compact form factor and 4K60p video over a single cable via 12G-SDI. Overall, this camera makes it easy to bring new 4K video angles to the world, enhancing multi-camera productions of all kinds.
Two 4KSDI-Mini models are available to choose from. Both offer the same internal features and the same variety of 4K/UHD or 2K/HD output formats, but they incorporate different types of CMOS sensors. The standard 4KSDI-Mini features a Sony 1" format CMOS sensor with global shutter capability, making it ideal for applications involving fast motion or rapid camera movement. The 4KSDI-Mini RS features a Sony 2/3" format CMOS sensor with rolling shutter, which is better suited to fixed or limited-motion camera applications. The image quality and sensitivity of both models are similar, so the choice between models comes down to which is best suited to the application.
The 4KSDI-Mini is available with either a C-mount or a passive Micro Four Thirds (MFT) mount, allowing easy interchangeability between hundreds of compact lenses available today. This flexibility to easily switch between fisheye, portrait, zoom, telephoto and many other types of lenses adds to the versatility of the 4KSDI-Mini. C-mount lenses can be very compact and are typically manual-adjustment lenses, although remote-controlled motorised models are available. The MFT mount is commonly used with compact cameras, and a wide range of compatible lenses is available, including low-distortion fisheye lenses. Adapters to convert C-mount or MFT mount to other lens mounts are available, such as B4, PL, Nikon F, Canon EF and more. An active C-mount to EF-mount adapter is also available, allowing EF-mount lenses to be fitted to C-mount camera models, providing remote control capability for focus and aperture adjustments on that lens.
With four SDI outputs on HD-BNC connectors, the 4KSDI-Mini offers a range of options for connecting to existing and future 4K video equipment. The primary output format is selectable between UHD and DCI 4K, at frame rates from 23.98 to 60.0 fps. If the SDI link configuration is set to single-link 12G/6G-SDI or dual-link 3G-SDI, the first two SDI outputs carry the primary signal. A secondary signal is available on the third SDI output, displaying a scaled copy of the primary signal in HD or 2K format. The secondary signal is useful for monitoring or even recording the primary signal in a different format. Additionally, the on-screen menu can be displayed on both the primary and secondary outputs, or only on the secondary output, leaving the primary output "always clean". The SDI link configuration can also be set to quad-link 3G-SDI for connections with older 4K-compatible equipment, but no secondary output is available.
The 4KSDI-Mini is controlled via a two-wire RS485 serial connection. Operators can use a handheld remote control for quick camera adjustments via the on-screen menu. For live broadcast environments, third-party remote control panels (RCPs) are also available, allowing quick adjustments of paint and shading functions. PC control is possible via a USB-RS485 adapter and easy-to-use software utility supplied with the camera. Or, for complete system integration, the camera's full control protocol is simple and fully documented for developers to integrate into other control systems.
Shutter synchronisation is essential for multi-camera applications such as stereoscopic 3D, VR-360 or even volumetric video capture. Additionally, in live broadcast installations, cameras must be able to be genlock to a master sync reference in order to allow cuts/dissolves between cameras. Otherwise, cameras must be paired with frame synchronisers which can increase overall video delay. The 4KSDI-Mini accepts an HD tri-level sync signal via a dedicated HD-BNC input. If this signal is distributed to multiple cameras, microsecond-level shutter synchronisation between cameras can be achieved.
Features
- High-quality Sony CMOS sensors
- 12G / 6G / 3G / HD-SDI output formats
- 4K/UHD output or scaled 2K/HD output
- C-mount, passive MFT mount or active EF mount
- 10-bit 4:2:2, 4:4:4 or RAW output
- Compact rugged one-piece design
- Multi-camera synchronisation via tri-level sync
- Easy to configure via on-screen menu
Applications
- Aerial and vehicle recording
- Test range instrumentation
- Specialised video production
- Security and surveillance
|
|
Technical Specifications |
|
|
Output Modes |
4K, UHD, 2K, 1080p, up to 60 fps |
|
|
Optical Format |
4K/2K: 1" (16.0 mm diagonal) |
|
|
Sensor Type |
CMOS with global electronic shutter |
|
|
Sensor Options |
Colour (Bayer) or monochrome |
|
|
Dynamic Range |
73.6 dB |
|
|
Output Interface |
Single-link 12G/6G/3G/HD-SDI, dual-link 3G-SDI, quad-link 3G-SDI (SMPTE ST 292/424/2081/2082) |
|
|
Output Format |
10-bit 4:2:2(Y'Cb'Cr'), 4:4:4 (RGB) or RAW (Bayer) |
|
|
Exposure Control |
Automatic (adjusts exposure, gain and/or iris if available) or manual exposure |
|
|
Image Enhancement |
Gamma (1D LUT), master pedestal control, adjustable sharpness |
|
|
Colour Control |
Automatic white balance or calibrated presets, 3D LUT, colour correction matrix, RGB offsets, saturation control |
|
|
Synchronisation |
Tri-level Sync Input |
|
|
Dimensions |
62.0 mm × 62.0 mm × 42.1 mm |
|
|
Lens Mount |
passive MFT mount |
|
|
Camera Mounting Points |
4 sides: 1/4"-20 with 2× M4 × 0.7; Front face: 4× M4 × 0.7 |
|
|
Weight |
315 g |
|
|
Power Requirements |
7.5W, 7-19V DC |
|
|
Operating Temperature |
-30°C to 65°C, humidity 20-85% (non-condensing) |
|
|
Storage Temperature |
-40°C to 85°C, humidity 10-90% (non-condensing) |
|
|
Operational Shock/Vibration |
Tested to MIL-STD-810G Method 516.6, 3-axis 75G Shock and Method 514.6, 3-axis Cat. 20 Vibration |
Camera and Accessory Kit for 4KSDI-Mini, MFT mount
