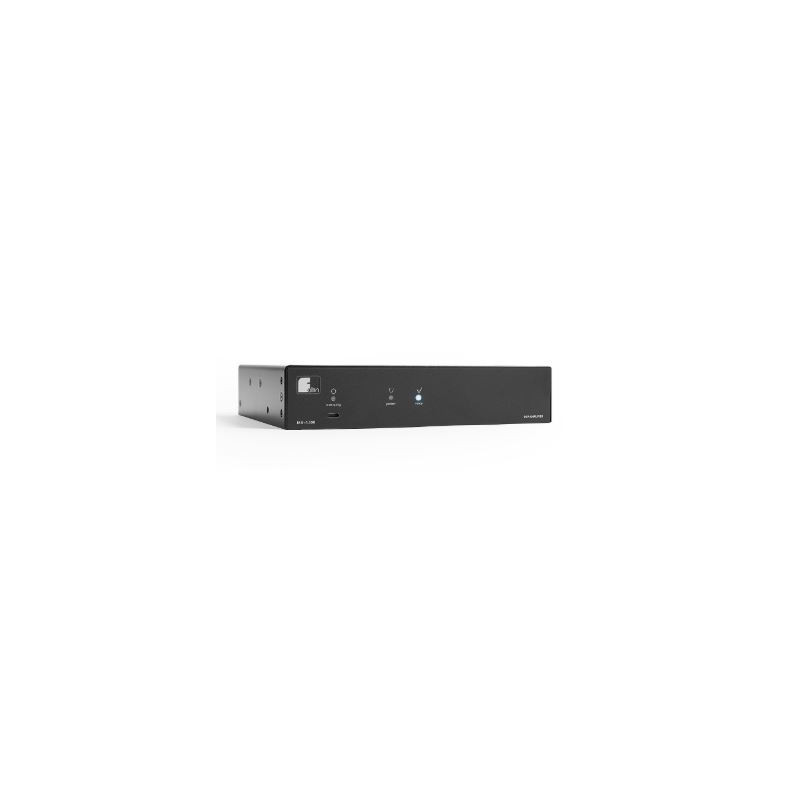

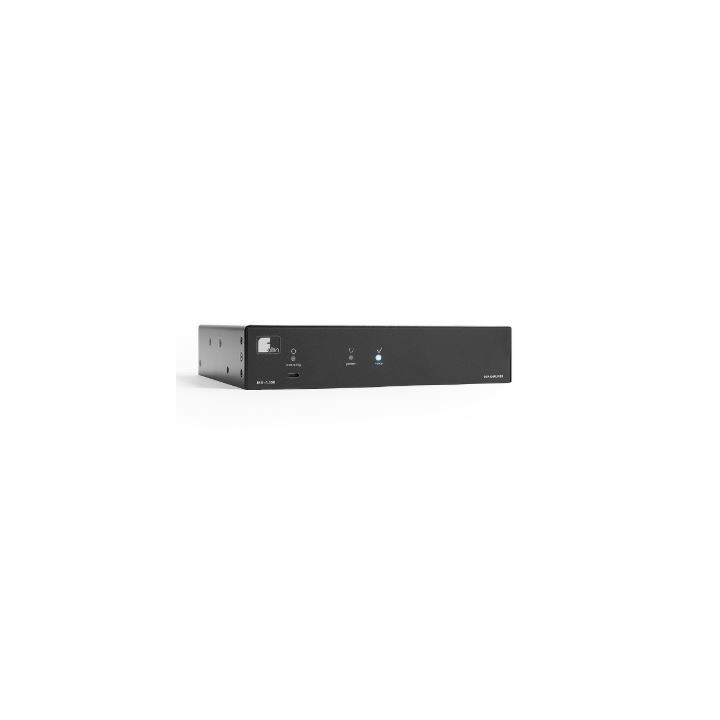

Fohhn MA-4.100 DAN - Matrix DSP Amplifier
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The MA-4.100 is a compact 4-channel digital power amplifier for multimedia applications and small sound system solutions. The DSP amplifier with 4 × 4 matrix is ideal for, for example, equipping conference and training rooms as well as for installation in multimedia kiosks. It can be easily integrated into multimedia controls via RS-485 and is easily configured with Fohhn Audio Soft via a USB-C port.
Dante and AES67
Audinate's Dante digital audio network is one of the most widely used standards in professional audio. This is why at Fohhn, we also equip many active speaker systems and amplifiers with Dante interfaces. High-quality uncompressed audio data transmission takes place via standard IP networks with low latency. All Fohhn devices with integrated Dante card also guarantee audio transmission according to the AES67 standard. Complex audio routing and redundant cabling are also possible.
Fibre optic transmitter to the endpoint
In the future, an innovative solution from Fohhn will also enable Dante signals to be transmitted via a fibre optic transmitter to the endpoint. The fibre optic transmitter cable is then directly connected to the active speaker system. Fohhn systems can be equipped with SFP transceivers for this purpose. This means that very long distances can be easily covered and interference is avoided, ensuring simple installation. In addition, we will continue to offer the option of connecting Dante signals conventionally, via copper cable with RJ-45 connection.
Features
- 4 × 100 W peak / 4 ohms
- Compact dimensions: 9.5" / 1 U, 170 mm installation depth
- Switchable phantom power on each input channel
- Two freely programmable switching contacts
- With Fohhn Airea connection
- Can be remotely controlled via Fohhn Net
- Temperature-controlled low-noise fan
- Auto Power Save for minimal standby power requirements
- Fohhn speaker presets guarantee maximum safety, reliability and excellent sound quality
|
|
Specifications |
|
|
weight |
1.2 kg |
|
|
dimensions (W × H × D) |
1 U / 1/2 19", 211 × 45 × 170 mm |
|
Electronics |
|
|
|
amplification technology |
class D |
|
|
amplifier outputs |
4 |
|
|
DSP routing (matrix) |
4 × 4 |
|
|
frequency response |
20 Hz – 20 kHz |
|
|
signal-to-noise ratio |
>103 dB/A |
|
|
THD+N |
0.08% |
|
|
dynamic range |
>120 dB |
|
|
password protection |
yes |
|
|
automatic power saving |
adjustable from 1 s to 12 h, or never active |
|
|
protection circuit |
overvoltage protection, overcurrent protection, overheating protection, short-circuit protection, DC protection, power-on delay, soft start and inrush current limiting |
|
|
power supply |
100 – 240 V AC 50/60 Hz, universal power supply with power factor correction (PFC) |
|
|
power consumption |
Maximum (RMS) 65 W, Standby state 7 W, Automatic power saving 2 W, Sleep 2 W |
|
|
heat dissipation |
max. 15 W, 51 BTU/h, 13 kcal/h |
|
|
temperature range |
0 – 40 °C |
|
|
cooling |
temperature-controlled fan |
|
|
output power |
4 x 65 W / 4 ohms, 4 x 35 W / 8 ohms (1 kHz, THD+N < 1 %) |
|
|
minimum impedance |
4 ohms |
|
|
input channels |
4 |
|
Controller |
|
|
|
digital signal processors |
1 |
|
|
independent limiters |
20 |
|
|
FIR filter |
yes |
|
|
input gain |
-80 dB – +12 dB |
|
|
routing gain |
-80 dB – +12 dB |
|
|
output gain |
-80 dB – +12 dB |
|
|
EQ |
8 × 10 fully parametric filters, Gain +/-12 dB, Frequency 10 Hz – 20 kHz, Q 0.1 – 100 |
|
|
3-band selective limiting |
bass / mids / treble |
|
|
limiter / compressor |
8 |
|
|
noise gate |
8 |
|
|
delay |
4 × 0 – 145 ms (0 – 50 m) outputs, 4 × 0 – 30 ms (0 – 10 m) inputs |
|
|
Crossover filter |
8 × Linkwitz/Riley 4th order, 24dB/octave, High-pass 10 Hz – 20 kHz, Low-pass 10 Hz – 20 kHz |
|
|
user presets |
100 |
|
|
speaker presets |
100 |
|
|
system latency |
1.2 ms |
|
|
band-specific time constants |
yes |
|
|
filtering technology |
80-bit double precision |
|
|
input |
Analogue or DANTE 32 kHz – 96 kHz, 16/24 bits, AES/EBU |
|
|
Input DSP processing |
yes |
|
Remote control and remote monitoring |
||
|
remote control |
Fohhn-Net via RS-485, Fohhn Audio Soft, USB-C |
|
|
remote monitoring |
temperature, protection, power supply, Fohhn Net, Fohhn Audio Soft |
|
|
switching contact |
Load preset, Standby On/Off |
|
Display (front) |
|
|
|
Ready LED |
blue = Power on, blue flashing = Signal |
|
|
Protection LED |
red = Error / Protection / Standby |
|
|
USB configuration LED |
blue = Host, remote control via USB |
|

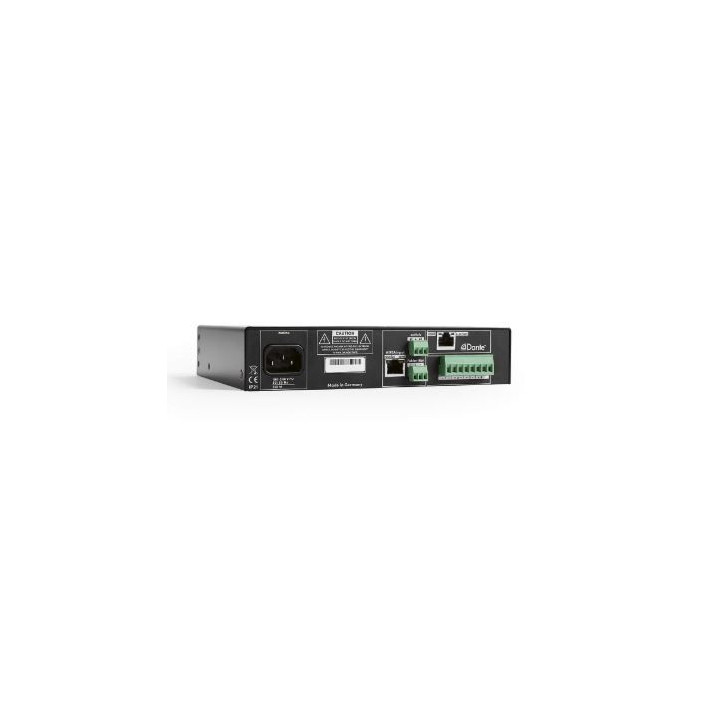

Connections and controls |
||
|
outputs |
Phoenix 8-pin, max. 3.3 mm² flexible, 3.3 mm² rigid |
|
|
USB Configuration |
1 × USB-C port |
|
|
Airea Network |
1 × RJ45 |
|
|
mains connection |
IEC socket |
|
|
switching contact 1 and 2 |
1 × Phoenix 3-pin |
|
Display (rear) |
|
|
|
receive / transmit LED |
Remote control, Fohhn-Net |
|
|
Dante input interface |
||
|
latency |
Dante +0.6 ms |
|
|
inputs |
1 × RJ-45 100BASE-T Ethernet, Dante, 4 × 48 kHz |
|
|
AES67 support |
Yes |
|
