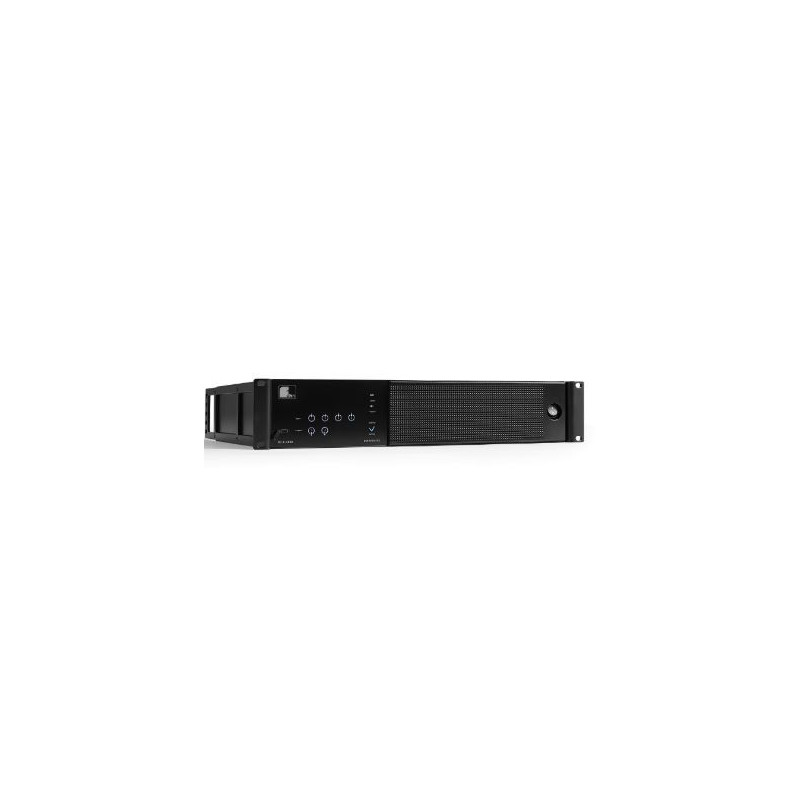

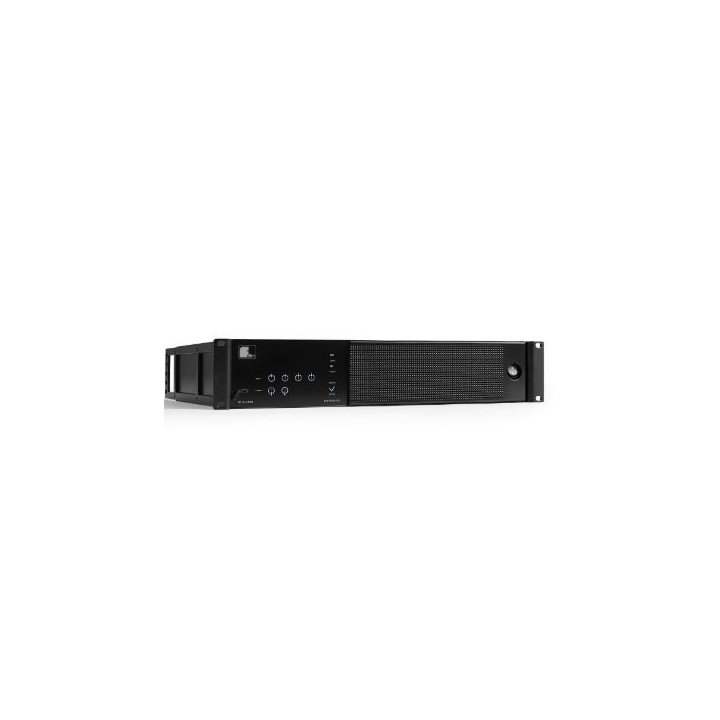

Fohhn - DI-2.4000 AES - DSP power amplifier
Fohhn 6012-0T9U0 - DI-2.4000 AES - DSP power amplifier
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The DI-2.4000 is a 4-channel digital amplifier manufactured in Germany. The DSP amplifiers developed and manufactured by Fohhn offer high power density and excellent sound. The amplifiers are designed for mobile sound systems and fixed installations. They provide all essential functionalities and almost unlimited connectivity in terms of audio inputs. Whether AES/EBU, Dante or Analogue – they offer maximum flexibility through interchangeable connection modules. The corresponding speaker presets ensure optimal performance and reliability.
Digital audio everywhere
Almost all Fohhn devices are equipped with transformer-balanced digital AES/EBU inputs (AES-3 standard). As AES/EBU is a common standard format, all digital audio networks have AES/EBU interfaces. Fohhn thus enables maximum connectivity for fully digital and interference-free transmission of audio signals.
Features
- Output power: 2 × 4000 W / 4 ohms / 100 V / 70 V
- Can be operated and controlled remotely via Fohhn Net
- Extended DSP, real-time controllable with Fohhn Audio Soft
- Maintains peak power for several seconds
- Temperature-controlled fan, low noise
- Auto Power Save for minimal energy requirements in standby
- Installation size: 2 U / 19"
- Lightweight, only 9.8 kg
|
|
Specifications |
|
Features |
|
|
|
weight |
9.8 kg |
|
|
dimensions (W × H × D) |
2 U / 19", 485 × 89 × 425 mm |
|
Electronic Features |
|
|
|
amplification technology |
Class D |
|
|
amplifier outputs |
2 |
|
|
DSP routing (matrix) |
4 × 2 |
|
|
frequency response |
20 Hz – 20 kHz |
|
|
signal-to-noise ratio |
>100 dB/A |
|
|
THD+N |
0.15% (1 kHz, 8 ohms, 3 dB below clipping) |
|
|
dynamic range |
>120 dB |
|
|
password protection |
yes |
|
|
automatic power saving |
adjustable from 1 s to 12 h, or never active |
|
|
protection circuit |
overvoltage protection, overcurrent protection, overheating protection, short circuit protection, DC protection, power-on delay, soft start and inrush current limiting |
|
|
power supply |
100 – 240 V AC 50/60 Hz, universal power supply with power factor correction (PFC) |
|
|
power consumption |
Maximum (RMS) 1800 W, standby state 80 W, automatic power saving 10 W, standby 5 W, on/off switch / remote off 2 W |
|
|
heat dissipation |
Maximum 300 W, 1020 BTU/h, 258 kcal/h (Pink noise, crest factor 6 dB, 1/4 Pmax) |
|
|
temperature range |
0 – 40 °C |
|
|
cooling |
temperature-controlled fan |
|
|
output power |
2 × 4000 W / 4 ohms / 100 V / 70 V, 2 × 2000 W / 8 ohms (1 kHz, THD+N <1%) |
|
|
minimum impedance |
4 ohms |
|
|
input channels |
4 |
|
|
Controller |
|
|
|
digital signal processors |
2 |
|
|
independent limiters |
12 |
|
|
FIR filter |
yes |
|
|
input gain |
-80 dB – +12 dB |
|
|
routing gain |
-80 dB – +12 dB |
|
|
output gain |
-80 dB – +12 dB |
|
|
equaliser |
6 × 10 full parametric filters, Gain +/-12 dB, Frequency 10 Hz – 20 kHz, Q 0.1 – 100 |
|
|
selective 3-band limiting |
bass / midrange / treble |
|
|
limiter / compressor |
6 |
|
|
noise gate |
6 |
|
|
delay |
2 × 0 – 350 ms (0 – 120 m) outputs, 4 × 0 – 88 ms (0 – 30 m) inputs |
|
|
crossover filter |
6 × Linkwitz-Riley 4th order (24 dB/octave), high-pass 10 Hz – 20 kHz, low-pass 10 Hz – 20 kHz |
|
|
user presets |
100 |
|
|
speaker presets |
100 |
|
|
system latency |
1.2 ms |
|
|
band-specific time constants |
yes |
|
|
filtering technology |
80-bit double precision |
|
|
input |
AES/EBU 32 kHz – 96 kHz, 16/24 bit |
|
|
Input DSP Processing |
yes |
|
Remote Control and Remote Monitoring |
||
|
remote control |
Fohhn-Net via RS-485, Fohhn Audio Soft, USB-C |
|
|
remote monitoring |
temperature, protection, signals, power supply, Fohhn Net, Fohhn Audio Soft |
|
|
error message contact |
1 × Relay, 2 × UM, Phoenix 3-pin |
|
|
switching contact |
preset loading, standby on/off |
|
Display (front) |
|
|
|
receive/transmit LED |
remote control, Fohhn-Net |
|
|
ready LED |
blue = Powered on, flashing blue = Signal |
|
|
protection LED |
red = Error / Protection / Standby |
|
|
input LED |
4 × input signal LED, white = signal (> -50 dBFS), red = clipping (> -3 dBFS) |
|
|
output LED |
2 × output signal LED, white = signal (> -50 dBFS) |
|
|
USB configuration LED |
configuration via USB |
|

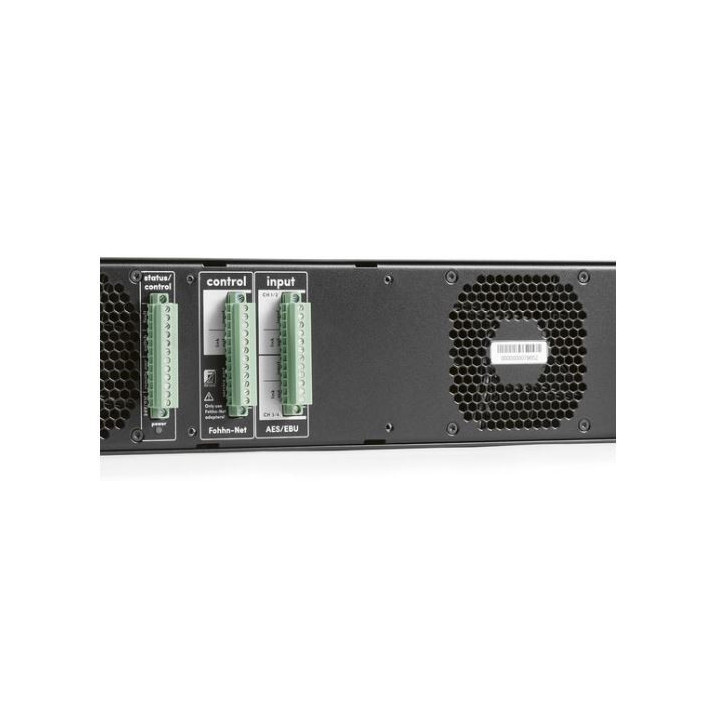

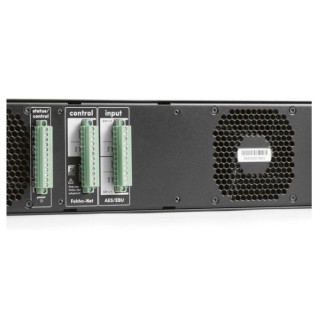

Connections and Controls |
||
|
controls |
On/off switch |
|
|
USB Configuration |
1 × USB-C socket |
|
|
remote power input / output |
2 × Phoenix 2-pin |
|
|
power supply for small external devices 24 V / 5 W |
1 × Phoenix 2-pin |
|
|
24 V / 5 W power LED |
green = on |
|
|
mains connection |
1 × PowerCON |
|
|
fault contact (open/closed) |
1 × Phoenix 3-pin |
|
|
switching contact 1 and 2 |
1 × Phoenix 3-pin |
|
