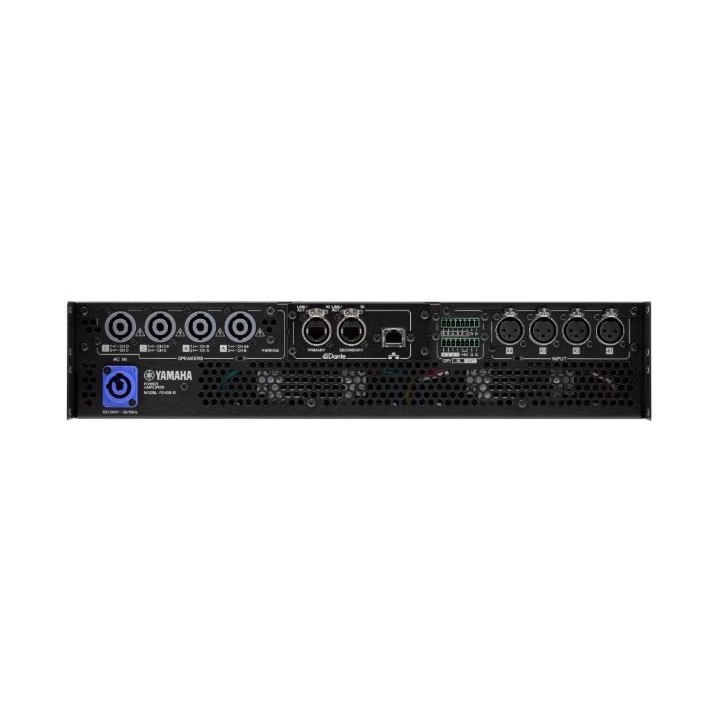

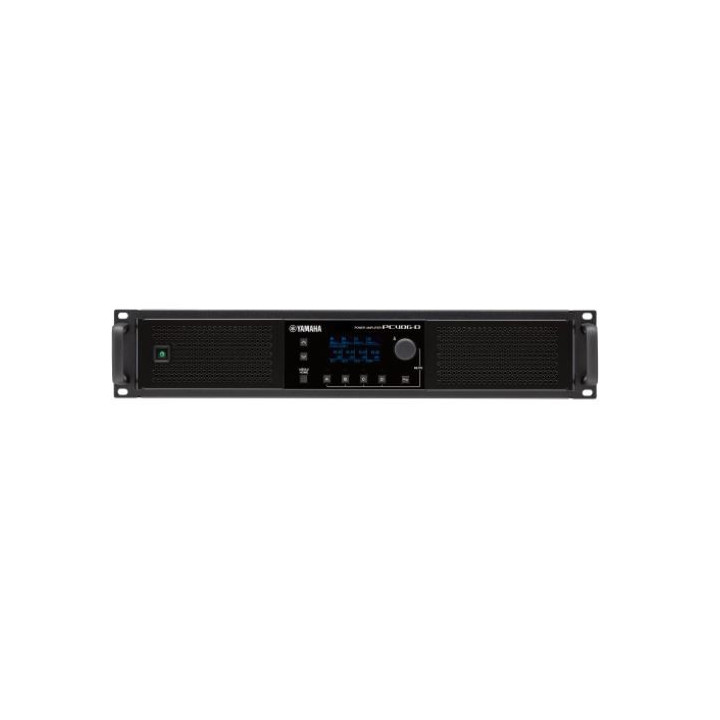

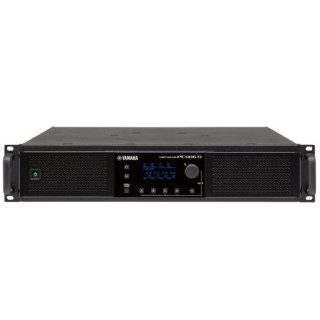

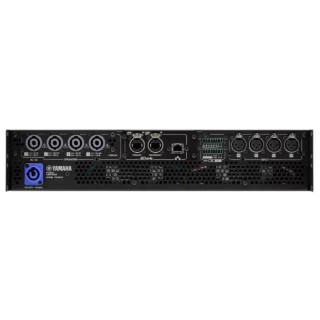

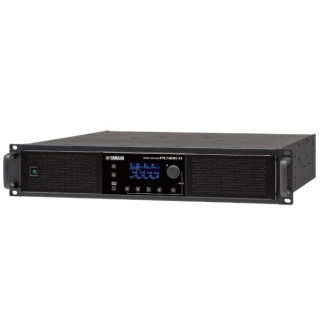

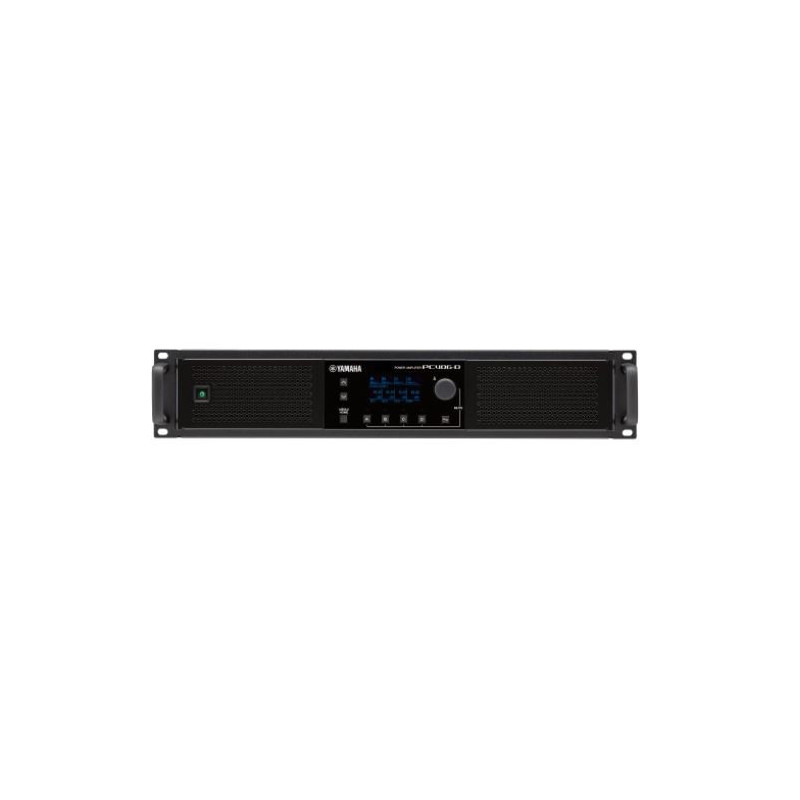

Yamaha PC406-D - Power Amplifier
2,891.89 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 600W x 4 at 8Ω.
Features
- 4 x 600W at 8Ω
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control
|
|
Specifications |
|
|
Output Power (1kHz, Non-clip, 20msec Burst, All channels driven) |
16Ω - 300W x 4 |
|
|
Amplifier Class |
Class D, Single ended output |
|
|
Total Harmonic Distortion |
0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven) |
|
|
Frequency Response |
+0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz) |
|
|
Crosstalk |
≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) |
|
|
S/N Ratio |
109dB (8Ω, Gain setting = 32dB, A-weighted) |
|
|
Maximum Input Voltage |
+25dBu |
|
|
Input Impedance |
20kΩ (balanced) |
|
|
Sampling Frequency Rate |
96kHz |
|
|
Dimensions (H x W x D) |
3.46" (88 mm) x 18.90" (480 mm) x 20.79" (528 mm) |
|
|
Weight |
34.4 lbs (15.6 kg) |
