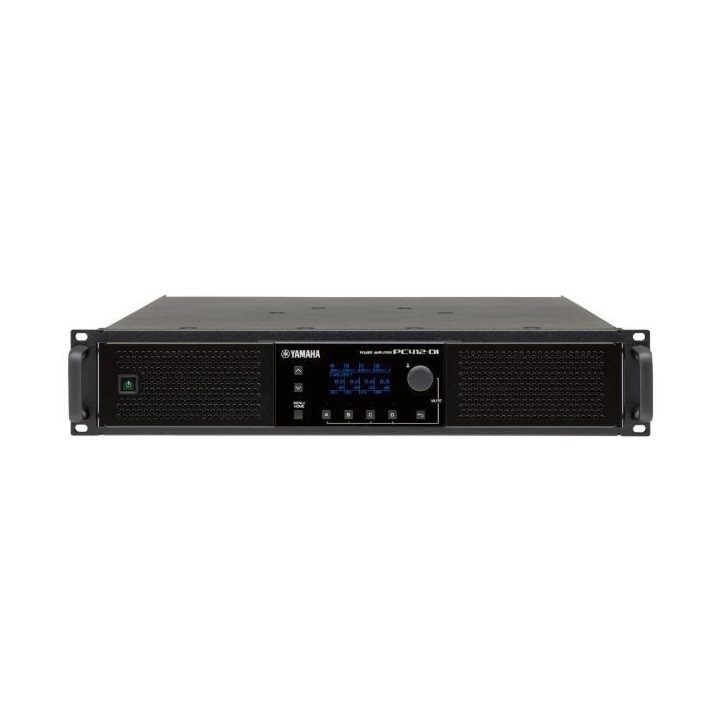

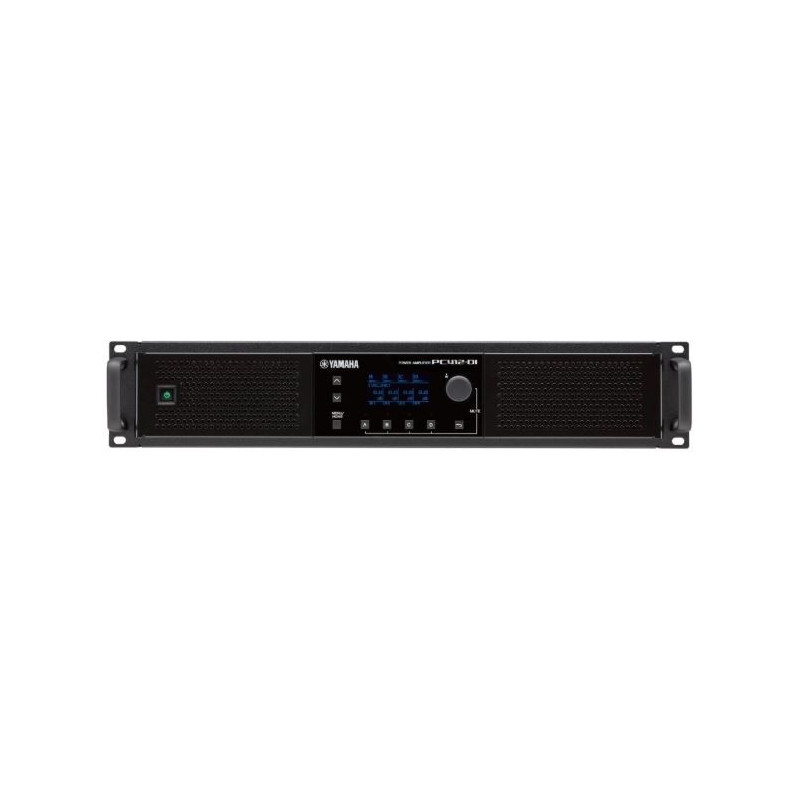

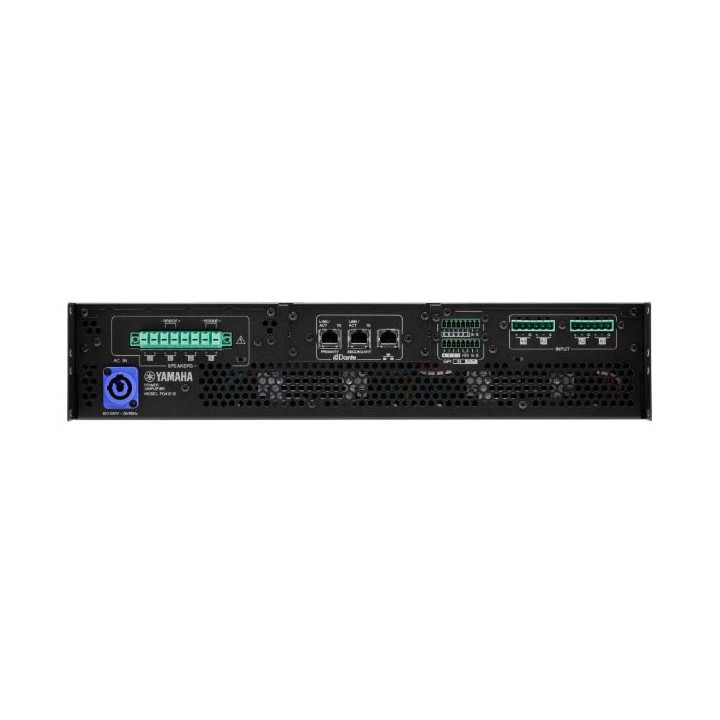

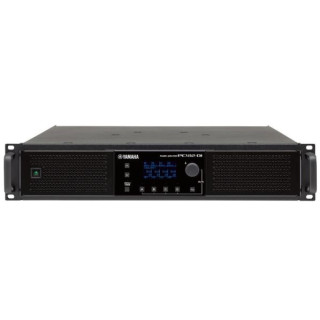

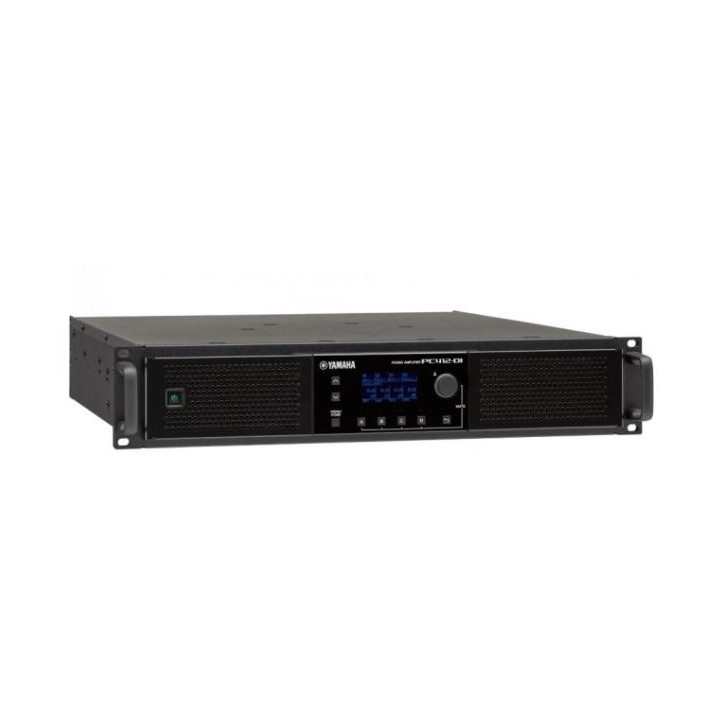

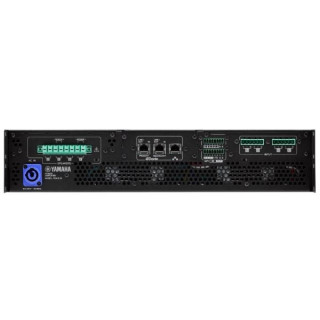

Yamaha PC412-DI - 4 Channel Amplifier
3,479.78 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The PC-D/DI series is far more than just a range of high-power amplifiers. The remarkable 20 x 8 input matrix capability of the PC-D/DI series amplifiers, combined with Dante I/O, offers spectacular improvements in the versatility of any system. Equipped with powerful integrated speaker processors as standard. The PC-D/DI series is also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide custom remote controls if required. 1200W x 4 at 8Ω. Switchable for low and high impedance speaker systems. Features - 4 x 1200W at 8Ω, 4 x 1200W at 100V/70V - Powerful 20 x 8 input matrix function - Sampling frequency up to 96k - 16-channel Dante input/output - Speaker processor with 16-band parametric equaliser, crossover filter, filters, delay and limiter - Yamaha speaker presets - Remote control via ProVisionaire Touch/Control
|
|
Specifications |
|
|
Output power (1kHz, No clipping, 20ms Burst, All channels operating) |
16Ω - 600W x 4, 8Ω - 1200W x 4, 4Ω - 1900W x 4, 2Ω - 2500W x 4, 8Ω (BRIDGE mode) - 3800W x 2, 4Ω (BRIDGE mode) - 5000W x 2 |
|
|
Amplifier class |
Class D, Unbalanced output |
|
|
Total harmonic distortion |
0.01% (8Ω, 1kHz, 10W, All channels operating), 0.1% (4Ω, 1kHz, Half power, All channels operating), 0.01% (100V/70V, 1kHz, 10W, All channels operating), 0.1% (100V/70V, 1kHz, Half power, All channels operating) |
|
|
Frequency response |
+0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz) |
|
|
Crosstalk |
≦ -60dB (8Ω, 1kHz, Half power, A-weighted 150Ω shunt input) |
|
|
Signal-to-noise ratio |
112dB (8Ω, Gain setting = 32dB, A-weighted) |
|
|
Maximum input voltage |
+28dBu |
|
|
Input impedance |
20kΩ (balanced) |
|
|
Sampling frequency |
96kHz |
|
|
Dimensions (H x W x D) |
88 mm (3.46") x 480 mm (18.90") x 528 mm (20.79") |
|
|
Weight |
16 kg (35.3 lbs) |
