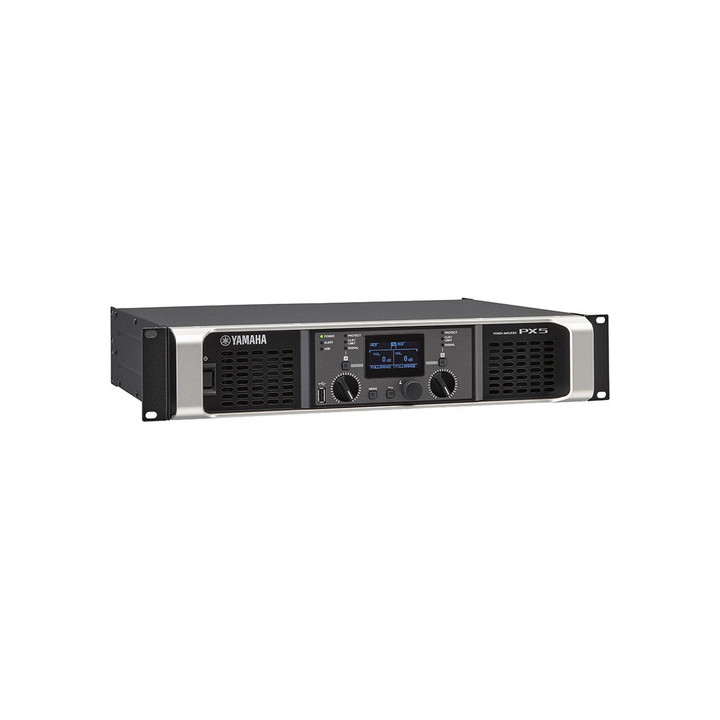

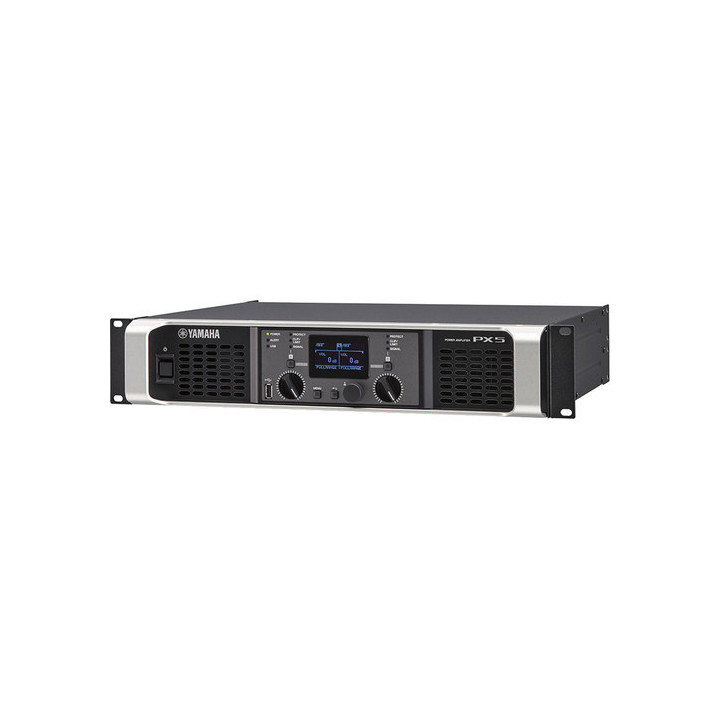

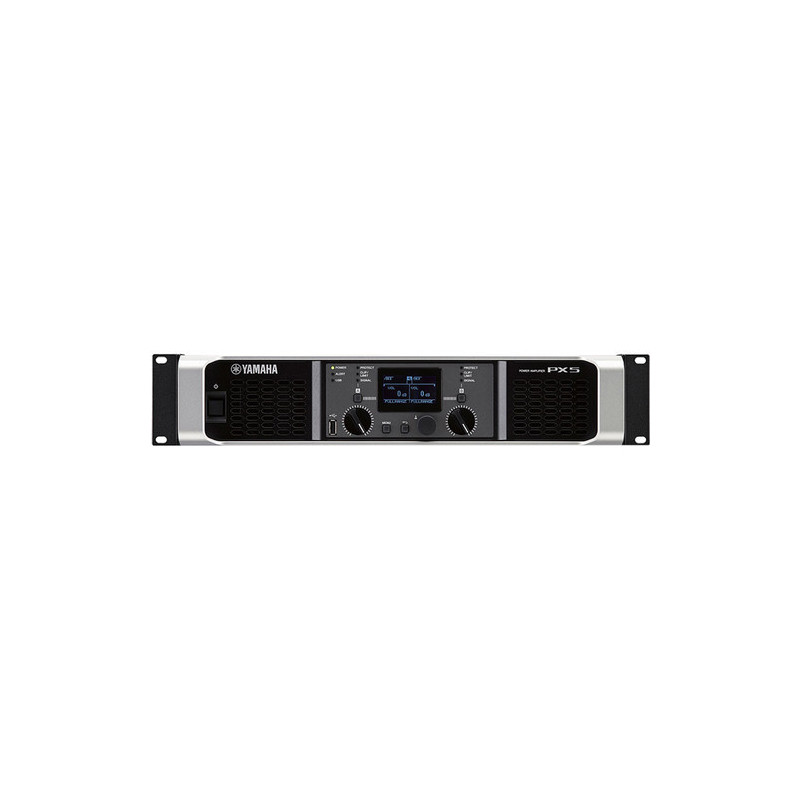

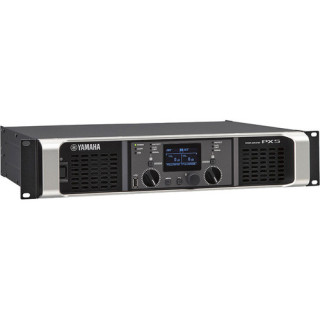

Yamaha PX5 - Amplifier 2 x 500 Watt / 8 Ohm - 2U
878.98 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha PX5 stereo power amplifier delivers 500W at 8 Ohms in a lightweight chassis and is suited to a wide variety of sound reinforcement applications. As part of the brand's PX series of power amplifiers, it features a Class D engine with a unique custom LSI chip, and uses PLL technology for improved efficiency and reduced noise. Power Boost mode combines the output power of two channels into one, enabling significantly higher mono power levels to be achieved (the number of available channels is then halved).
The built-in DSP functions include PEQ, delay, active filter and limiter. They enable detailed configuration of parameters such as input and output routing, input sensitivity, amplification gain and speaker impedance. The D-Control multi-band dynamic processor delivers clear, consistent sound at any output level by shaping the frequency response of each speaker for front-of-house or monitor configurations.
The setup assistant saves time during installation by assigning optimised speaker settings matching your system configuration. It can be used in basic mode for quick setup or in advanced mode for more precise control of DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and configurations.
For secure operation, the panel lock function ensures your settings remain protected. With its robust chassis and carrying handle, the PX5 is designed to withstand intensive use on the road.
Features
- Class D amplification engine with unique custom LSI chip and PLL technology
- Power Boost mode combines the output power of two channels into one
- The setup assistant enables system configuration by assigning optimised speaker settings that can be saved as presets
- Digital input and output routing (dual, parallel, single and SUM)
- DSP functions include PEQ, active filter, filters, delay and limiter, accessible via LCD screen
- D-Contour multi-band dynamic processing shapes speaker frequency response for specific applications
- Basic mode for quick setup and advanced mode for more precise control

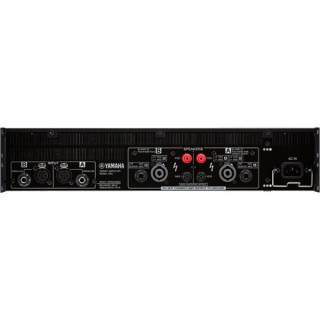

- Flexible connectivity with XLR and 6.35mm TRS inputs and terminal block, speakON and 6.35mm jack outputs
- Presets can be saved to a USB drive for use with other amplifiers and configurations
- Panel lock function to secure settings
- Two variable-speed fans with 16 levels
- Lightweight chassis
|
|
Specifications |
|
|
Power amplifier |
|
|
|
Number of channels |
2 |
|
|
Rated power |
8 Ohms: |
|
|
Amplifier class |
Class D |
|
|
Performance |
|
|
|
Frequency response |
20 Hz to 20 kHz ±1 dB (at 1 W, 8 Ohms) |
|
|
Input impedance |
10 kilohms (Unbalanced) |
|
|
Maximum gain |
36.3 dB (at 8 Ohms) |
|
|
Maximum input level |
+24 dBu |
|
|
Signal-to-noise ratio |
100 dB |
|
|
THD+N |
0.1% (1 kHz, at 10 W) |
|
|
Crosstalk |
<-60 dB |
|
|
Signal processing |
|
|
|
Sampling frequency |
48 kHz |
|
|
A/D D/A conversion |
A/D: 24-bit, 128x oversampling |
|
|
Latency |
1.5 ms |
|
|
Audio delay |
Adjustable up to 74 ms |
|
|
Equaliser |
6-band parametric equaliser |
|
|
Filters |
High-pass: |
|
|
Limiting |
Yes |
|
|
Connectivity |
|
|
|
I/O |
2 x 3-pin XLR input |
|
|
USB |
1 x USB Type-A (USB 2.0) |
|
|
Power supply |
|
|
|
AC mains power supply |
120 VAC, 60 Hz |
|
|
Power consumption |
4 Ohms: |
|
|
Physical characteristics |
|
|
|
Cooling |
2 x Fan (Variable speed) |
|
|
Operating temperature |
32 to 104°F / 0 to 40°C |
|
|
Storage temperature |
-4 to 140°F / -20 to 60°C |
|
|
Dimensions |
18.9 x 3.5 x 15.3" / 480.0 x 88.0 x 388.0 mm |
|
|
Weight |
15.2 lb / 6.9 kg |
