Tascam - 4 In Analog-Dante Converter with DSP Mixer, XLR

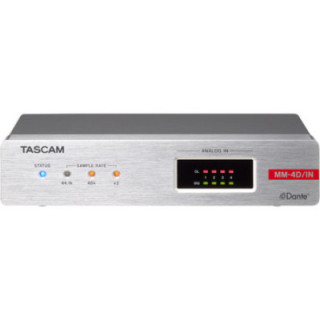

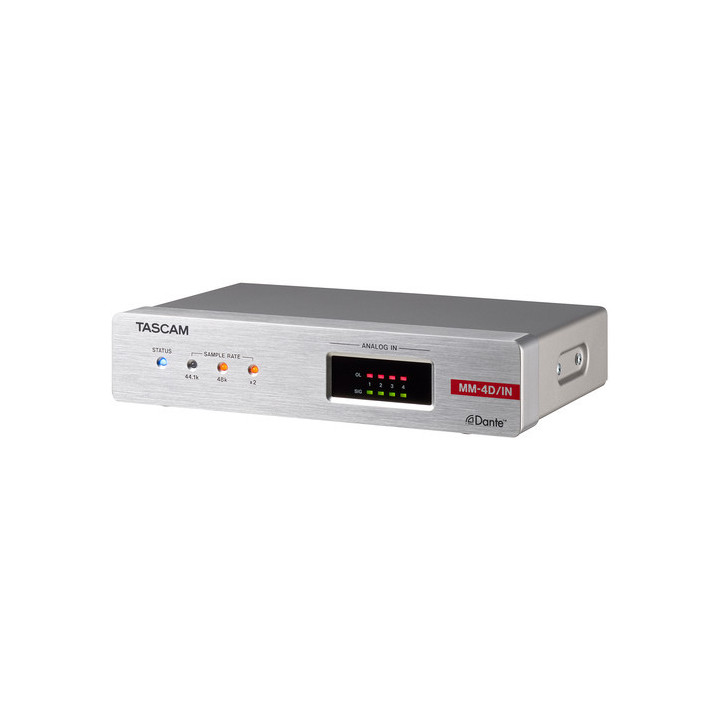

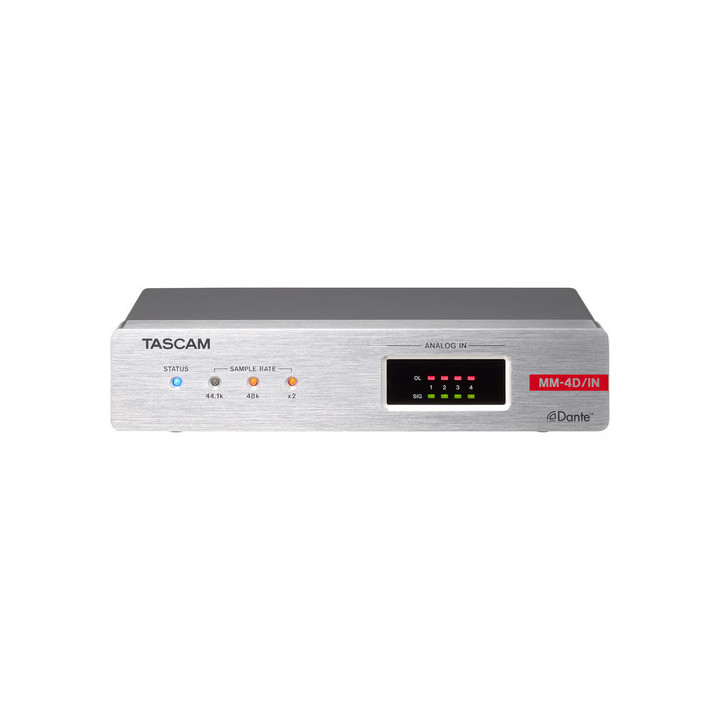

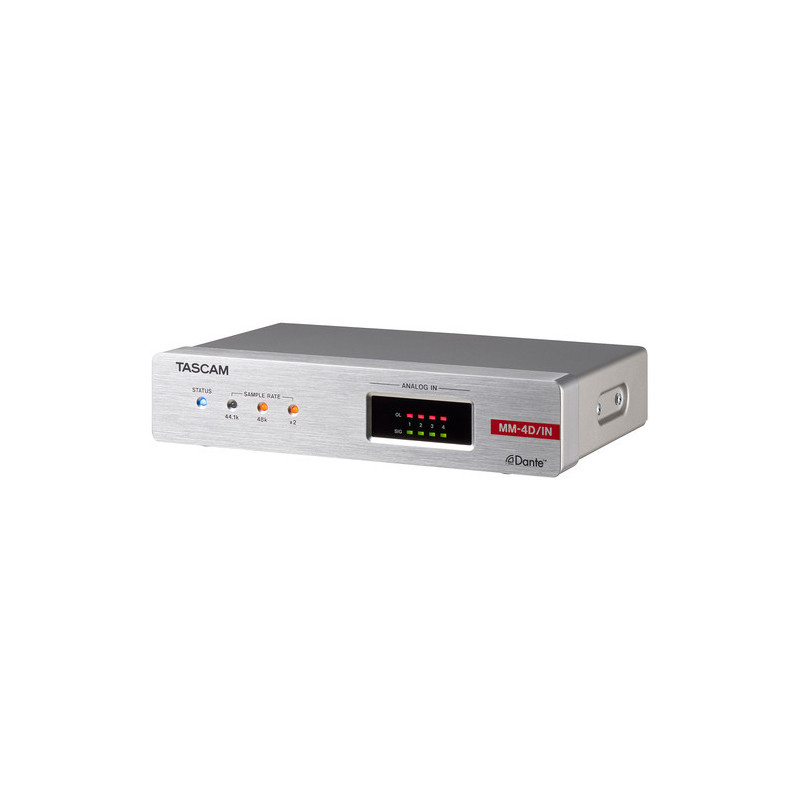

Tascam MM-4D/IN-X - 4 In Analog-Dante Converter with DSP Mixer, XLR
838.10 CHF Inc. VAT
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
The Tascam MM-4D/IN-X 4-channel mic/line input Dante converter with integrated DSP mixer can be used to convert 4-channel mic/line input signals on XLR connectors to 4-channel Dante input/output signals for professional audio applications.
The MM-4D/IN-X Dante input/output converter features level control and is compatible with Dante Domain Manager software, which provides security functions, enables the use of extended networks and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two mounting brackets are included.
Features

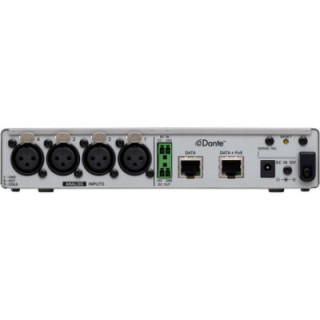

- 4-channel mic/line input with phantom power (+48v) support on 3-pin XLR connectors
- 4 Dante inputs/outputs
- Supports PoE (Power over Ethernet)
- Sampling frequency up to 24-bit / 96 kHz
- Supports Dante daisy chaining, which allows connection of two compact Dante processor models without a network switch
- Compatible with Dante Domain Manager and Dante AES67 mode
- Flexible scene preset function allows you to work in different situations (up to 50 presets)
- Two types of user control software available for Windows/Mac/iOS/Android devices:
- TASCAM DCP CONNECT, for integrators: input/output routing selection, complete system DSP/design/scene settings, etc.
- TASCAM EZ CONNECT, for end users: simple application design for necessary functions such as zone volume adjustments, etc.
- Remote control via Dante
- Half-rack format
- Equipped with indicators showing LAN/Dante connection status and sampling frequency
- Equipped with signal indicators monitoring digital input/output signals
- Configurable reference level (remote control only)
- Surface mounting adapters for under-desk installation included
|
|
Specifications |
|
|
General |
|
|
|
Supported formats |
44.1/48/88.2/96 kHz, 16/24 bit, 4 channels |
|
|
Input/Output |
|
|
|
Connector |
RJ-45 |
|
|
Transmission protocol |
Dante |
|
|
Gigabit Ethernet |
1000 BASE-T (IEEE 802.3ab) |
|
|
Cable |
Category 5e or higher STP cables |
|
|
Analogue inputs |
|
|
|
Connector |
3-pin XLR connectors (1: ground, 2: hot, 3: cold) |
|
|
Minimum input level |
-70 dBu |
|
|
Maximum input level |
+26 dBu |
|
|
Input impedance |
2.0 kOhms or more |
|
|
Audio performance |
|
|
|
Equivalent input noise |
-125 dBu (150 Ohms, 22 kHz + A low-pass filter, JEITA) |
|
|
Frequency response |
Dante Input / Dante Output : |
|
|
Distortion |
0.003 % (for −1 dBFS input, sampling frequency 44.1/48/88.2/96 kHz, JEITA) |
|
|
Signal-to-noise ratio |
108 dB (sampling frequency 44.1/48/88.2/96 kHz, JEITA) |
|
|
Crosstalk |
100 dB (sampling frequency 44.1/48/88.2/96 kHz, JEITA) |
|
|
Dynamic range |
108 dB (sampling frequency 44.1/48/88.2/96 kHz, JEITA) |
|
|
Other characteristics |
|
|
|
Power supply |
PoE Class 0 |
|
|
Power consumption |
7.5 W |
|
|
Operating temperature |
0 to 40°C / 32 to 104°F |
|
|
Dimensions (W x H x D) |
21.4 x 4.4 x 13.6 cm / 8.4 x 1.7 x 5.4" |
|
|
Weight |
885.0 g / 31.2 oz |
