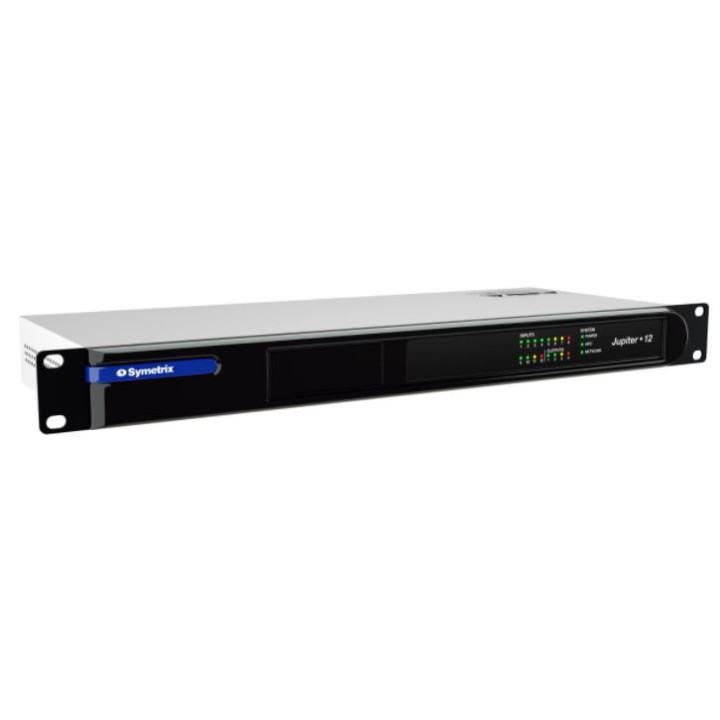

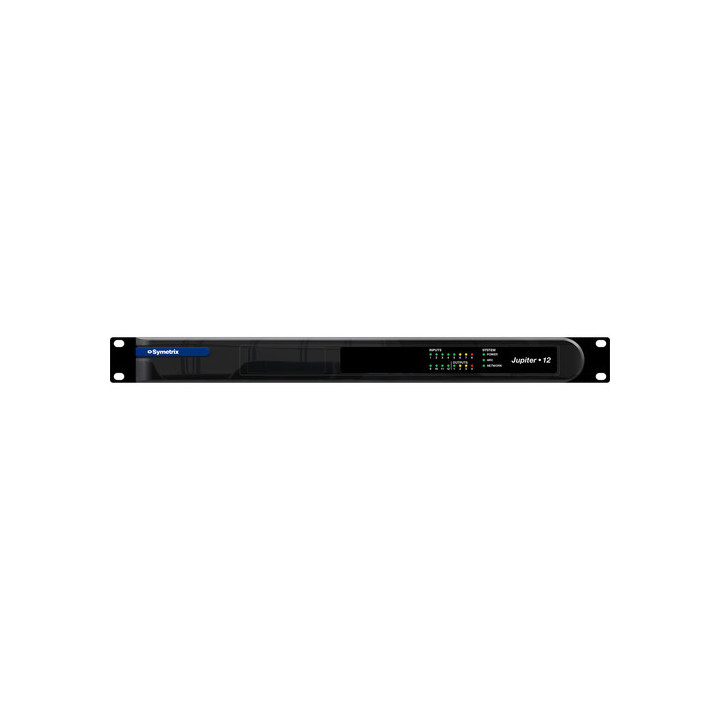

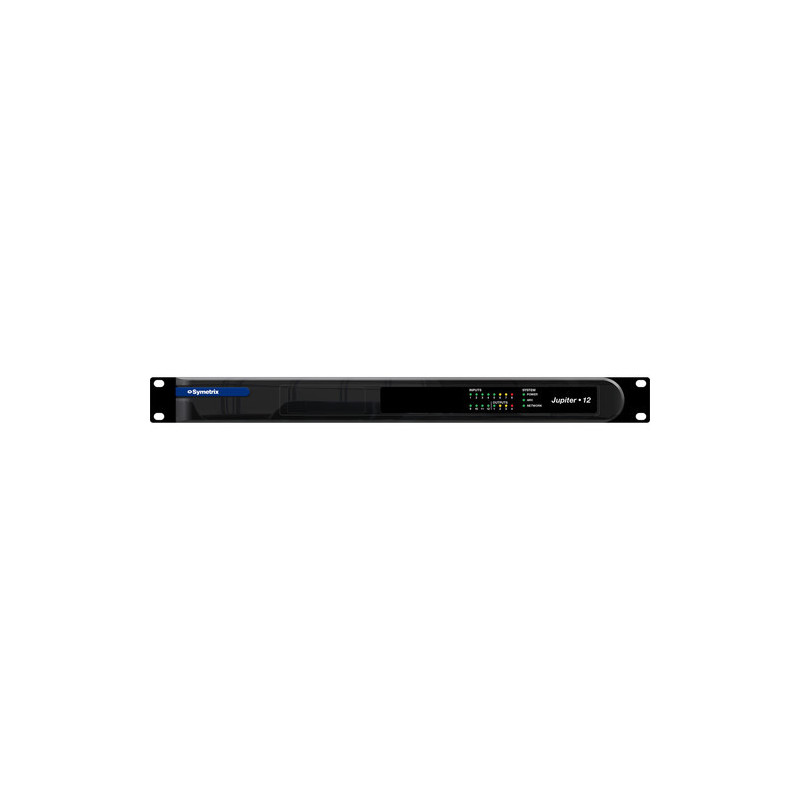

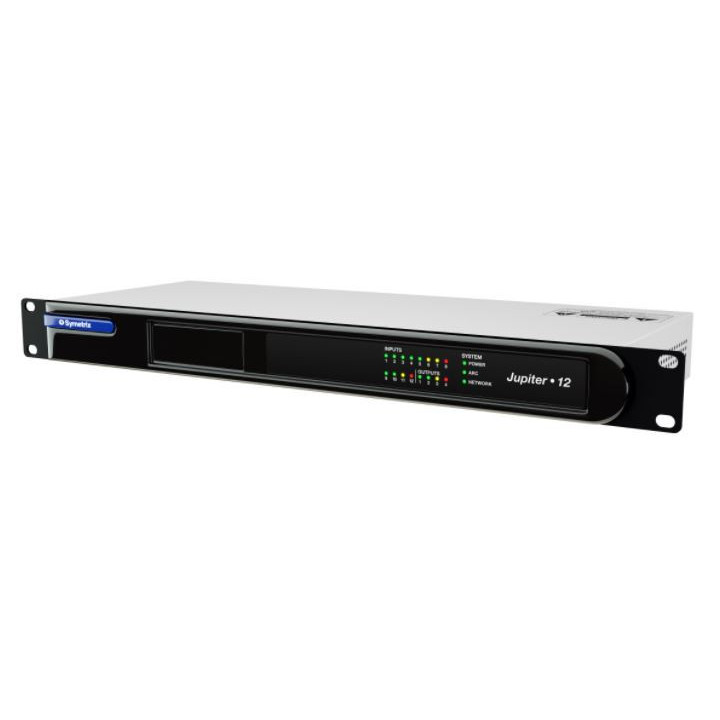

Symetrix - Jupiter 12
Symetrix 80-0042-D - Jupiter 12
2,338.66 CHF Inc. VAT
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
The Symetrix Jupiter 12 App Configurable 12 x 4 DSP offers a turnkey audio processing solution with zero learning curve. It uses "apps" in the same way as a smartphone. There are apps for mixing and routing, sound reinforcement and distribution, sound enhancement and special-purpose signal processing. By using pre-designed apps, users significantly reduce setup and installation time. Each app performs a specific audio task and the library of downloadable Jupiter apps continues to grow, ensuring that your hardware is future-proof., Features, - A turnkey audio processing solution using downloadable 'apps' optimised for specific venues and systems, - App categories include mixing and routing, sound reinforcement and distribution, sound enhancement and special-purpose signal processing, - Pre-designed apps significantly reduce setup and installation time, - Features 12 mic/line inputs with phantom power and 4 line outputs, - Ethernet, two ARC ports, two external control inputs and four logic outputs, - Jupiter offers you a controllable and easy-to-use audio DSP., Hardware and software, - Each Jupiter hardware offering uses the same software and DSP processes, - Just like using productivity apps on your smartphone, you use Jupiter apps to perform specific audio tasks with a simple download to the Jupiter hardware. Leverage one of Jupiter's multiple personalities - no design time, zero learning curve. Jupiter handles all tasks, from auto-mixing to speaker management. Plus, the ever-growing library of downloadable Jupiter apps protects your hardware investment for the future
|
|
Specifications |
|
|
Input |
|
|
|
Inputs |
12 switchable mic/line level balanced |
|
|

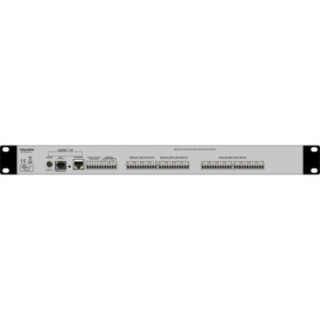

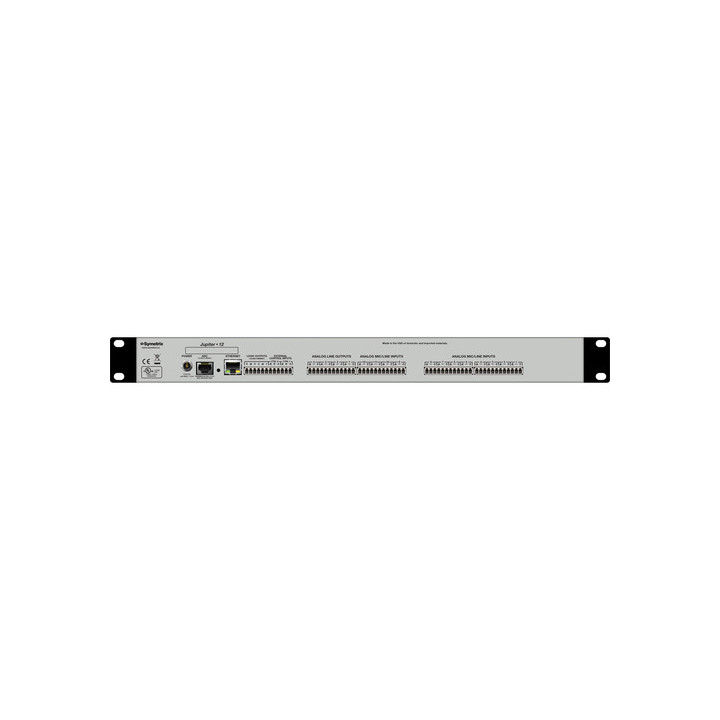

Connectors |
0.15" (3.81mm) terminal blocks |
|
|
Nominal input level |
Software selectable: +4dBu mic level / -36dBu mic level (20dB headroom) |
|
|
Gain |
+40dB (mic preamp gain) |
|
|
Trim |
±24dB (input) |
|
|
Maximum input level |
+23dBu |
|
|
Input impedance |
>18K Ohms (balanced), >9K Ohms (unbalanced), >2K Ohms (phantom power on) |
|
|
CMRR |
>50dB at 1kHz (unity gain) |
|
|
Equivalent input noise |
Mic preamp equivalent input noise: <-125dBu / 22Hz - 22kHz (100 Ohms source impedance) |
|
|
Phantom power |
+20V DC (20mA max per input) |
|
|
Output |
|
|
|
Outputs |
4 line level |
|
|
Connectors |
0.15" (3.81mm) terminal blocks |
|
|
Nominal output level |
+4dBu line level (20dB headroom) |
|
|
Maximum output level |
+24dBu |
|
|
Output impedance |
200 Ohms (balanced), 100 Ohms (unbalanced) |
|
|
System |
|
|
|
Sampling frequency |
48kHz |
|
|
Frequency response |
20Hz - 20kHz (±0.5dB) |
|
|
Dynamic range |
>110dB A-weighted (input to output) |
|
|
THD + Noise |
<-85dB unweighted (1kHz at +22dBu with 0dB gain) |
|
|
Crosstalk |
Inter-channel crosstalk: <-90dB at 1kHz (typical) |
|
|
Latency |
<1.6ms (input to output with all DSP inactive) |
|
|
General |
|
|
|
Power supply |
AC 100 - 240V (50/60Hz) |
|
|
Power consumption |
25W (max) |
|
|
Dimensions (WxHxD) |
18.91 x 1.72 x 7.5" (48.02 x 4.37 x 19.05cm) |
