Sony PVM-X1800 - 18inch Professional Video Monitor

Name: Sony PVM-X1800 - 18inch Professional Video Monitor
Brand: Sony
SKU: 1022845
Price: 8413 CHF
Availability: BackOrder

SKU 1022845

EAN 4548736118775

Sony PVM-X1800 - 18inch Professional Video Monitor

18.4-inch 4K HDR TRIMASTER high grade picture monitor

... learn more

Visuals Price

8,413.00 CHF VAT excl.

9,094.45 CHF Inc. VAT

Made to order

Delivery
- Shipped in 1 to 2 weeks
In-store pickup
- Available in 1 to 2 weeks

Description

Description

Sony 18-inch professional video monitor

4K HDR picture monitors with colour matching to the BVM-HX310 4K master monitor, ideal for various 4K productions

The PVM-X1800 4K HDR high-quality picture monitor incorporates Sony's high-end LCD panel and delivers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor, thus facilitating group monitoring on sets, in studios and OB truck walls, 19" EIA racks, editing, audio mixing, etc.

TRIMASTER enables accurate colour reproduction, precise rendering and consistent picture quality

TRIMASTER is a design architecture for accurate image reproduction, precise rendering and consistent picture quality.

There are many advantages in panel control and signal processing system such as fast processing, precise linearisation of an input signal with electro-optical transfer function, accurate colour reproduction, etc.

Dynamic Contrast Drive and high/medium/low black detail

Dynamic Contrast Drive is a new backlight drive system that dynamically changes the backlight luminance to suit the scene in a picture. You can easily check the overall balance of highlights and shadows at a glance. This monitor can dynamically achieve a contrast ratio of 1,000,000:1 thanks to this system.

From 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI

The PVM-X1800 can accept 12G-SDI from the latest devices and can receive quad-link 3G-SDI and single HD-SDI for traditional equipment. This versatile input is HDMI and supports PC signals from 640x480/60P to 4096x2160/60P 4:2:2 YCBCR 12-bit.

Various oscilloscopes

The waveform monitor and vectorscope can be displayed simultaneously with scales for HDR or SDR. You can easily check both the input signal level and output luminance thanks to the WFM HDR scales. The waveform offers three different displays: luminance, RGB/YCBCR parade or RGB/YCBCR overlay with gamut error display. The waveform of a specific line can also be displayed.

One to four-screen display with user 3D LUT

The PVM-X1800 offers a four-screen display, with individual settings for EOTF (SDR/HDR), colour space, transfer matrix, colour temperature, contrast, brightness, SDI/HDMI, RGB/YCBCR, as well as user 3D LUTs for each display view.

New user interface and channel selection button

The OSD has been significantly redesigned and using this monitor is faster and more intuitive. The menu design allows you to check settings and change some of them very quickly. The channel selection button protects the operator from inadvertent incorrect settings.

Practical functions for field use

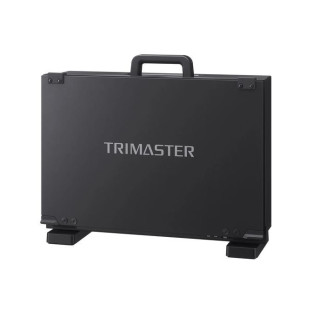

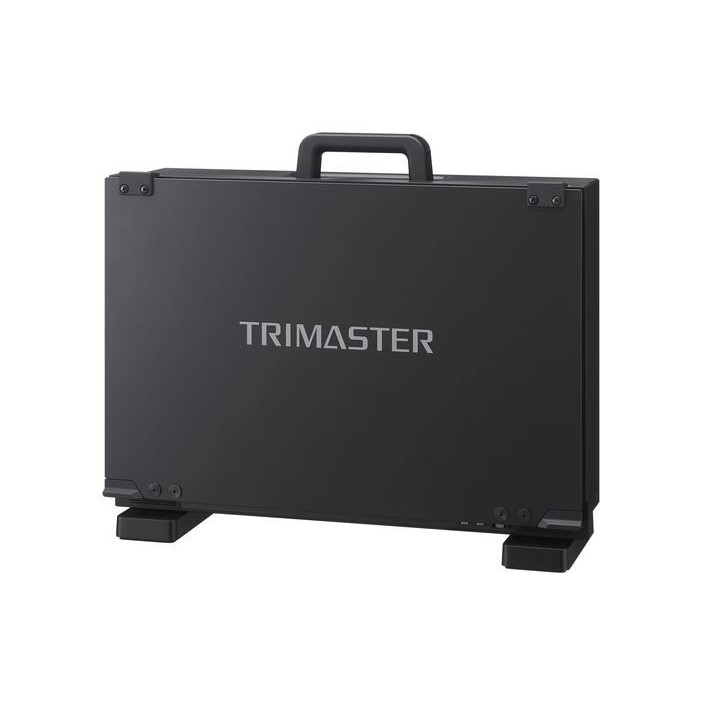

24V DC operation enables field use despite its large 18.4" screen and very high luminance of 1000 cd/m2. The optional protection panel protects the high-end LCD screen against accidental impacts. User 3D LUTs and bracket mounting are also supported. Dynamic Contrast Drive is very useful for night shoots.

Various mounting options

Despite its large 18.4-inch screen size, the PVM-X1800 can be installed in a standard 19-inch EIA rack for use in studios and outside broadcast vehicles. Bracket mounting and VESA mounting are also convenient for installing it on a C-stand for field use and on a desk arm for editing.

Powerful stereo sound with mute function

The PVM-X1800 incorporates stereo speakers (2W+2W) with mute function.

	Specifications
	Picture performance
	Panel	α-Si TFT active matrix LCD
	Picture size (diagonal)	469.2 mm (18.4 inches)
	Effective picture size (H x V)	408.96 x 230.04 mm (16 1/8 x 9 1/8 inches)
	Resolution (H x V)	3840 x 2160 pixels
	Format	16:9
	Displayed colours	Approximately 1.07 billion colours
	Panel frame rate	48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
	Viewing angle (panel specification)	89°/89°/89°/89° (up/down/left/right contrast> 10:1)
	Colour temperature	D60, D65, D93, DCI and User 1-10 (adjustable from 5,000K to 10,000K)
	Luminance (panel specification) (typical)	1000 cd/m2
	Colour space (colour gamut)	ITU-R BT.2020, ITU-R BT.709, DCI-P3, S-GAMUT3, S-GAMUT3.Cine
	Transfer matrix	ITU-R BT.2020 (constant luminance not supported), ITU-R BT.709
	EOTF	2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG)

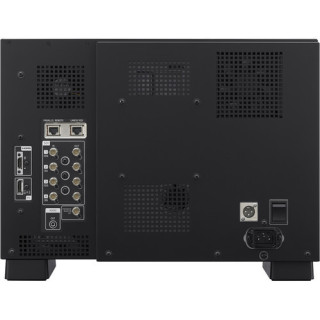

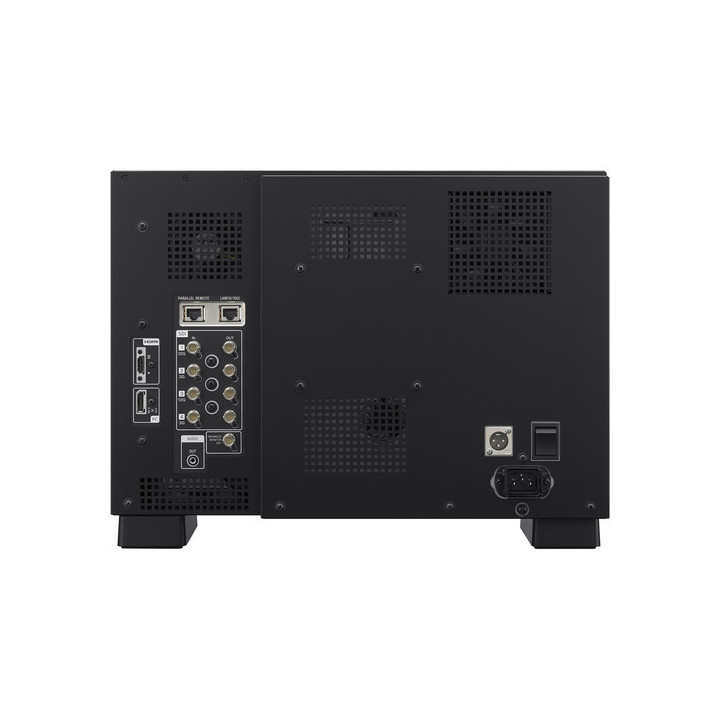

	Input
	SDI	(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), input impedance: 75Ω unbalanced
	HDMI input	HDMI (HDCP2.3/1.4) (x1)
	Parallel remote control	8-pin RJ-45 (x1) (fixed pin assignment)
	Serial remote control (LAN)	Ethernet, 10BASE-T/100BASE-TX RJ-45 (x1)
	DC input	3-pin XLR (male) (x1), DC 22V to 32V (output impedance 0.05Ω or less)
	Output
	SDI output	(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), output impedance: 75Ω unbalanced
	Audio monitoring output	Stereo mini-jack (x1)
	Speaker output (built-in)	2.0 W+2.0 W (stereo)
	Headphone output	Stereo mini-jack (x1)
	General
	Power supply	100V to 240V AC, 50/60 Hz 22V to 32V DC
	Operating temperature	0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)
	Operating humidity	30% to 85% (non-condensing)
	Storage/transport temperature	-20°C to +60°C (-4°F to +140°F)
	Storage/transport humidity	0% to 90%
	Operating/storage/transport pressure	700 hPa to 1060 hPa
	Dimensions (W x H x D)	444 x 310 x 148.5 mm (17 3/8 x 12 1/4 x 5 7/8 inches) (without handle or monitor stand) 444 x 368.7 x 168.5 mm (17 3/8 x 14 5/8 x 6 3/4 inches) (with handle and monitor stand)
	Weight	Approximately 8.2 kg (18 lb 1 oz)
