24-inch 4K HDR TRIMASTER high grade picture monitor
... learn more
Visuals Price
9,870.00 CHF VAT excl.

10,669.47 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

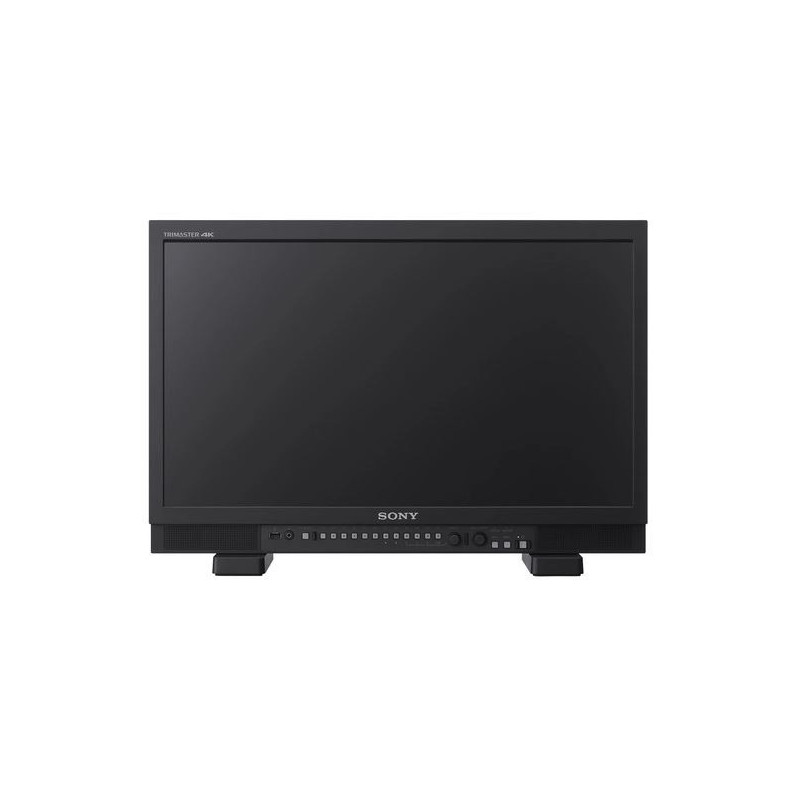

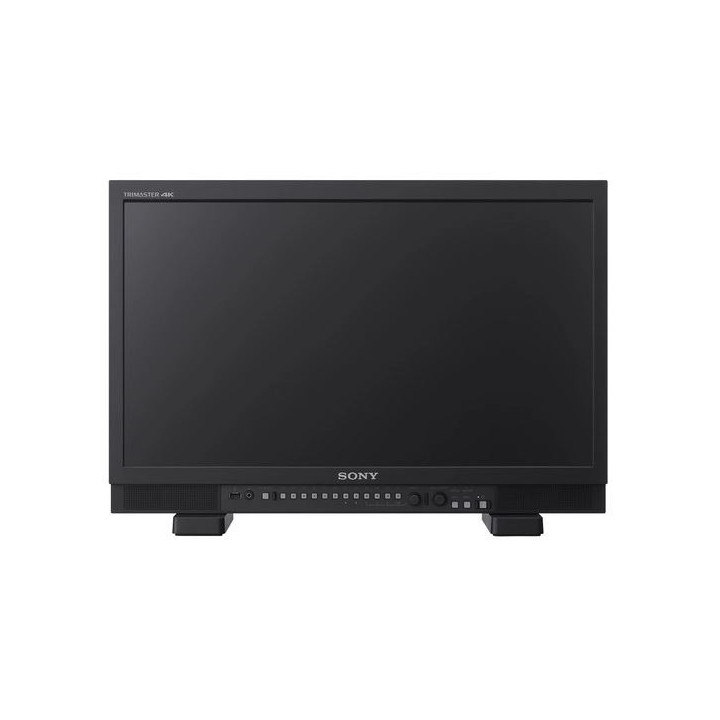

Sony 24-inch professional video monitor
4K HDR picture monitors with colour matching to the BVM-HX310 4K reference monitor, ideal for various 4K productions
The 24-inch high-quality 4K HDR picture monitor PVM-X2400 incorporates Sony's top-of-the-range LCD screen and offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR reference monitor, facilitating group monitoring on set, in studio and in outside broadcast vehicle walls, 19" EIA racks, editing, audio mixing, etc.
TRIMASTER offers faithful colour reproduction, precise imaging and consistent image quality
TRIMASTER is a design architecture for accurate image reproduction, precise imaging and consistent image quality.
The screen control system and signal processing offer many advantages such as fast processing, precise linearisation of an input signal with the electro-optical transfer function, faithful colour reproduction, etc.
Dynamic contrast and black detail High/Medium/Low
Dynamic contrast is a new backlight system that dynamically changes the backlight luminance to suit the scene of an image. You can easily check the overall balance of highlights and shadows at a glance. This monitor can dynamically achieve a contrast ratio of 1,000,000:1 thanks to this system.
From 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
The PVM-X2400 can accept 12G-SDI from the latest equipment and can receive quad-link 3G-SDI and single HD-SDI for traditional equipment. This input supports HDMI from 640x480/60P PC signal up to 4096 x 2160/60P 4:2:2 YCBCR 12bit.
Various scopes
The waveform monitor and vectorscope can be displayed simultaneously with scales for HDR and SDR. You can easily check the input signal level and output luminance using the HDR WFM scales. The waveform offers three different displays: luminance, RGB/YCBCR parade or RGB/YCBCR overlay with gamut error display. The waveform of a specific line can also be displayed.
Unique quad display with user 3D LUT
The PVM-X2400 offers quad display, with individual settings for EOTF (SDR/HDR), colour space, transfer matrix, colour temperature, contrast, brightness, SDI/HDMI, RGB/YCBCR, as well as user 3D LUTs for each view
New user interface and channel selection button
The OSD has been extensively revised and the operation of this monitor is faster and more intuitive. The menu design allows you to check settings and make certain adjustments very quickly. The channel selection button protects the operator from inadvertent setting errors.
Practical features for field use

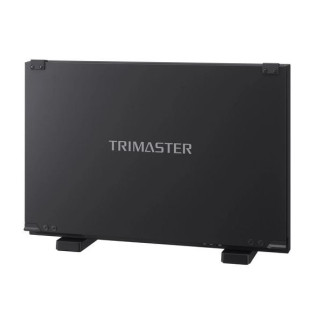

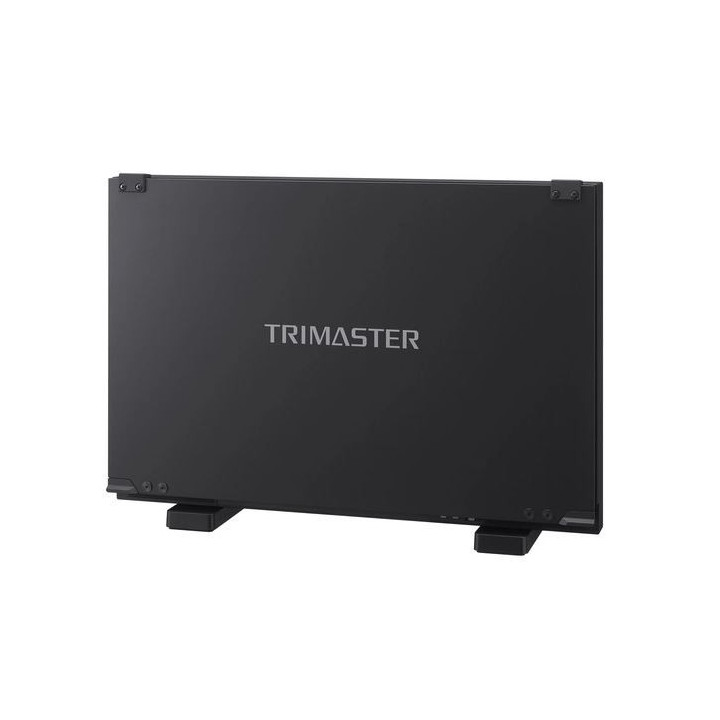

24V DC operation enables field use despite its large 24" screen and very high luminance of 1000 cd/m2. The optional protection panel protects the high-end LCD screen from accidental impacts. User 3D LUTs and yoke mounting are also supported. Dynamic contrast is very useful for night shots.
Various mounting options
Despite its large 24-inch screen size, the PVM-X2400 can be installed in a standard 19-inch EIA rack for use in studios and outside broadcast vehicles. Yoke mounting and VESA mounting are also convenient for installation on a C-stand for field use and on a desktop arm for editing.
Powerful stereo sound with mute
The PVM-X2400 incorporates stereo speakers (2W+2W) with mute.




Specifications



Picture performance



Screen

α-Si TFT active matrix LCD screen

Picture size (diagonal)

609.6mm (24 inches)

Effective picture size (H x V)

531.6 x 299.1mm (21 x 11 7/8 inches)

Resolution (H x V)

3840 x 2160 pixels

Format

16:9

Display colours

Approximately 1.07 billion colours

Screen frame rate

48Hz / 50Hz / 60Hz (48Hz and 60Hz are also compatible with 1/1.001 frame rates)

Viewing angle (screen specifications)

89°/89°/89°/89° (up/down/left/right contrast> 10:1)

Colour temperature

D60, D65, D93, DCI, and user 1-10 (5,000K to 10,000K adjustable)

Luminance (screen specifications) (typical)

1000 cd/m2

Colour space (colour gamut)

ITU-R BT.2020, ITU-R BT.709, DCI-P3, S-GAMUT3, S-GAMUT3.Cine

Transfer matrix

ITU-R BT.2020 (constant luminance supported), ITU-R BT.709

EOTF

2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG)

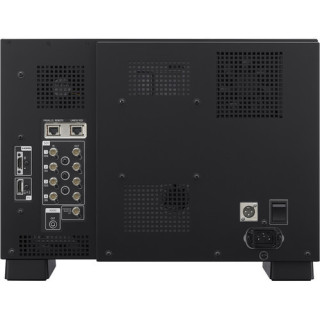

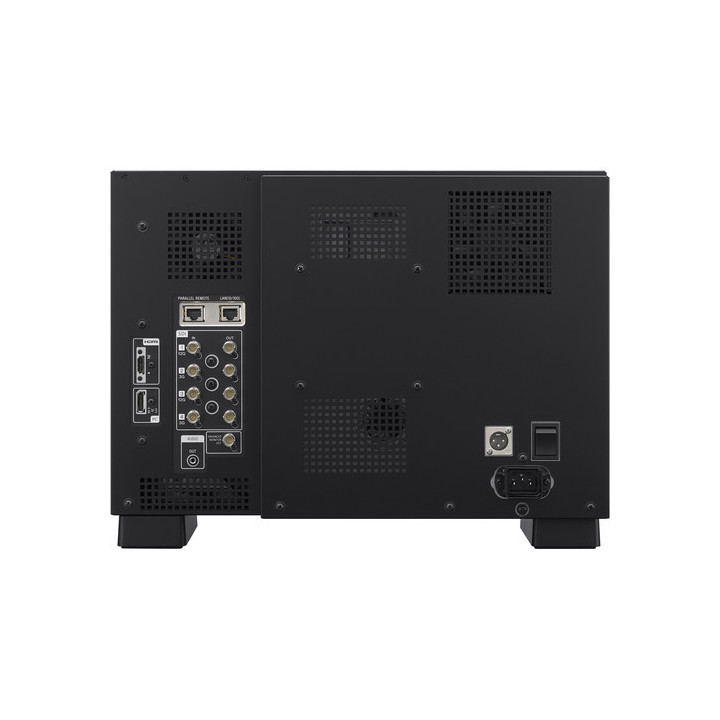

Input



SDI

(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Input impedance: 75 Ω unbalanced

HDMI input

HDMI (HDCP2.3/1.4) (x1)

Parallel remote control

8-pin RJ-45 (x1) (fixed pin assignment)

Serial remote control (LAN)

Ethernet, 10BASE-T/100BASE-TX RJ-45 (x1)

DC input

3-pin XLR (male) (x1), DC 22V to 32V (output impedance 0.05 Ω or less)

Output



SDI output

(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Output impedance: 75 Ω unbalanced

Audio monitoring output

Stereo mini-jack (x1)

Speaker output (built-in)

2.0W+2.0W (stereo)

Headphone output

Stereo mini-jack (x1)

General



Power requirements

AC 100V to 240V, 50/60Hz DC 22V to 32V

Operating temperature

0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)

Operating humidity

30% to 85% (non-condensing)

Storage/transport temperature

-20°C to +60°C (-4°F to +140°F)

Storage/transport humidity

0% to 90%

Operating/storage/transport pressure

700 hPa to 1060 hPa

Dimensions (W x H x D)

568 x 382 x 158.5mm (22 3/8 x 15 1/8 x 6 1/4 inches) (without stand) 568 x 403.5 x 178.5mm (22 3/8 x 16 x 7 1/8 inches) (with stand)

Weight

Approximately 10.5kg (23 lb 2 oz)
