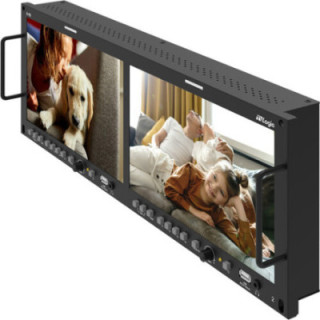

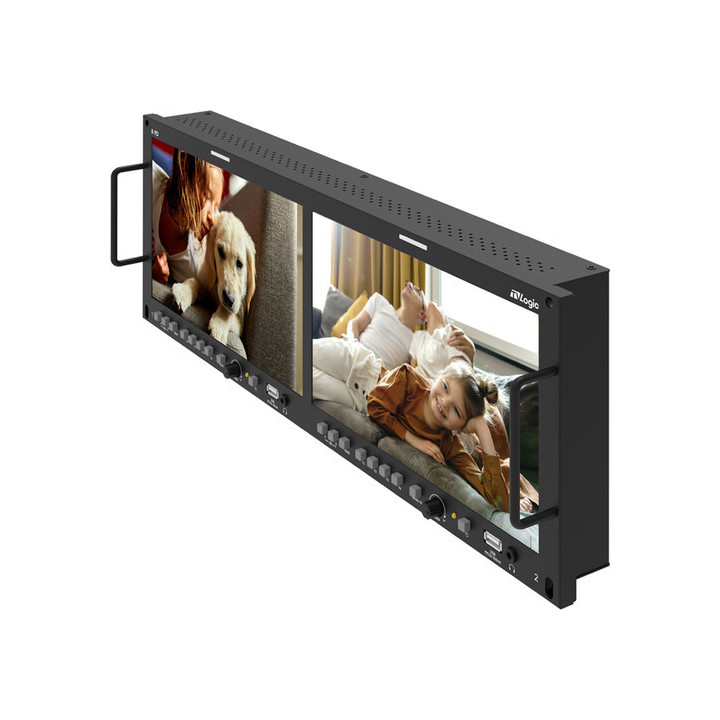

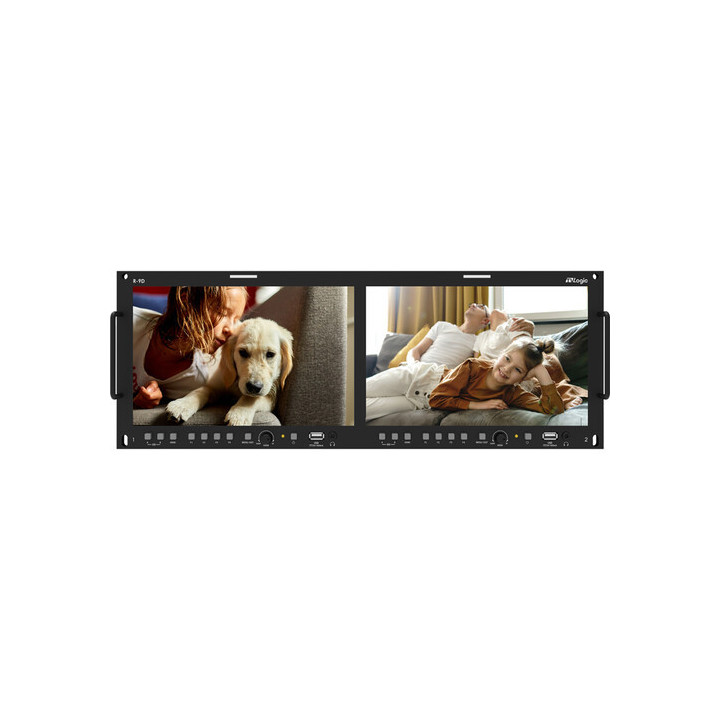

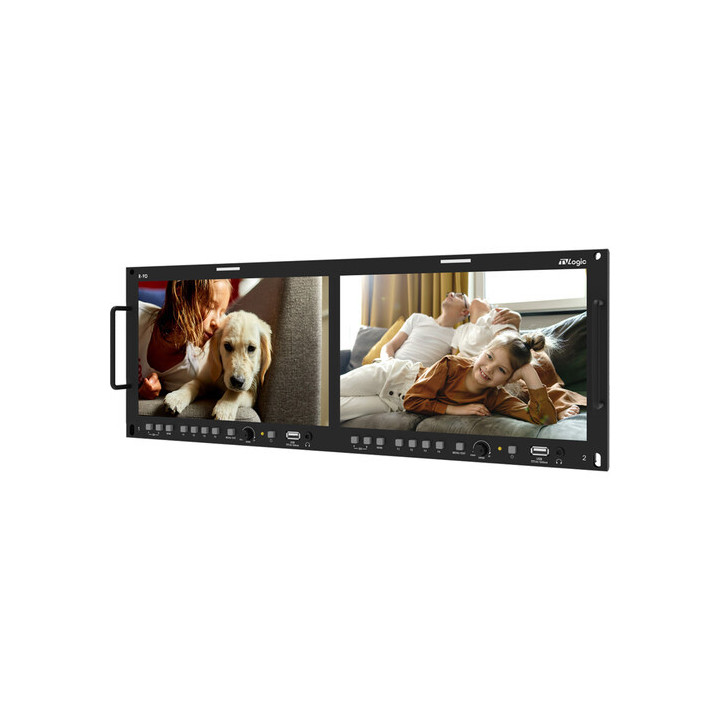

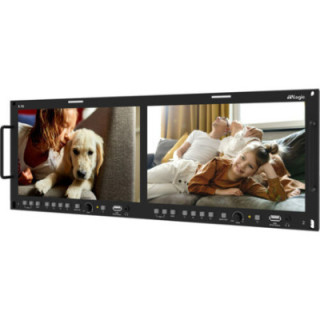

TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor

1087215
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
TVLogic TVL-R-9D - Dual 10.1" 12G-SDI Rackmount Monitor
Featuring two 10.1" displays in a 4 RU design, the Dual 10.1" 12G-SDI Rackmount Monitor from TVLogic is designed to provide efficient broadcast monitoring of up to two UHD 4K60 signals.
... learn more
Visuals Price
3,774.34 CHF VAT excl.

4,080.06 CHF Inc. VAT

Manufacturer price 4 289,03 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

TVLogic TVL-R-9D Specs

Display Size 10.1" / 25.7 cm
Native Resolution 1920 x 1200
Touchscreen No
HDR Support Yes

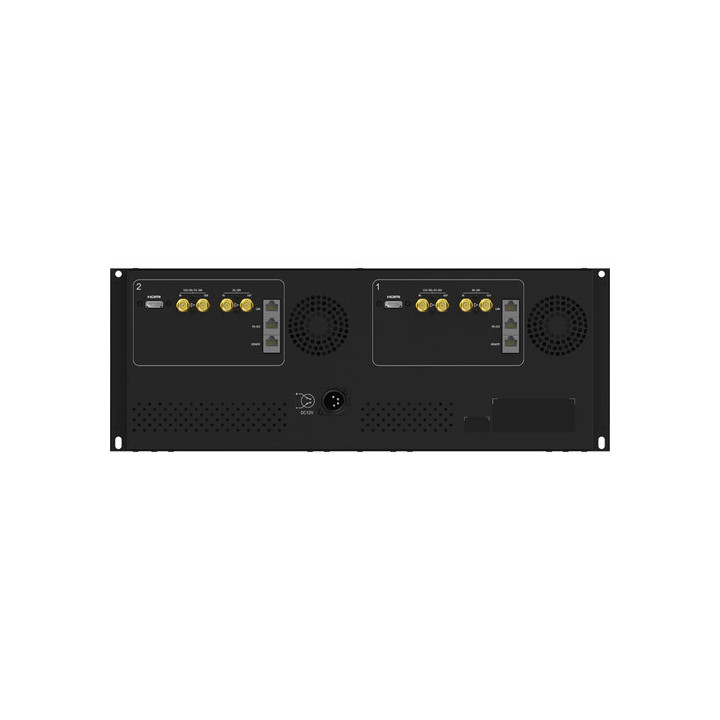

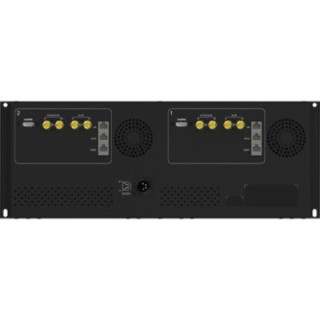

Video I/O 1x BNC (12G-SDI) Input
1x BNC (3G-SDI) Input
1x HDMI Input
1x BNC (12G-SDI) Loop Output
1x BNC (3G-SDI) Loop Output
Media/Memory Card Slot No
Video Format SDI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94

HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
576p: 50
480i: 59.94
480p: 59.94
Battery No
Power Consumption 38 W
Featuring two 10.1" displays in a 4 RU design, the Dual 10.1" 12G-SDI Rackmount Monitor from TVLogic is designed to provide efficient broadcast monitoring of up to two UHD 4K60 signals.
