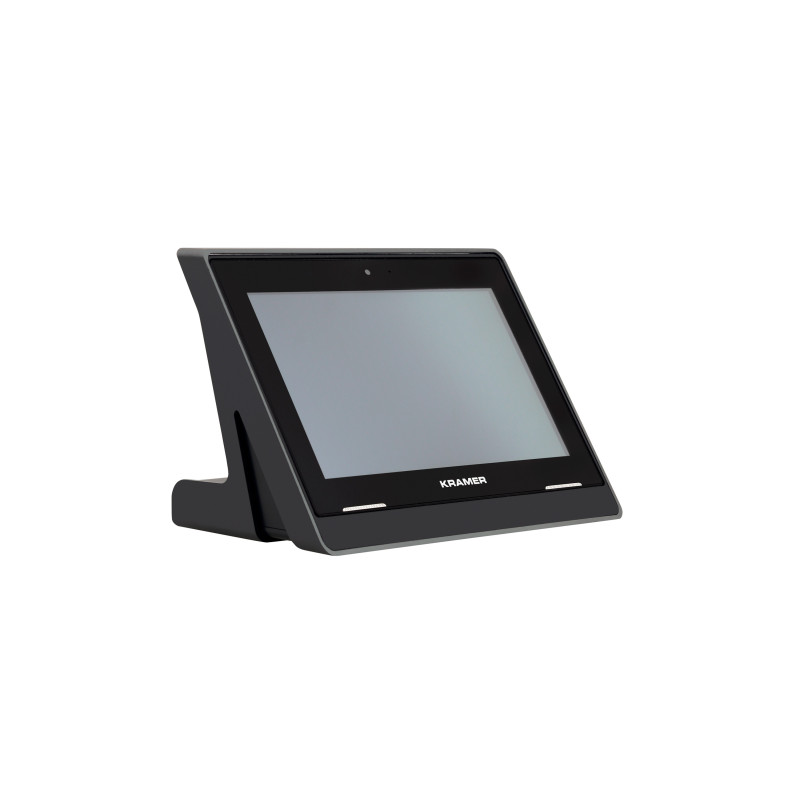

Kramer KT-107RB - 7-Inch Wall & Table Mount PoE Touch Panel - Bandwidth to 5.35GHz
189239
KT-107 is a 7-inch IPS multi-touch, powerful touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either tabletop or on-wall, mounted inside standard in-wall junction boxes. KT-107 supports wired Power over Ethernet (PoE) and advanced Wi-Fi connectivity options
Visuals Price
1,796.05 CHF
VAT excl.
1,941.53 CHF Inc. VAT
Manufacturer price 2 113,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer 7-inch touch panel for wall and table mounting with PoE - Bandwidth up to 5.35GHz
The KT-107 is a powerful 7-inch multi-touch IPS touch panel with a resolution of 1280x800. Elegantly designed for decorative room integration, this portable touch panel can be deployed on tables or walls, mounted in standard wall junction boxes. The KT-107 supports wired Power over Ethernet (PoE) and advanced Wi-Fi connectivity options. The touch panel is supplied with table and wall supports, USB cable and power supply for easy installation, with elegant cabling and secure mounting, reliable operation and flexible deployment. The KT-107 is an Android-based touch panel, ideal for any commercial AV or 24/7 control application supported by Kramer and features a fully customisable graphical user interface configured by Kramer software. The KT-107RB's 5GHz Wi-Fi frequency band is limited up to 5.35GHz.
- Elegant design - Harmonious integration with room furniture design, on table or wall, with flexible cabling and panel locking options.
- Superior user experience - High-resolution 1280x800 IPS display with wide viewing angles of ±80° horizontally and vertically, integrated brightness sensor for auto-adaptive brightness, with advanced 10-point multi-touch and 2-finger gesture capabilities.
- Powerful processing - Processing performance with quad-core CPU, GPU, 2GB RAM, 16GB ROM, smooth operation of complex graphics-rich multimedia applications, such as H.265 video and audio stream encoding and decoding, and seamless 2Mp high-resolution HD front camera operations.
- Flexible services - Advanced Android 6.0 operating system with numerous Kramer and market-available applications from the cloud/store, such as K-Touch Control and EventBoard Scheduling applications.
- Easy installation - Power and connectivity via a single Ethernet cable.
- Flexible mounting - Includes table and wall supports compatible with standard market-available 2-module junction boxes.
- Optional connectivity - Simple BTLE 4.0 wireless Bluetooth as well as connection to USB peripherals for table-top or wall installations, using the included USB cable.
- Reliable network - Seamless failover between wired and 802.11ac wireless connectivity.
- Versatile power options - PoE, power supply unit and battery.
- Automatic detection - Optimised performance and operation according to automatically detected LAN speed.
- Firmware update - Via USB port.
- Secure deployment - Flexible locking options to prevent unauthorised removal from the panel support, elegantly designed to remain discreet.
- Secure operation - Highly secure application operation such as password-protected exit, hidden control buttons, etc. Red LED alert when camera is active.
Applications

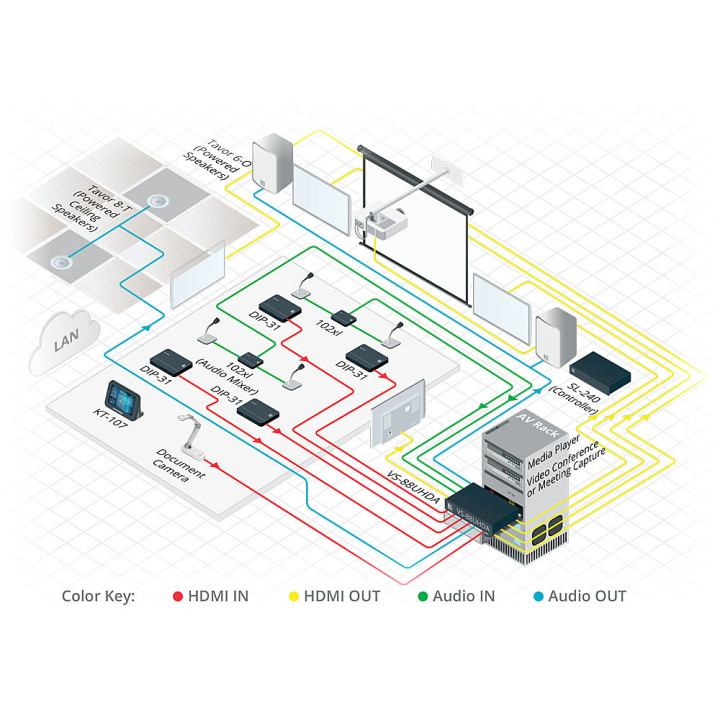

- Control interface in meeting and conference rooms, boardrooms and auditoriums
- Room scheduling display
|
|
Specifications |
|
|
TABLE MOUNTING PORTS |
1 Ethernet port 1000/100/10BaseT on RJ-45 connector, 1 micro USB 2.0, 2-pin terminal block for DC power |
|
|
WALL MOUNTING PORTS |
1 Ethernet port 1000/100/10BaseT on RJ-45 connector, 2-pin terminal block for DC power |
|
|
SPEAKERS |
2x1W, 8Ω |
|
|
MICROPHONE |
-42dB ±3dB @1kHz sensitivity |
|
|
CPU PERFORMANCE |
Quad Core 1.6 GHz, GPU, 2GB RAM, 16GB flash |
|
|
OPERATING SYSTEM |
Android 6.0.1 |
|
|
MULTI-TOUCH |
10 points, 2-finger gestures |
|
|
DISPLAY |
7" IPS, 1280x800 RGB pixels, 16:10 format, horizontal/vertical viewing angles ±85°, brightness 400cd/m2, contrast ratio 800:1 |
|
|
VIDEO DECODING FORMAT |
HEVC/H.265, H.264, H.263, MPEG-1/2/4, VC-1, VP6/8, RV8/9/10, AVS, MVC, Sorenson Spark, M-JPEG |
|
|
VIDEO ENCODING FORMAT |
H.264, MVC, VP8, M-JPEG |
|
|
ETHERNET PORT |
10/100/1000Mbps PoE LAN |
|
|
WIRELESS COMMUNICATION |
Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.0 KT-107RB — The 5GHz frequency band is limited up to 5.35GHz |
|
|
CAMERA |
Front, 2M pixels, HD 720p |
|
|
BATTERY |
Rechargeable, supports up to 3 hours of Wi-Fi operation |
|
|
CONTROLS |
Hidden Reset button, power button (ON/OFF), volume up button Touch panel status LED: flashes green during charging, solid green when fully charged, red when camera is active |
|
|
POWER INPUTS |
Power over Ethernet (compliant with PoE IEEE802.3af and IEEE802.3at standards), power supply unit |
|
|
POWER CONSUMPTION |
5V DC, 3A |
|
|
OPERATING TEMPERATURE |
0° to +40°C (32° to 104°F) |
|
|
STORAGE TEMPERATURE |
-10° to +55°C (14° to 131°F) |
|
|
HUMIDITY |
10% to 90%, RH non-condensing |
|
|
HOUSING DESIGN |
Black body and cover |
|
|
CERTIFICATIONS |
CE/CB, FCC, ROHS, REACH |
|
|
MOUNTING OPTIONS |
Desktop (with docking station), wall-mounted (with mounting unit and mounting plate) |
|
|
INCLUDED ACCESSORIES |
Mains adapter (5V, 4.0A AC/DC), table support, wall mounting unit, mounting plate, angled USB OTG cable, installation screws |
|
|
OPTIONS |
Wall security lock (KT-107-OWLK) |
|
|
PRODUCT DIMENSIONS |
17.80cm x 13.00cm x 1.30cm (7.01" x 5.12" x 0.51") W, D, H |
|
|
PRODUCT WEIGHT |
0.4kg (0.8lbs) approx. |
