Epiphan - BUNDLE Pearl Mini + EC20 PTZ Camera
Epiphan ES1906 - BUNDLE Pearl Mini + EC20 PTZ Camera
1088946

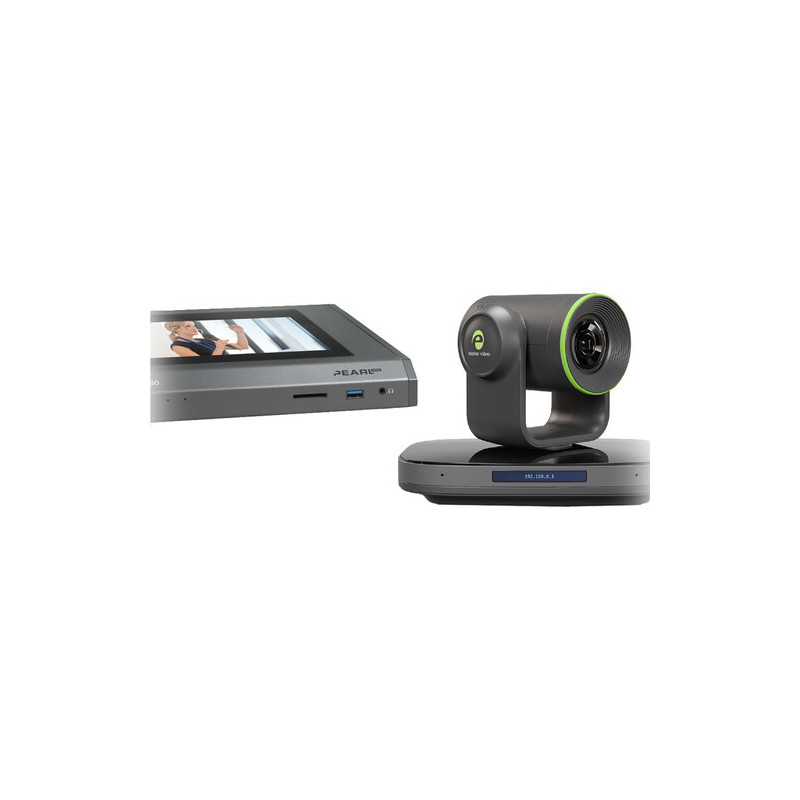

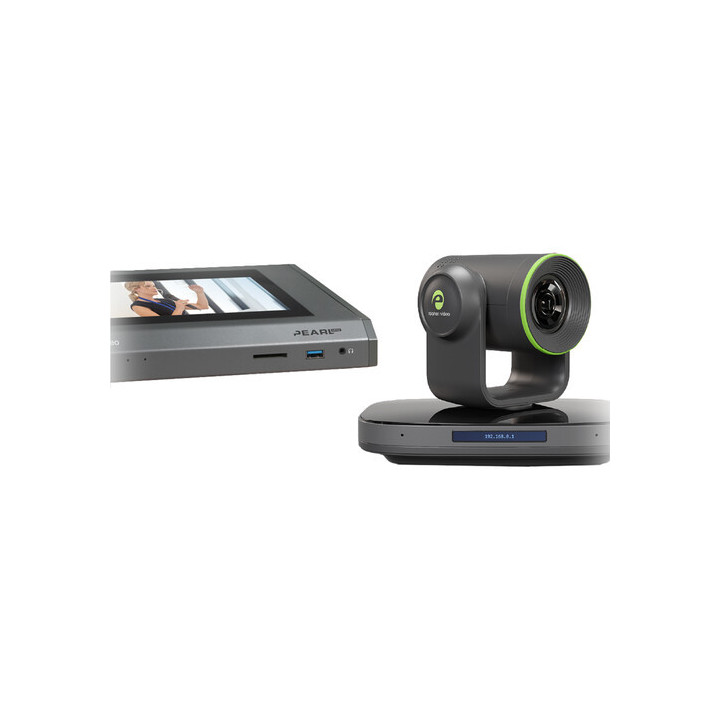

The compact Studio Essential Mini Bundle with EC20 PTZ Camera from Epiphan comprises the Pearl Mini streamer/recorder and the EC20 PTZ Camera with wall and ceiling mounts. This simple, self-serve setup is ideal for quick recording and live events, letting any user enter your studio space and hit record to capture professional-looking content.
Visuals Price
5,320.00 CHF
VAT excl.
5,750.92 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Epiphan ES1906 Specs
| Processing Resolution | 1080p |
| Color Processing | 8-Bit 4:2:0 |
| Video Inputs | 1x BNC (3G-SDI) Female 2x HDMI (1.4a) Female 2x USB-A (3.0) |
| Input Video Format | HDMI (4:4:4 RGB) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps 720p up to 60 fps 576p up to 60 fps 480p up to 60 fps HDMI (4:4:4/4:2:2 YCC) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps 720p up to 60 fps 576p up to 60 fps 480p up to 60 fps SDI (4:4:4 RGB) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps 720p up to 60 fps 576p up to 60 fps 480p up to 60 fps SDI (4:2:2 YCC) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps 720p up to 60 fps 576p up to 60 fps 480p up to 60 fps |
| Audio Inputs | 2x XLR 3-Pin Mic/Line Female 1x 2RCA Stereo Analog Female 1x 1/8" / 3.5 mm TRS Mic |
| Input Audio Format | AES/EBU |
| Embedded Audio Input | HDMI SDI USB-A RJ45 |
| Video Outputs | 1x HDMI (1.4a) 1x RJ45 |
| Output Video Format | HDMI: 1080p 30 fps RJ45: 1080p up to 30 fps |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS |
| Output Audio Format | AES/EBU |
| Embedded Audio Output | HDMI RJ45 |
| Other I/O | 1x USB-A Control |
| HDCP Support | Yes |
| IP Video | H.264: 640 x 480 to 1920 x 1200 Encoding |
| Transport Protocols | HLS, HTTP, NDI/HX, RTMP, RTMPS, RTSP, SAP, SRT, TCP, TS-MPEG, UDP |
| Simultaneous Streams | 2 Streams |
| Compatible Services | Facebook Live, YouTube Live |
| Recording Media | 1x SD (Unspecified Type), Sata M.2 SSD |
| Display Size | 7" |
| Wireless | No |
| Power I/O | 1x Barrel (12 VDC up to 7 A) Input |
| Power Consumption | Power Supply: 100 to 240 VAC at 1.5 A (60 W) Power Supply: 100 to 240 VAC at 1.3 A (84 W) |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Certifications | FCC Part 15, RoHS |
| Dimensions | 14.2 x 6.8 x 2.4" / 361 x 172 x 60 mm |
| Weight | 3.7 lb / 1.7 kg |
| Package Weight | 9.445 lb |
| Box Dimensions (LxWxH) | 18.3 x 15.7 x 9.6" |
The compact Studio Essential Mini Bundle with EC20 PTZ Camera from Epiphan comprises the Pearl Mini streamer/recorder and the EC20 PTZ Camera with wall and ceiling mounts. This simple, self-serve setup is ideal for quick recording and live events, letting any user enter your studio space and hit record to capture professional-looking content.
