AJA - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply

AJA KUMO-1616-12G - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply

1006931
0812321031430
AJA KUMO-1616-12G - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply
AJA KUMO-1616-12G - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply
AJA KUMO-1616-12G - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply
AJA KUMO-1616-12G - KUMO 16x16 Compact 12G-SDI Router, with 1 power supply
KUMO 16x16 Compact 12G-SDI Router, with 1 power supply
... learn more
Visuals Price
2,991.79 CHF VAT excl.

3,234.12 CHF Inc. VAT

Manufacturer price 3 149,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

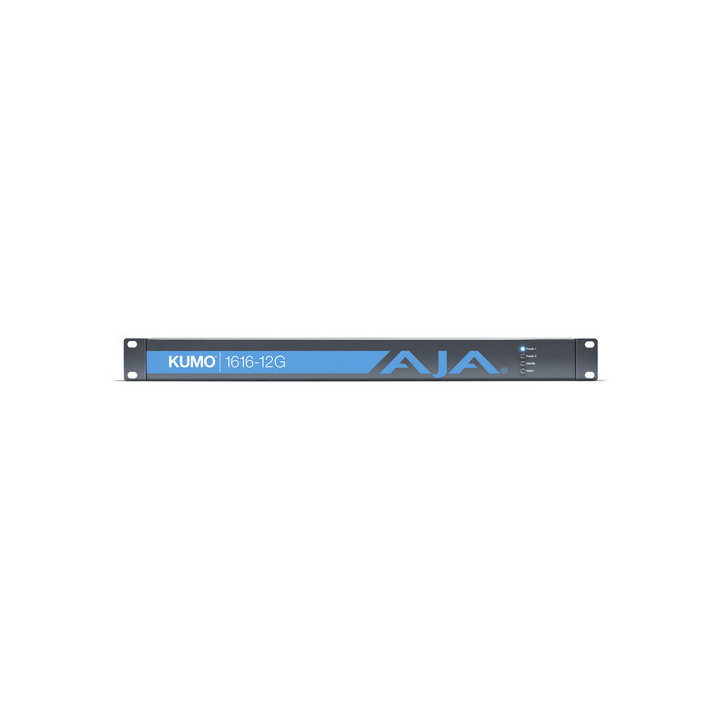

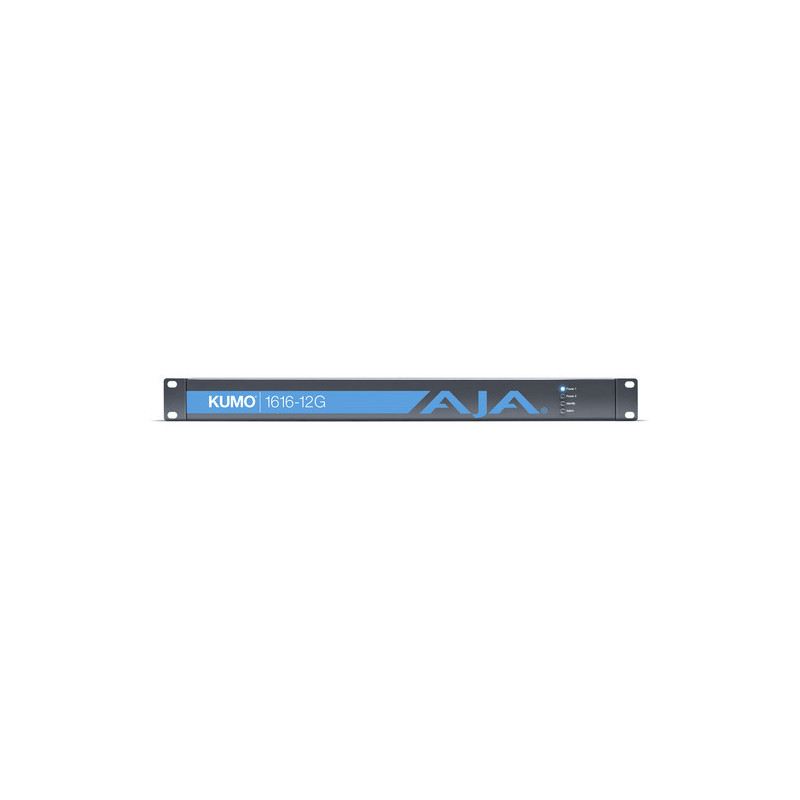

AJA KUMO 1616 12G-SDI compact router (1 RU)
The AJA KUMO 1616 12G-SDI 1 RU compact router is a 16 x 16 video matrix. It is a small and economical solution for a range of broadcast, production and post-production applications. This router features 16 SDI inputs and 16 SDI outputs. The KUMO 1616 12G features an embedded Linux operating system and internal web server, which provide control via web browser through 10/100/1000 Ethernet without requiring additional software.
The mini-USB port facilitates router IP address configuration and simplifies network setups. Its compact 1 RU size makes it suitable for edit suites, mobile production trucks, corporate video installations and live theatrical AV installations, whilst its HTTP support provides you with a wide range of powerful control options. This router can be integrated into existing infrastructure using the industry-standard Grass Valley native protocol via RS-422 or Ethernet.
Features
- Automatic equalisation and re-clocking
- Supports all ancillary data, including embedded audio
- Up to eight Salvos can be configured and saved in each KUMO router
- Reference via BNC, looping, black burst or tri-level sync
- 10/100/1000 LAN Ethernet
- Embedded Linux operating system with internal web server for web browser control
- HTTP control and monitoring via web browser
- Industry-standard Grass Valley native protocol via RS-422 or Ethernet
- 1 RU format
- Redundant power supply, isolated power inputs




Specifications



Compatible control panels

AJA KUMO CP - 1 RU Ethernet X-Y control panel
AJA KUMO CP2 - 2 RU Ethernet X-Y control panel

Video format

270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s SDI
270 Mb/s DVB-ASI
Format agnostic, 125 Mb/s to 12 Gb/s

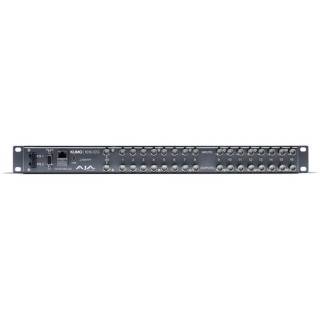

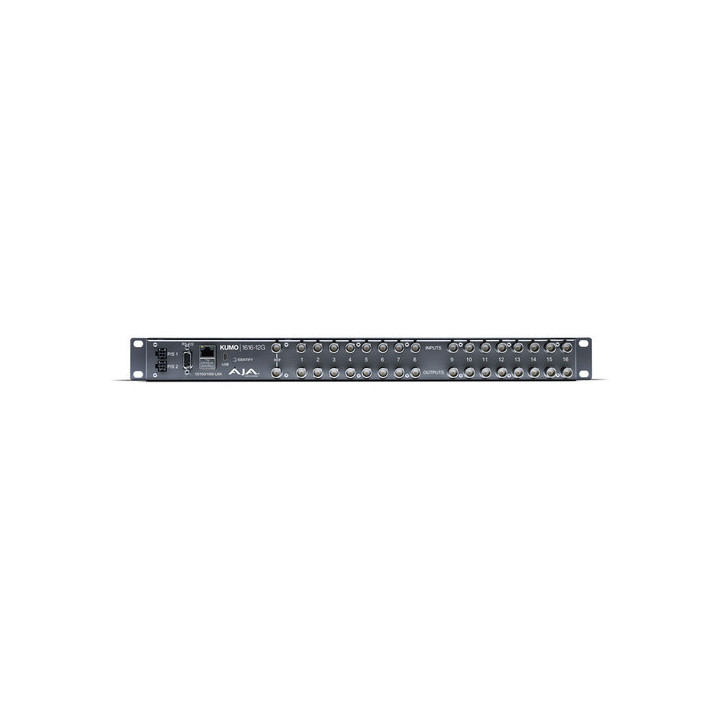

Digital video input

16 x 12G-SDI BNC ports

Digital video output

16 x 12G-SDI BNC ports, non-inverting

Cable equalisation

Belden 1694A:
12 Gb/s, up to 196.9' / 60 m
6 Gb/s, up to 393.7' / 120 m
3 Gb/s, up to 623.4' / 190 m
1.5 Gb/s, up to 639.8' / 195 m
270 Mb/s, up to 1329' / 405 m
Automatic operation

Video bandwidth

SMPTE 259, 292, 424, 2081 and 2082

Re-clocking

270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s, 2.970 Gb/s, 5.934 Gb/s, 5.940 Gb/s, 11.868 Gb/s, 11.880 Gb/s - auto-selection

Reference input

2 x BNC ports, external

Network interface

1 x RJ45, 10/100/1000 Ethernet

USB interface

1 x Mini-USB for IP configuration

Serial interface

1 x 9-pin female Sub-D, RS-422 port

Power consumption

13 W typical

Power supply

10-14 VDC regulated

Power supply

100-240 VAC, 50/60 Hz, universal input

Dimensions

17.4 x 1.54 x 1.75" / 441.96 x 39.12 x 44.45 mm

Rack mounting

1 RU

Weight

1.4 lb. / 0.7 kg
