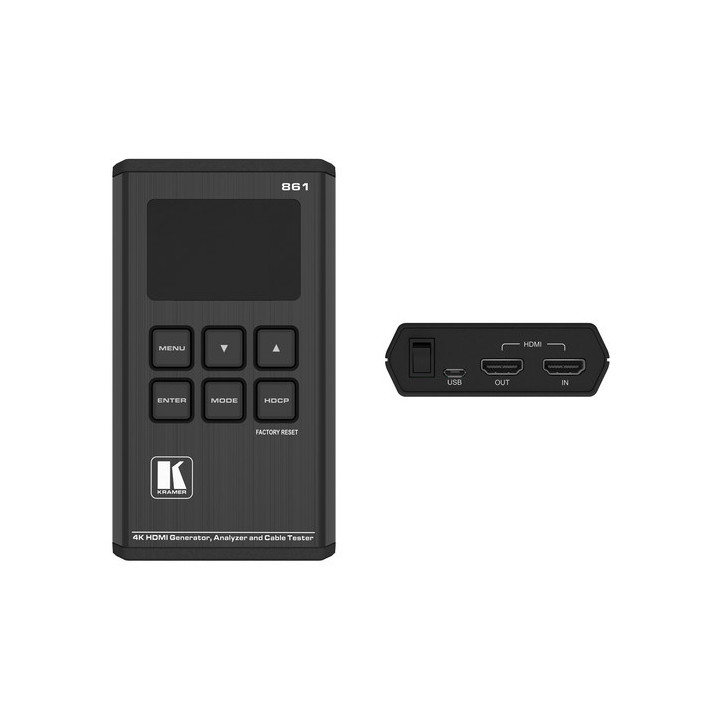

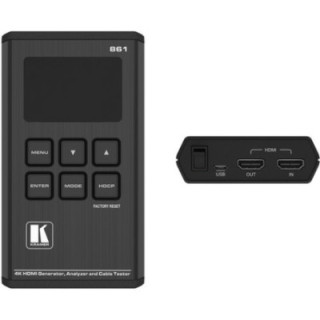

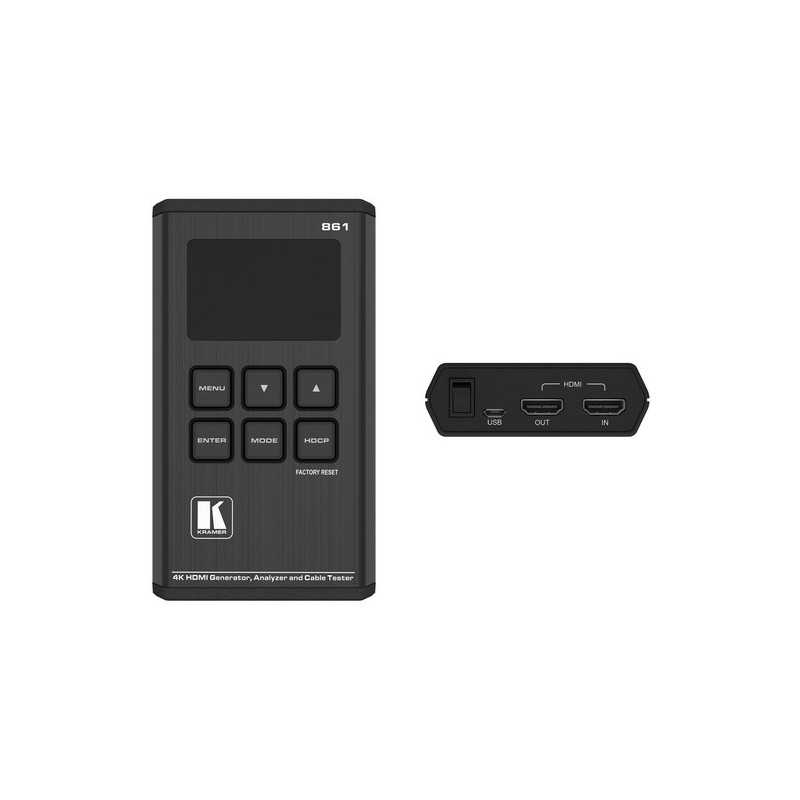

Kramer 18G 4K HDR Pocket-Size Signal Generator, Analyser and Cable Tester

Kramer's 18G 4K HDR Pocket-Size Signal Generator, Analyser and Cable Tester is a convenient and advanced tool for generating, testing and verifying the signal path in your HDMI 2.0/HDCP 2.2 4K60 (4:4:4) ecosystem. With 23 built-in resolutions, 11 test patterns and over a dozen types of AV analysis functions, this device offers a wide range of testing options. Analysis of HDMI data packets, EDID and HDCP is supported as well as EDID download and emulation. In addition, the Status and Control Data Channel (SCDC) can be monitored, allowing detection and analysis of the 18G HDMI signal. Up to eight channels of LPCM audio test tones can be generated with a wide range of audio frequencies and levels. This device is portable and durable and includes a high-quality belt pouch. It operates on a li-ion battery that lasts over five hours before needing to be recharged.

- Data path analysis; source and receiver up to 18G for HDMI signals

- HDMI data packet analysis

- HDCP v1.4 and v2.2 analysis and control

- EDID data analysis and emulation

- HDR bypass and analysis support

- HDMI sync generation

- LPCM audio sine wave generation, up to eight channels

- OLED display with fast status information updates

- Detailed OSD for settings and information display

- Firmware update via USB

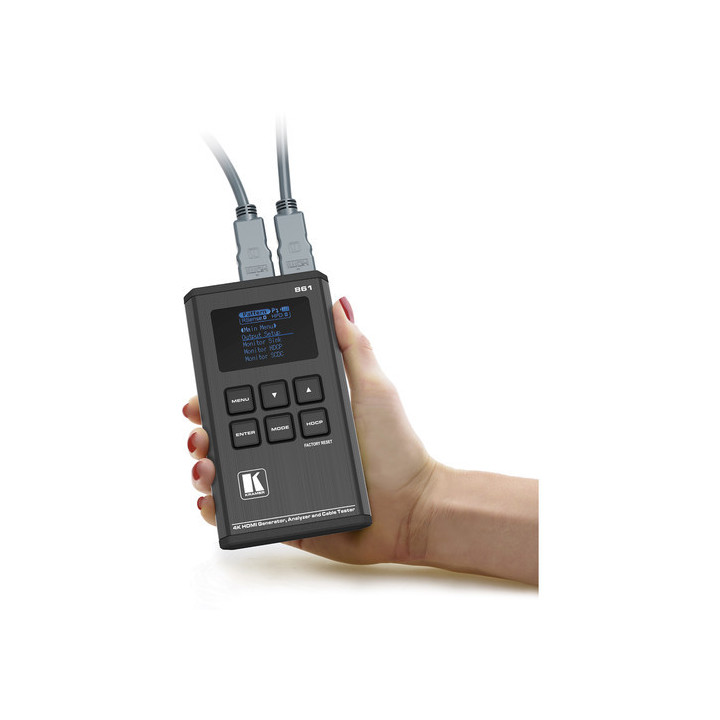

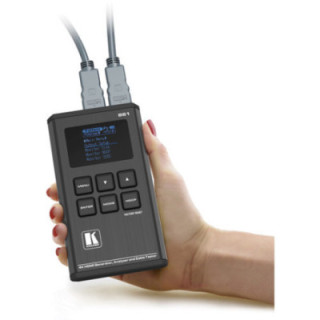

- Portable and durable

- Power saving functions

	Specification

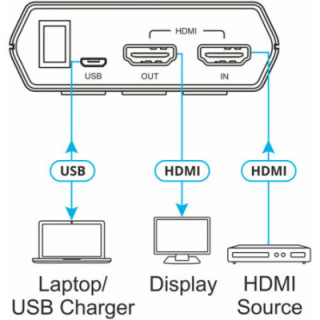

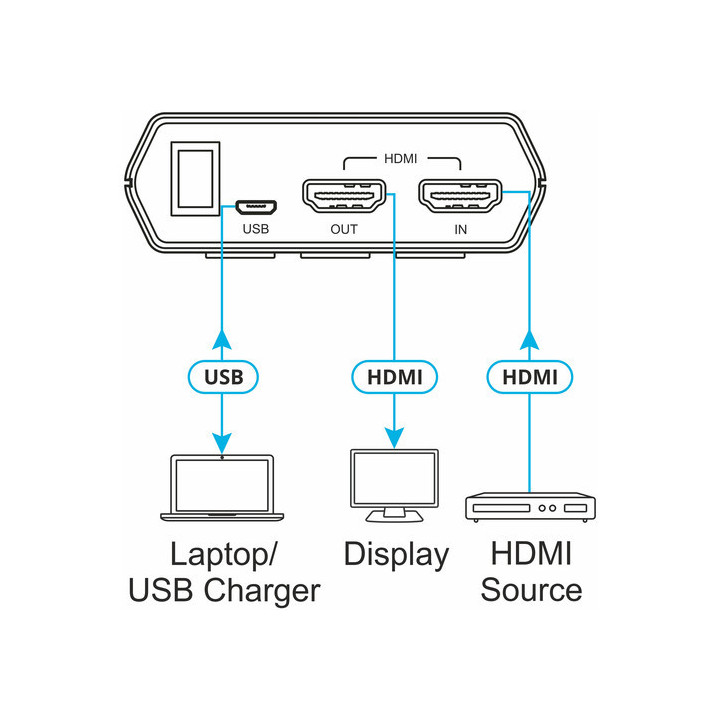

	Connectors	1 x HDMI Female, Input 1 x HDMI Female, Output 1 x USB Micro-B Female, Computer/Power Port
	Maximum Data Rate	18 Gbit/s (6 Gbit/s per graphics channel)
	Resolution	UHD 4K @ 60 Hz (4:4:4, 8-Bit)
	Supported Resolution	4K (4096 × 2160p): 24/25/30/50/60 4K (3840 × 2160p): 24/25/30/50/60 1080p: 24/25/30/50/60 1080i: 50/60 720p: 25/30/50/60 576p: 50 480p: 59
	Compliance	HDMI 2.0 and HDCP 1.4, 2.2
	Audio Support	LPCM 2.0, 5.1 and 7.1
	Power Supply	USB Power Supply 5 V, 2.1 A
	Power Consumption	4.7 W
	Operating Temperature	32 to 104°F / 0 to 40°C
	Storage Temperature	-40 to 158°F / -20 to 50°C
	Approvals	Safety: CE, FCC Environmental: RoHS, WEEE ESD Protection: Human Body Model: ±12 kV (air discharge), ±8 kV (contact discharge)
	Enclosure	Metal Cooling: Convection ventilation
	Dimensions	3.15 x 5.51 x 1.06" / 8.0 x 14.0 x 2.7 cm
	Weight	0.6 lb / 0.3 kg
