Kramer HSL DH 8-port secure DVI video KVM switch with fUSB, PP 3.0

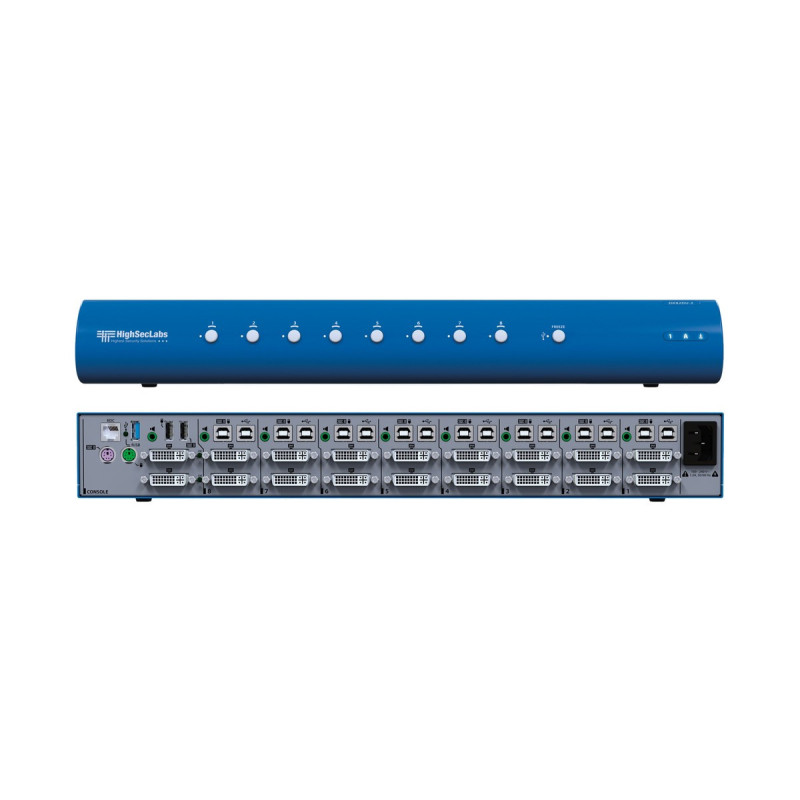

The DK82DU-3 is an 8-port secure dual-head 4K30 UHD DVI-I KVM switch. It allows users to share peripherals - keyboard, video, mouse, audio and USB - between eight networks/computers of different security levels whilst isolating all hosts and protecting against data leaks and malicious attacks via shared peripherals. It also allows a USB port to be assigned to a specific computer whilst switching other peripherals, for example when a USB smart card reader must remain associated with a certain computer. The DK82DU-3 offers the highest possible level of isolation between connected computers and is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified.
Features
- Maximum security by design - NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for Peripheral Sharing Switch (PSS) devices.
- 4K30 UHD resolution - Supports resolutions up to 3840×2160 @30Hz.
- Work freely without compromising security - Display and control classified and unclassified computers without compromising security.
- Information leak prevention - Blocks peripheral exploits, information leaks, eavesdropping, signal transmission, malware, hardware and software tampering.
- USB peripheral filtering - Authorise or block specific USB peripherals based on VID/PID characteristics.
- Dual display - Offers flexible presentation options with duplicated or extended display modes.
- Smooth switching between computers (Virtual Display Technology) - Automatically switch control of all peripherals from one computer to another by dragging the cursor between the display borders of each computer.
- Biometric/smart card reader support - Connect a smart card/biometric reader to the secure port to support user authentication on multiple isolated computers.
- Keyboard lock indication - Caps Lock, Num Lock and Scroll Lock indicators on the front panel.- Versatile and flexible - Configurable as a KVM switch (default) to share a screen, keyboard and mouse between connected computers, or as a KM switch to share keyboard and mouse and work simultaneously on multiple computers connected to separate screens.



Specifications



CONSOLE PORTS

2 x DVI-I connectors (single link/dual link), 2 x USB-A connectors for keyboard and mouse, 1 x USB-A connector for USB peripherals, 2 x DIN-5 connectors for PS/2 keyboard and mouse, 1 x 3.5mm mini-jack for unbalanced stereo audio, 1 x RJ45 connector for control (RDC)

COMPUTER PORTS

16 x DVI-I connectors (single link/dual link), 8 x USB-B connectors for keyboard and mouse, 8 x USB-B connectors for USB peripherals, 8 x 3.5mm mini-jacks for unbalanced stereo audio

MAXIMUM RESOLUTION

4K30 UHD: 3840X2160 @30Hz via DVI to HDMI cable; DVI dual link: 2560X1600 @60Hz via DVI cable

POWER REQUIREMENTS

35W max

AC INPUT

100 to 240V AC

POWER SUPPLY TYPE

Internal

OPERATING TEMPERATURE

0° to 40°C (32° to 104°F)

STORAGE TEMPERATURE

−20° to 60°C (−4° to 140°F)

HUMIDITY

0-80% RH, non-condensing

SUPPORTED OPERATING SYSTEMS

Windows, Linux, Mac

SECURITY CERTIFICATION

NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices

PRODUCT CERTIFICATION

CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

PRODUCT DIMENSIONS

44.00cm x 20.20cm x 6.20cm (17.32" x 7.95" x 2.44") W, D, H

PRODUCT WEIGHT

Approx. 2.9kg (6.4lbs)
