Kramer DK82PU-N(CPN12605) - Dual-Head KVM Switch 8-port DP w/fUSB

1010968
Kramer DK82PU-N(CPN12605) - Dual-Head KVM Switch 8-port DP w/fUSB
Kramer DK82PU-N(CPN12605) - Dual-Head KVM Switch 8-port DP w/fUSB
Dual-Head KVM Switch 8-port DP w/fUSB
... learn more
Visuals Price
1,917.60 CHF VAT excl.

2,072.93 CHF Inc. VAT

Manufacturer price 2 256,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

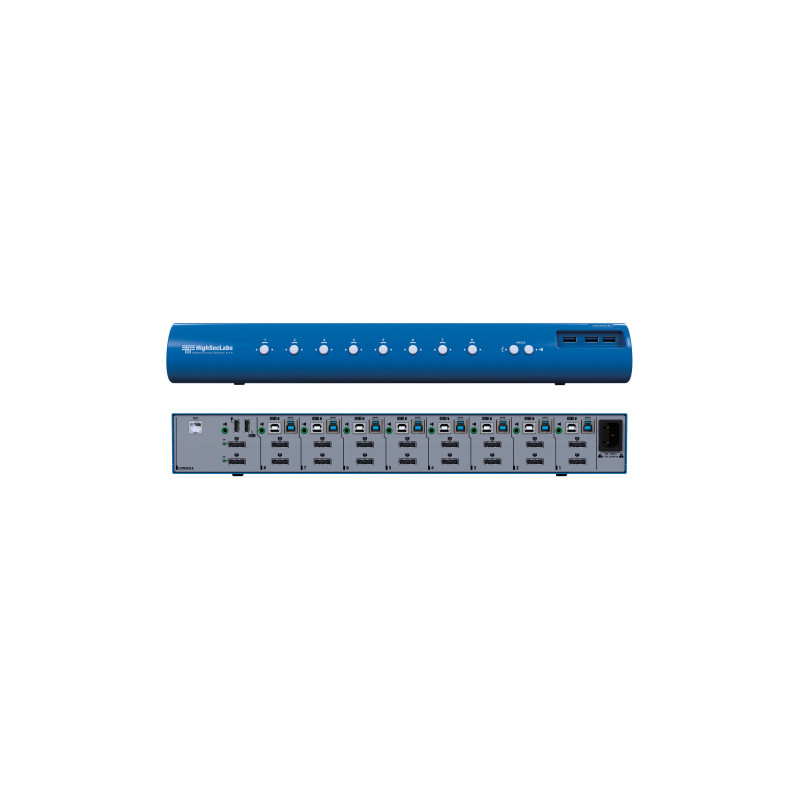

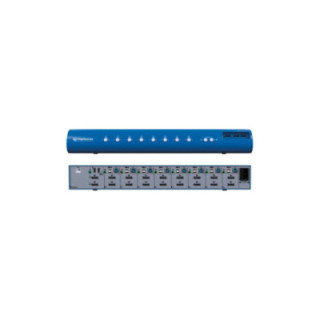

Kramer 8-port dual-head DP KVM switch with fUSB
The DK82PU–N is an 8-port dual-head DisplayPort UHD 4K30 KVM switch. It enables users to share devices - keyboard, video, mouse, audio and USB between eight different networks/computers. It also allows a USB port to be assigned to a specific computer whilst switching other devices, for example when a USB smart card reader needs to remain associated with a certain computer.
- UHD 4K30 resolution — Supports resolutions up to 3840×2160 @30Hz.
- Extended/mirrored display support — Enables switching of keyboard, mouse and up to 2 displays (extended or mirrored) between computers.
- Multi-display support — Switch to KM mode to enable keyboard and mouse control switching between computers, when each computer is connected to up to 4 displays (extended or mirrored).
- Seamless switching between computers (virtual display technology) — Automatically switch control of all peripherals from one computer to another by dragging the cursor between the display borders of each computer.
- Versatile and flexible — Configurable as a KVM switch (default) to share a display, keyboard and mouse between connected computers, or as a KM switch to share keyboard and mouse and work simultaneously on multiple computers connected to separate displays.
- Copy & Paste — Transfer text and files between all computers connected to the KVM switch (no network connection required between parties). Use standard copy-paste key combinations (CTRL+C / CTRL+V) or context menu commands.
- USB 3.0 Super Speed port — Transfer data and files between peripherals and computers at USB 3.0 Super Speed via the KVM switch's USB 3.0 ports.
- Fast USB charging — Rapidly charge USB devices connected to the high-power USB ports.
- USB freeze — Assign the USB port to a specific computer whilst switching the keyboard, video, mouse and audio peripherals between other computers. Useful when a USB device such as a flash drive needs to remain associated with a certain computer, whilst the user works on another computer.
- Audio freeze — Assign the audio port to a specific computer whilst switching the keyboard, video, mouse and USB peripherals between other computers. Useful in scenarios where a user needs to listen to audio from one computer whilst working on another computer.
Applications
- Government agencies
- Military
- Financial institutions



Specifications



CONSOLE PORTS

2 DisplayPort 1.2 connectors

2 USB–A connectors for keyboard and mouse

3 USB–A 3.0 connectors for USB peripherals

1 3.5 mm mini-jack for unbalanced stereo audio

1 RJ–45 connector for control (RDC)

COMPUTER PORTS

16 DisplayPort 1.2 connectors

8 USB–B connectors for keyboard and mouse

8 USB–B 3.0 connectors for USB peripherals

8 3.5 mm mini-jacks for unbalanced stereo audio

MAXIMUM RESOLUTION

UHD 4K30 (3840X2160) @30Hz

POWER CONSUMPTION

35 W max

AC INPUT

100 to 240 V AC

POWER SUPPLY TYPE

External

OPERATING TEMPERATURE

0° to 40°C (32° to 104°F)

STORAGE TEMPERATURE

–20° to 60°C (–4° to 140°F)

HUMIDITY

0–80% RH, non-condensing

SUPPORTED OPERATING SYSTEMS

Windows, Linux, Mac

PRODUCT CERTIFICATION

CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada
