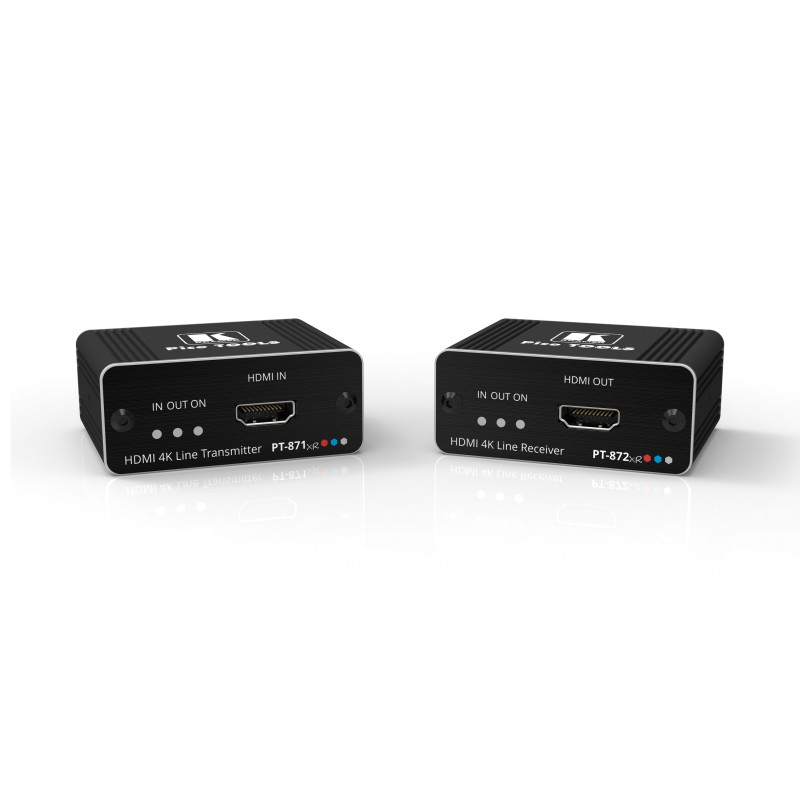

Kramer PT-871/2XR-KIT - 4K HDR HDMI Compact PoC Extender over Long-Reach DGKat 2.0

1011014
Kramer PT-871/2XR-KIT - 4K HDR HDMI Compact PoC Extender over Long-Reach DGKat 2.0
Kramer PT-871/2XR-KIT - 4K HDR HDMI Compact PoC Extender over Long-Reach DGKat 2.0
4K HDR HDMI Compact PoC Extender over Long-Reach DGKat 2.0
Visuals Price
564.40 CHF VAT excl.

610.12 CHF Inc. VAT

Manufacturer price 664,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Compact 4K HDR HDMI extender PoC Kramer over long-range DGKat 2.0

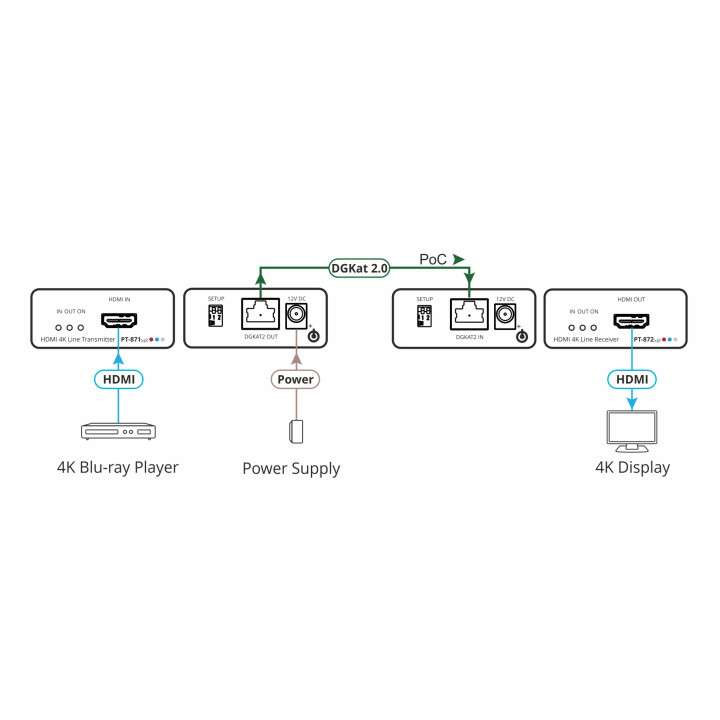

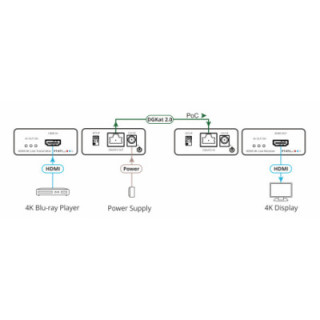

The PT-871/2xr-KIT is a high-performance long-range DGKat™ 2.0 extension kit for 4K@60Hz (4:4:4) HDMI 2.0 HDR and HDCP 2.2 signals with bidirectional power supply over twisted pair. The PT-871xr transmitter converts the HDMI input signal to a DGKat™ 2.0 signal. The PT-872xr receiver converts the transmitted DGKat™ 2.0 signal to an HDMI signal. The PT-871/2xr-KIT extends video signals up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over shielded Kramer cables.
- High-performance extension kit - Professional DGKat™ 2.0 extension kit to provide long-range signals and bidirectional power supply over twisted pair copper infrastructures. The PT-871/2xr-Kit extension kit uses low-level video compression technology that offers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. The PT-871xr converts the HDMI input signal to a DGKat™ 2.0 signal. The PT-872xr converts the transmitted DGKat™ 2.0 signal to an HDMI signal. The PT-871/2xr-KIT extends video signals up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over shielded Kramer cables.
- HDMI signal extension - HDR, HDMI 2.0 and HDCP 2.2 compatible. Supports Deep Colour, x.v.Colour™, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D.
- EDID pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel audio extension - Up to 32 channels of uncompressed digital stereo signals for studio-quality surround sound support.
- Cost-effective maintenance - LED status indicators for HDMI and DGKat™ 2.0 ports facilitate local maintenance and troubleshooting.
- Easy installation - Single twisted pair cable for signal and power wiring. Compact fanless Pico TOOLS™ housing for rear-of-device mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.
Applications
- Long-distance AV signal extension for large room connectivity
- AV extension in meeting rooms, boardrooms, hotels and corporate facilities



Specification



INPUTS

1 HDMI: On a female HDMI connector (PT-871xr)

1 DGKat: On a female RJ-45 connector for extension line (PT-872xr)

OUTPUTS

1 DGKat: On a female RJ-45 connector for extension line (PT-871xr)

1 HDMI: On a female HDMI connector (PT-872xr)

VIDEO

Transmitted data bandwidth: Up to 18Gbps (6Gbps per graphics channel)

Maximum resolution at high compression level: 3840x2160@60Hz (4:4:4) 24bpp

Maximum resolution at standard compression level: 4096x2160@60Hz (4:4:4) 24bpp

Standards compliance: HDR10, HDMI 2.0, HDCP 2.2

HIGH COMPRESSION RANGE EXTENSION

Using shielded UNIKAT cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or Full HD (1080p @60Hz 36bpp)

Using HDKat Plenum cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or Full HD (1080p @60Hz 36bpp)

STANDARD COMPRESSION RANGE EXTENSION

Using shielded UNIKAT cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or Full HD (1080p @60Hz 36bpp)

EXTENSION LINE

Signal compression: Standard or high compression level applied to signals >1080p

Compliance: DGKat 2.0

USER INTERFACE

Indicators: IN, OUT and ON LEDs

Controls: DIP switches to set compression level

POWER SUPPLY

Source: 12V DC, 2A

Consumption: 600mA

ENVIRONMENTAL CONDITIONS

Operating temperature: 0° to +40°C (32° to 104°F)

Storage temperature: -40° to +70°C (-40° to 158°F)

Humidity: 10% to 90%, RH non-condensing

HOUSING

Size: Pico Tools

Type: Aluminium

Cooling: Convection ventilation

ACCESSORIES

Included: 1 mains adapter with cable, 2 sets of brackets

REGULATION

Safety: CE, UL

Environment: RoHS, WEEE

PRODUCT DIMENSIONS

6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") L, W, H

PRODUCT WEIGHT

0.2kg (0.5lb) approx.
