Kramer SK41PU-3(CPN10295) - HSL Secure SH KVM Switch 4-Port DP video, w/fUSB, PP 3.0
Kramer SK41PU-3(CPN10295) - HSL Secure SH KVM Switch 4-Port DP video, w/fUSB, PP 3.0
HSL Secure SH KVM Switch 4-Port DP video, w/fUSB, PP 3.0
... learn more
Visuals Price
1,124.55 CHF VAT excl.

1,215.64 CHF Inc. VAT

Manufacturer price 1 323,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer HSL SH secure KVM switch 4-port DP video, with fUSB, PP 3.0

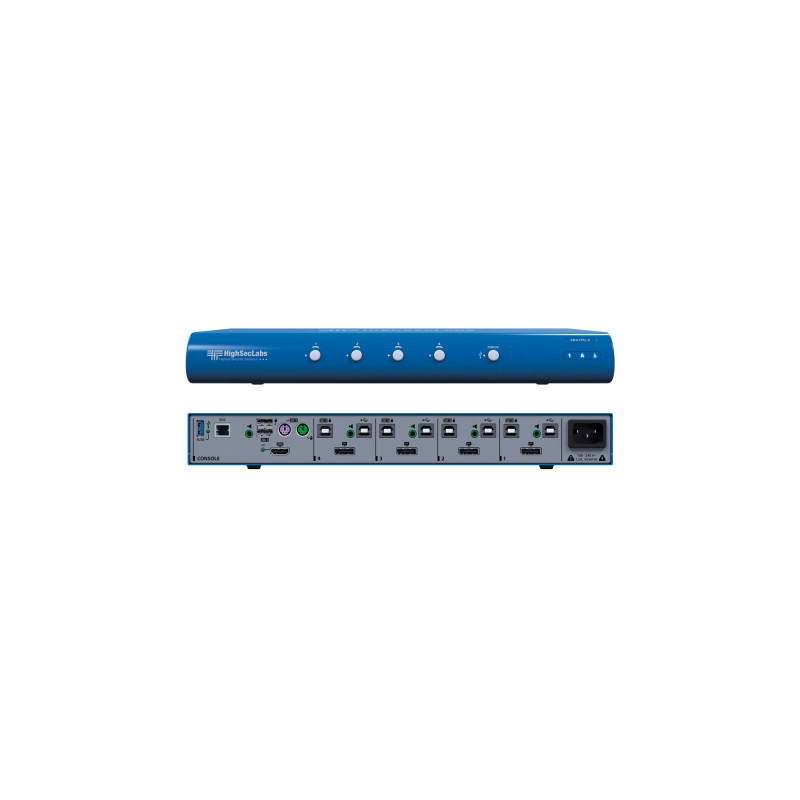

The SK41PU-3 is a 4-port 4K30 UHD DisplayPort to HDMI secure KVM switch. It allows users to share peripherals - keyboard, video, mouse, audio and USB - between four networks/computers of different security levels whilst isolating all hosts and protecting against data leakage and malicious attacks via shared peripherals. It also allows a USB port to be assigned to a specific computer whilst switching other peripherals, for example when a USB smart card reader must remain associated with a particular computer. The SK41PU-3 offers the highest possible level of isolation between connected computers and is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified.
- Maximum security by design - NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for Peripheral Sharing Switch (PSS) devices.
- 4K30 UHD resolution - Supports resolutions up to 3840×2160 @30Hz.
- Work freely without compromising security - Display and control classified and unclassified computers without compromising security.
- Prevent information leakage - Block device exploits, information leakage, eavesdropping, signal transmission, malware, hardware and software tampering.
- Filter USB devices - Allow or block specific USB devices based on VID/PID characteristics.
- Seamless switching between computers (virtual display technology) - Automatically switch control of all peripherals from one computer to another by moving the cursor between the display edges of each computer.
- Biometric/smart card reader support - Connect a smart card/biometric reader to the secure port to support user authentication across multiple isolated computers.
- Keyboard lock indication - Caps Lock, Num Lock and Scroll Lock indication on the front panel.
Applications
- High-security organisations
- Government agencies
- Military
- Financial institutions
- Any other organisation handling sensitive and confidential information



Specifications



CONSOLE PORTS

1 HDMI connector, 2 USB-A connectors for keyboard and mouse, 1 USB-A connector for USB peripherals, 2 DIN-5 connectors for PS/2 keyboard and mouse, 1 x 3.5 mm mini-jack for unbalanced stereo audio, 1 RJ45 connector for control (RDC)

COMPUTER PORTS

4 DisplayPort connectors, 4 USB-B connectors for keyboard and mouse, 4 USB-B connectors for USB peripherals, 4 x 3.5 mm mini-jacks for unbalanced stereo audio

MAXIMUM RESOLUTION

UHD 4K30 (3840X2160 @30Hz)

POWER REQUIREMENTS

35 W max

AC INPUT

100 to 240 V AC

POWER TYPE

Internal

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–20° to +60°C (–4° to 140°F)

HUMIDITY

10% to 80%, non-condensing RH

SUPPORTED OPERATING SYSTEMS

Windows, Linux, Mac

SAFETY CERTIFICATION

NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices

PRODUCT CERTIFICATION

CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada
