Kramer SX42HU-3(CPN10310) - HighSecLabs Secure 2x4 4K30 UHD HDMI Mini-Matrix KVM Switch with fUSB
1011088
SX42HU-3 is a secure 2x4 4K30 UHD HDMI mini matrix KVM switch. It enables viewing and controlling four computers with different security classifications simultaneously while securely sharing peripherals - keyboard, video, mouse, audio, and USB devices
Visuals Price
1,297.10 CHF
VAT excl.
1,402.17 CHF Inc. VAT
Manufacturer price 1 526,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer HighSecLabs 2x4 4K30 UHD HDMI secure mini-matrix KVM switch with fUSB

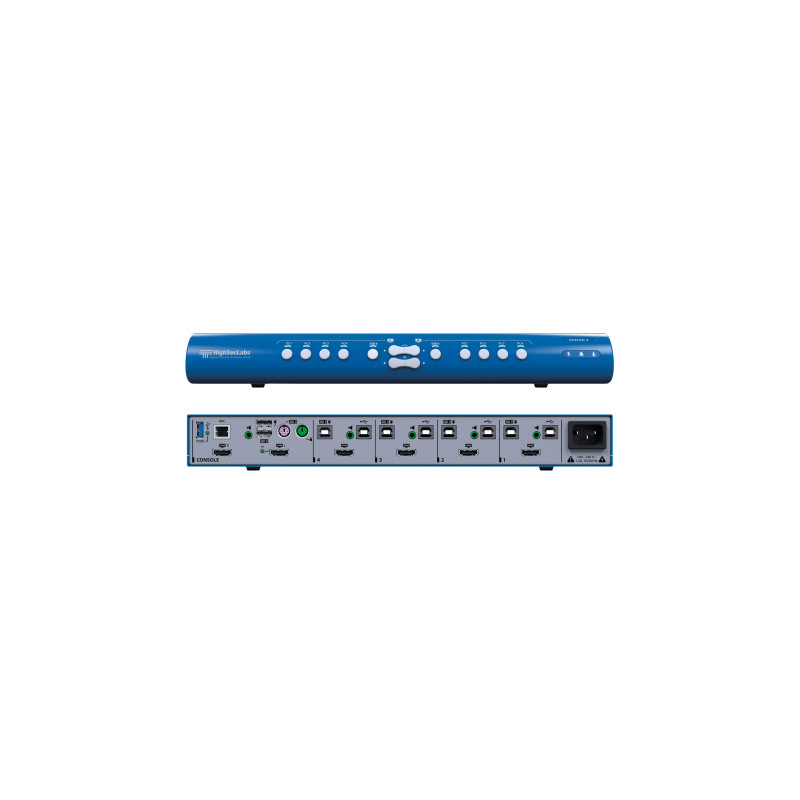

The SX42HU-3 is a 2x4 4K30 UHD HDMI secure mini-matrix KVM switch. It enables the simultaneous viewing and control of four computers with different security classifications whilst securely sharing devices - keyboard, video, mouse, audio and USB devices. It also enables assigning a USB port to a specific computer whilst switching other devices, for example when a USB smart card reader must remain associated with a certain computer. The SX42HU-3 offers the highest level of isolation possible between connected computers and is certified NIAP Common Criteria Protection Profile version 3.0 (PP3.0).
- Maximum security by design - NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for Peripheral Sharing Switch (PSS) devices.
- 4K30 UHD resolution - Supports resolutions up to 3840×2160 @30Hz.
- Independent device switching - Supports independent switching of video, audio, keyboard, mouse or USB devices between primary and secondary computers.
- Work freely without compromising security - Display the screen of any connected computer on both mini-matrix screens simultaneously or extend the screens to external 3rd and 4th displays.
- Prevent information leakage - Block device exploits, information leakage, eavesdropping, signal transmission, malware, hardware and firmware manipulation.
- Filter USB devices - Allow or block specific USB devices according to VID/PID characteristics.
- Seamless switching between computers (virtual display technology) - Automatically switch control of all devices from one computer to another by moving the cursor between the display borders of each computer.
- Biometric/smart card reader support - Connect a smart card/biometric reader to the secure port to support user authentication on multiple isolated computers.
- Keyboard lock indication - Indication of Caps Lock, Num Lock and Scroll Lock keys on the front panel.
Applications
- Command and control centres
- Highly secure organisations
- Government agencies
- Military
- Financial institutions
- Any other organisation handling sensitive and confidential information
|
|
Specifications |
|
|
CONSOLE PORTS |
2 HDMI 1.4 connectors, 2 USB-A connectors for keyboard and mouse, 1 USB-A connector for USB devices, 2 DIN-5 connectors for PS/2 keyboard and mouse, 1 mini-jack 3.5 mm for unbalanced stereo audio, 1 RJ45 connector for control (RDC) |
|
|
COMPUTER PORTS |
4 HDMI 1.4 connectors, 4 USB-B connectors for keyboard and mouse, 4 USB-B connectors for USB devices, 4 mini-jacks 3.5 mm for unbalanced stereo audio |
|
|
MAXIMUM RESOLUTION |
4K30 UHD (3840X2160 @30Hz) |
|
|
POWER REQUIRED |
35 W max |
|
|
AC INPUT |
100 to 240 V AC |
|
|
POWER SUPPLY TYPE |
Internal |
|
|
OPERATING TEMPERATURE |
32° to 104°F (0° to 40°C) |
|
|
STORAGE TEMPERATURE |
-4° to 140°F (-20° to 60°C) |
|
|
SUPPORTED OPERATING SYSTEMS |
Windows, Linux, Mac |
|
|
SECURITY CERTIFICATION |
NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices |
|
|
PRODUCT CERTIFICATION |
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada |
|
|
HUMIDITY |
0-80% RH, non-condensing |
