Kramer AAD-OUT2-F16/STANDALONE - 2-Output Analog & Digital Audio Card
1036104
2 channels Audio Analog & Digital output Card for Frame 16
Visuals Price
691.90 CHF
VAT excl.
747.94 CHF Inc. VAT
Manufacturer price 814,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

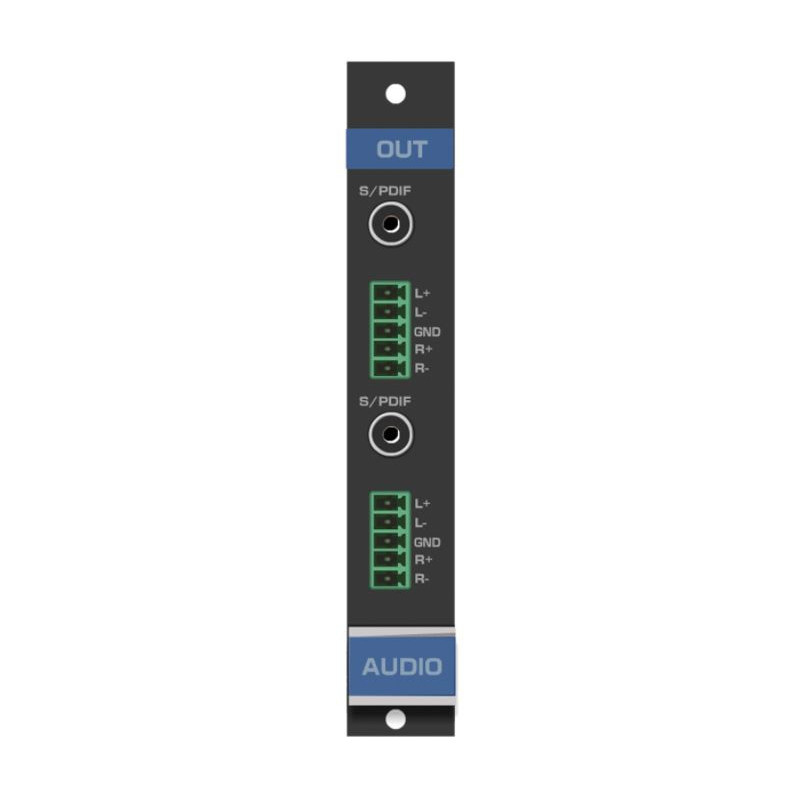

Kramer 2-output analogue and digital audio card
AAD−OUT2−F16 is a two-channel analogue and digital output card for the VS−1616 series multi-format modular digital matrices. The AAD−OUT2−F16 produces two analogue and digital signals from the chassis.
Features
- Balanced analogue audio on terminal block connector.
- S/PDIF digital audio on RCA connector.
- Applications: Audio production and broadcast studios
Multimedia and presentation
AAD−OUT2−F16 is a two-channel analogue and digital output card for the VS−1616 series multi-format modular digital matrices. The AAD−OUT2−F16 produces two analogue and digital signals from the chassis.
Features
- Balanced analogue audio on terminal block connector.
- S/PDIF digital audio on RCA connector.
- Applications: Audio production and broadcast studios
Multimedia and presentation
|
|
Specifications |
|
|
Ports |
2 S/PDIF (digital audio) on RCA connectors, 2 balanced stereo audio (analogue audio) on 5-pin terminal blocks |
|
|
Total bandwidth |
Analogue (-3dB): >100kHz, Digital: 32kHz to 192kHz sampling frequency |
|
|
Power consumption |
5.8W |
|
|
Operating temperature |
32 degrees to 104 degrees F (0 degrees to +40 degrees C) |
|
|
Storage temperature |
-40 degrees to 158 degrees F (-40 degrees to +70 degrees C) |
|
|
Humidity |
10% to 90%, RH non-condensing |
|
|
Safety standards compliance |
CE |
|
|
Environmental regulations compliance |
Complies with appropriate requirements of RoHS and WEEE directives |
|
|
Dimensions (W x D x H) |
19.00 x 13.00 x 2.00 cm (7.48 x 5.12 x 0.79") |
|
|
Weight |
181g (6.4 oz) approximately |
2 channels Audio Analog & Digital output Card for Frame 16
