Adder - AdderLink Infinity CAM - VGA

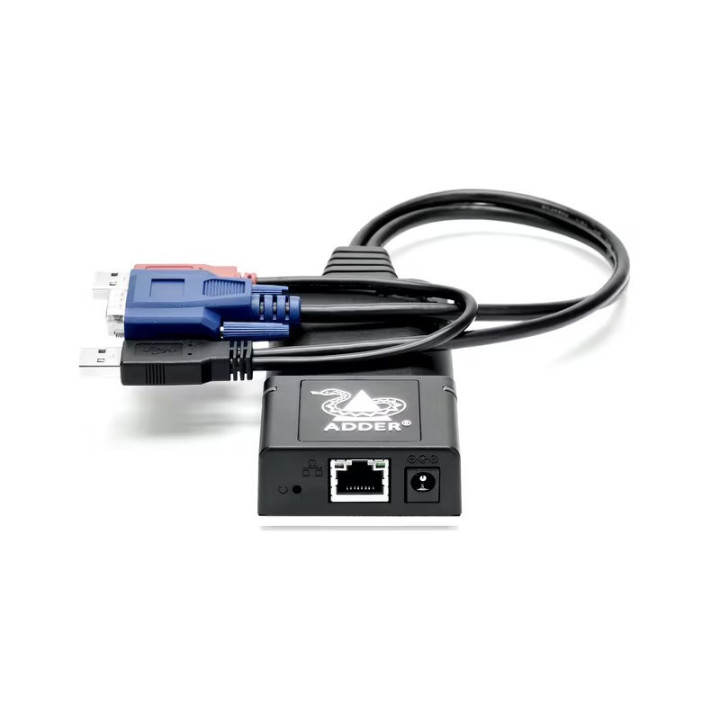

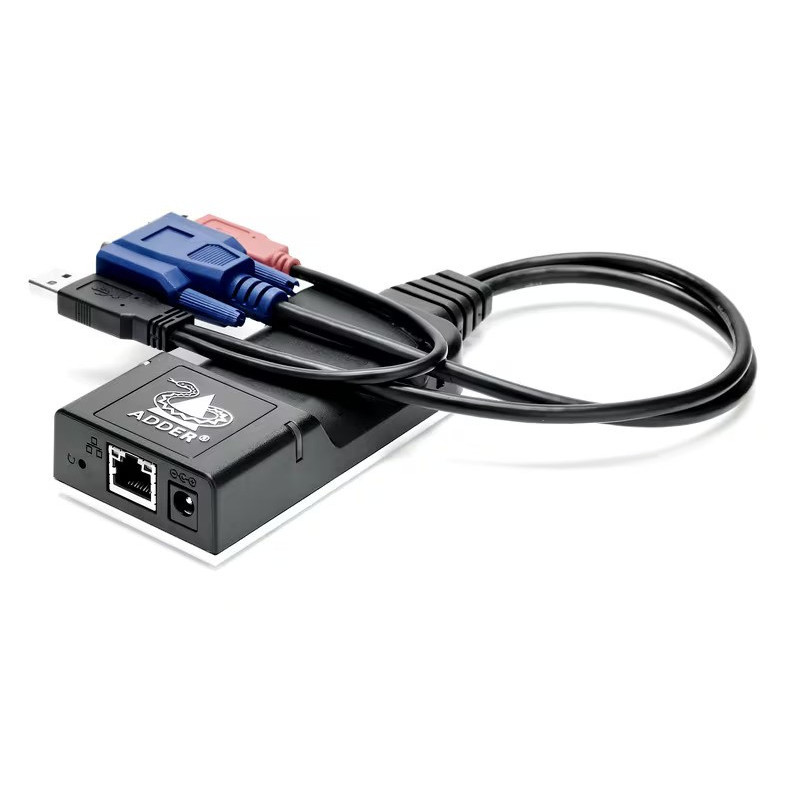

Adder ALIF100T-VGA - AdderLink Infinity CAM - VGA
1055379
ZeroU IP-based high performance KVM for extension/matrix of video, audio and USB over a single cable
Visuals Price
778.00 CHF
VAT excl.
841.02 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video information (for 1 screen) | ||
| Maximum resolution | 1920 x 1200 | |
| Frame rate | 60 | |
| Colour depth | 8 bpc | |
| Computer connections | ||
| USB A | 2× 1.1 Full emulation, full speed, low speed | |
| VGA | 1 | |
| Link ports | ||
| 8p8c (RJ45) | 1× | |
| Audio connections | ||
| Audio type | Digital | |
| Channels | 2 | |
| Audio input ports | 1× USB | |
| Audio direction | Bidirectional | |
| Bit size | 16 | |
| Speed (kHz) | 48 | |
| Cabling requirements | ||
| Recommended cable type | CAT5e and above | |
| Maximum cable length | 100m / 328.1ft | |
| Network support | ||
| Bandwidth | 1GbE | |
| 10/100 support | No | |
| Environment | ||
| Operating temperature | 0 - 50 °C / 32 - 122 °F | |
| Storage temperature | -10 - 60 °C / 14 - 140 °F | |
| Operating humidity (%) | 10% - 90% (non-condensing) | |
| Storage humidity (%) | 10% - 90% (non-condensing) | |
| Altitude | 2000m / 6561.7ft | |
| Mean Time Between Failures (MTBF) | 2,000,000 h | |
| MTBF standard | Telcordia SR332 Version 4 March 2016 Calculated @ 55C | |
| Power supply | ||
| USB Powered | 2× | |
| 5V | 1× | |
| Additional power information | USB power: 2x USB2.0 (2x 500mA @5V) 5W• External power: 5VDC, 1A, (LPS) | |
| Power consumption | ||
| Maximum power (Watts) | 5 | |
| Typical power (Watts) | 3 | |
| Physical design | ||
| Construction material | ABS and aluminium construction | |
| U size | 0 | |
| Width | 55mm / 2.2in | |
| Height | 25mm / 1in | |
| Depth | 110mm / 4.30in | |
| Flying lead length | 300mm | |
| Weight | 0.2kg / 0.4lb | |
| Compatibility | ||
| OS compatibility | All known operating systems | |
| Certifications and standards | ||
| Certifications | CE, cULus - E476334, FCC, ICES, UKCA | |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003 | |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH | |
| Packaging box | ||
| Length | 292mm / 11.5in | |
| Width | 245mm / 9.6in | |
| Depth | 55mm / 2.2in | |
| Weight | 0.5kg / 1.1lb | |
| Ordering information | ||
| Code | Description | |
| ALIF100T-VGA | ALIF100T- VGA Transmitter | |
ZeroU IP-based high performance KVM for extension/matrix of video, audio and USB over a single cable
