Adder - AdderLink Infinity CAM - USB/DP
Adder ALIF101T-DP - AdderLink Infinity CAM - USB/DP
1055380

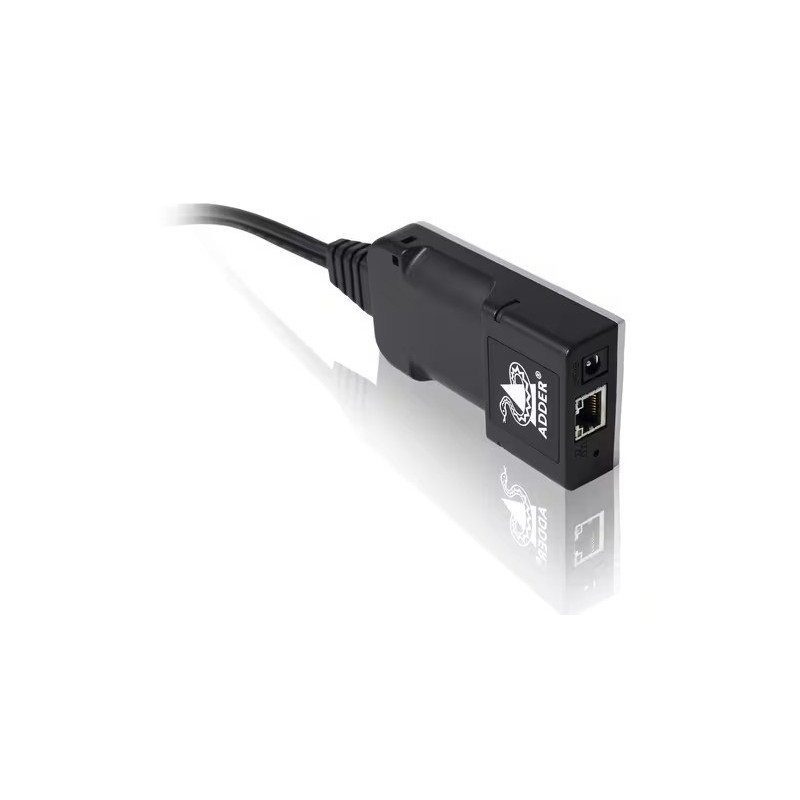

ADDERLink Infinity ALIF101T-DP is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.
Visuals Price
974.00 CHF
VAT excl.
1,052.89 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video Information (for 1 screen) | ||
| Maximum Resolution | 2560 x 1600 | |
| Frame Rate | 60 | |
| Colour Depth | 8 bpc | |
| Computer Connections | ||
| USB A | 2× 2.0 True Emulation, Full Speed, Low Speed, High Speed | |
| Full-size DisplayPort | 1× 1.1 (dual mode) | |
| Link Ports | ||
| 8p8c (RJ45) | 1× | |
| Audio Connections | ||
| Audio Type | Digital | |
| Channels | 2 | |
| Audio Input Ports | 1× USB | |
| Audio Direction | Bidirectional | |
| Size (bit) | 16 | |
| Speed (kHz) | 48 | |
| Additional Information | 2-channel linear PCM digital audio | |
| Cabling Requirements | ||
| Recommended Cable Type | CAT5e and above | |
| Maximum Cable Length | 100 m / 328.1 ft | |
| Network Support | ||
| Bandwidth | 1GbE | |
| 10/100 Support | No | |
| Environment | ||
| Operating Temperature | 0 - 50 °C / 32 - 122 °F | |
| Storage Temperature | -10 - 60 °C / 14 - 140 °F | |
| Operating Humidity Rate (%) | 10% - 90% (non-condensing) | |
| Storage Humidity Rate (%) | 10% - 90% (non-condensing) | |
| Altitude | 2000 m / 6561.7 ft | |
| Mean Time Between Failures (MTBF) | 1,200,000 h | |
| MTBF Standard | Telcordia SR332 Issue 4 March 2016 Calculated @ 55C | |
| Power Source | ||
| USB Powered | 2× | |
| 5V | 1× | |
| Additional Power Information | USB Power: 2x USB2.0 (2x 500 mA @5V) 5W• External Power: 5VDC, 1A, (LPS) | |
| Power Consumption | ||
| Maximum Power (Watts) | 5 | |
| Typical Power (Watts) | 3 | |
| Physical Design | ||
| Construction Material | ABS and aluminium construction | |
| U Size | 0 | |
| Width | 55 mm / 2.2 in | |
| Height | 25 mm / 1 in | |
| Depth | 110 mm / 4.30 in | |
| Flying Lead Cable Length | 300 mm | |
| Weight | 0.2 kg / 0.4 lb | |
| Compatibility | ||
| OS Compatibility | All known operating systems | |
| System Requirements | Requires a DisplayPort Dual-Mode (DP++) compatible source | |
| Approvals and Standards | ||
| Approvals | CE, cULus - E476334, FCC, ICES, UKCA | |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003 | |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH | |
| Packaging Box | ||
| Length | 292 mm / 11.5 in | |
| Width | 245 mm / 9.6 in | |
| Depth | 55 mm / 2.2 in | |
| Weight | 0.5 kg / 1.1 lb | |
| Ordering Information | ||
| Code | Description | |
| ALIF101T-DP | ALIF101T-DP Transmitter | |
ADDERLink Infinity ALIF101T-DP is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.
