Adder - AdderLink Infinity Dual, Dual Head Single Link Receiver with PSU-RPS-5V-3M
Adder ALIF2020R-RED - AdderLink Infinity Dual, Dual Head Single Link Receiver with PSU-RPS-5V-3M
1055386
AdderLink Infinity Dual, Dual Head Single Link Receiver with PSU-RPS-5V-3M
Visuals Price
1,376.00 CHF
VAT excl.
1,487.46 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video resolutions | DVI-D Single Link resolutions up to a maximum of 1920 x 1200 at 60 Hz | |
| Approvals / Compliance | CE FCC |
|
| Standards | Supports USB 2.0 devices (low, full and high speed). The security function allows non-HID devices to be blocked. Isochronous devices are not supported (for example, USB audio or video devices). | |
| Cabling requirements | Copper (CATx up to 100 m) or fibre (on request) | |
| Operating temperature | 0 to 40 °C / 32 to 104 °F. | |
| Transmitter (Tx) connections | DVI-D x 2, 3.5 mm audio input, 3.5 mm audio output, USB type B, 9-pin D-type RS232, SFP slot | |
| Receiver (Rx) connections | ||

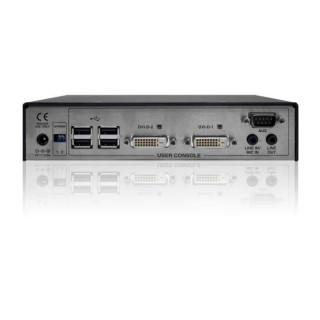

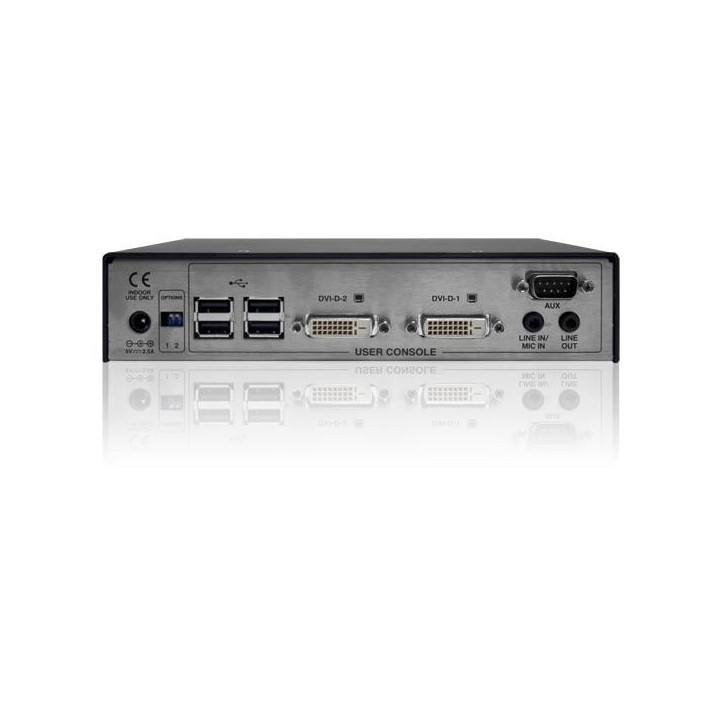

| Video: | DVI-D x 2, 3.5 mm audio input, 3.5 mm audio output, USB type A x 4, 9-pin D-type RS232, SFP slot | |
| Physical design | Compact 1U housing, robust metal construction. 198 mm (7.92 inches) (W), 44 mm (1.76 inches) (H), 150 mm (6 inches) (D), 1.1 kg (2.7 lbs) | |
| Power supply | 2.5 mm DC socket (power supply included), 100-240 VAC, 50/60 Hz, 0.4 A, power supply input, 5 VDC, 12.5 W power supply output | |
| Software compatibility | All known operating systems | |
AdderLink Infinity Dual, Dual Head Single Link Receiver with PSU-RPS-5V-3M
