Adder - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M

Adder ALIF2020T-RED - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M

1055388
Adder ALIF2020T-RED - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
Adder ALIF2020T-RED - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
Adder ALIF2020T-RED - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
Adder ALIF2020T-RED - Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
... learn more
Visuals Price
1,376.00 CHF VAT excl.

1,487.46 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Mechanical Characteristics
Height 1.76 in. (44 mm)
Width 7.92 in. (198 mm)
Depth 6 in. (150 mm)
Weight 2.7 lbs (1.1 kg)
Environment
Operating Temperature 0° to 40° / 32° to 104°
Power Supply
Operating Voltage 5VDC 20W output from mains adapter
Power Supply Frequency 100-240VAC 50/60Hz
Input 2.5mm DC socket (mains adapter included) 0.8A, mains adapter input
Supported Hardware
Computers All computers with DVI-D, USB, audio, RS232 - as required
Video The system supports two DVI-D Single Link resolutions up to 1920 x 1200 @ 60Hz

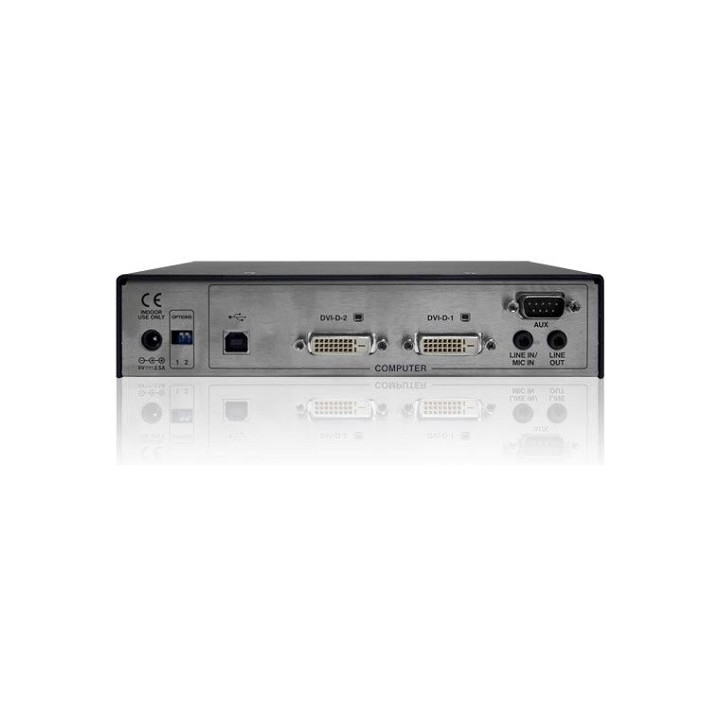

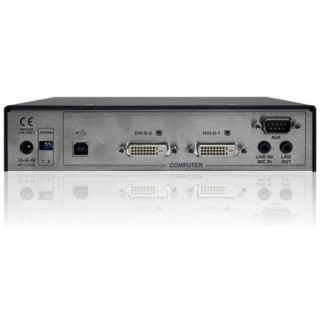

Transmitter Connections 2 x DVI-D, 3.5mm audio input, 3.5mm audio output, USB type B, RS232 9-pin type D, 1 x 8p8c and 1 x SFP for AdderLink Infinity network connections
Peripherals USB, Audio, RS232 - as required
Standards
Certifications CE, FCC
Connections
Tx Connections DVI-D x 2, 3.5mm Audio Input, 3.5mm Audio Output, USB type B, RS232 9-pin type D
Adderlink Infinity Dual, Dual Head Single Link Transmitter with PSU-RPS-5V-3M
