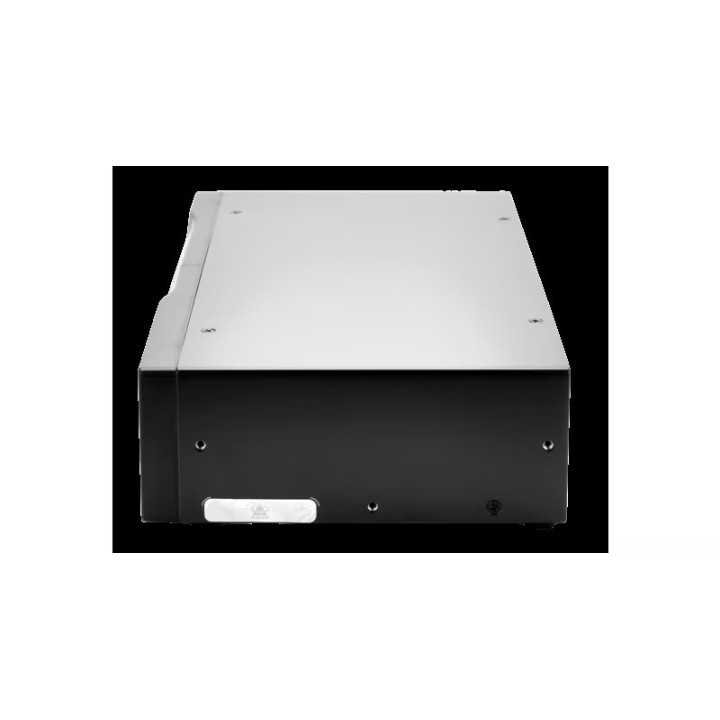

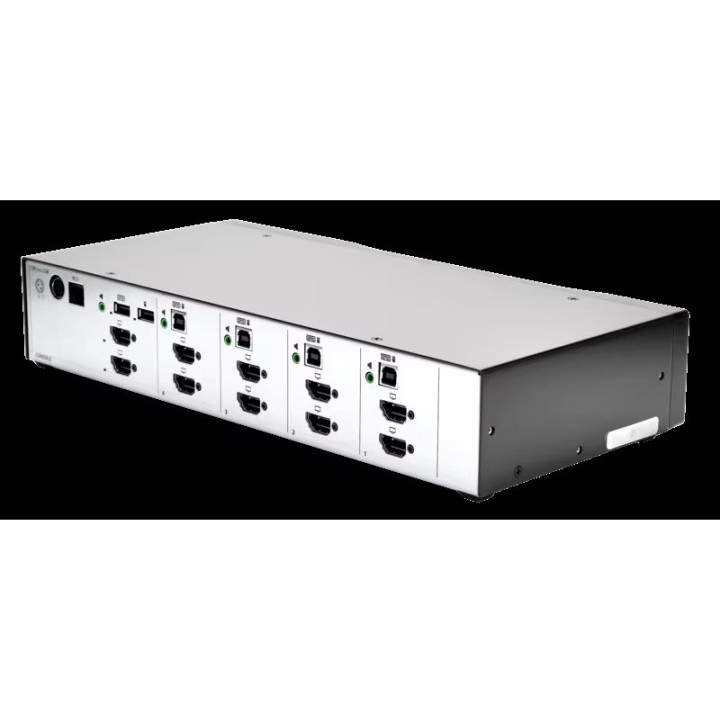

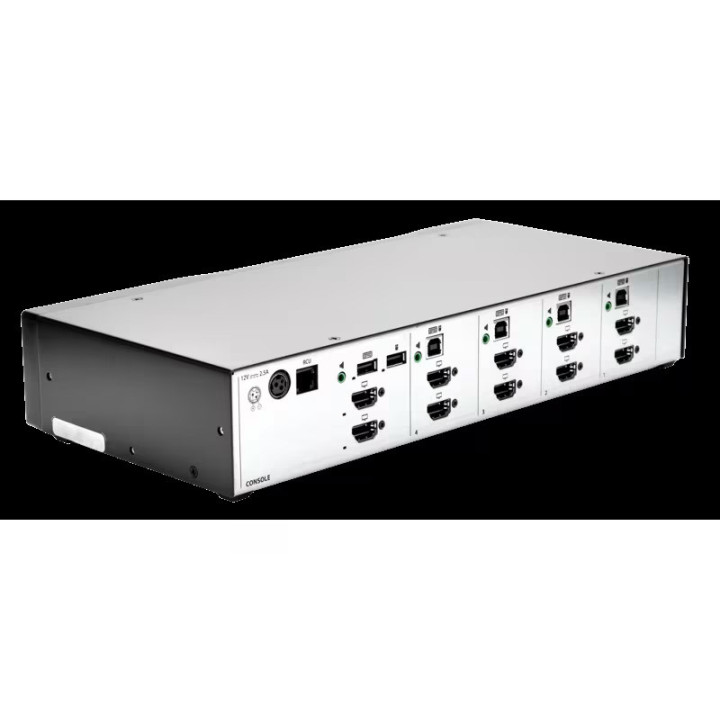

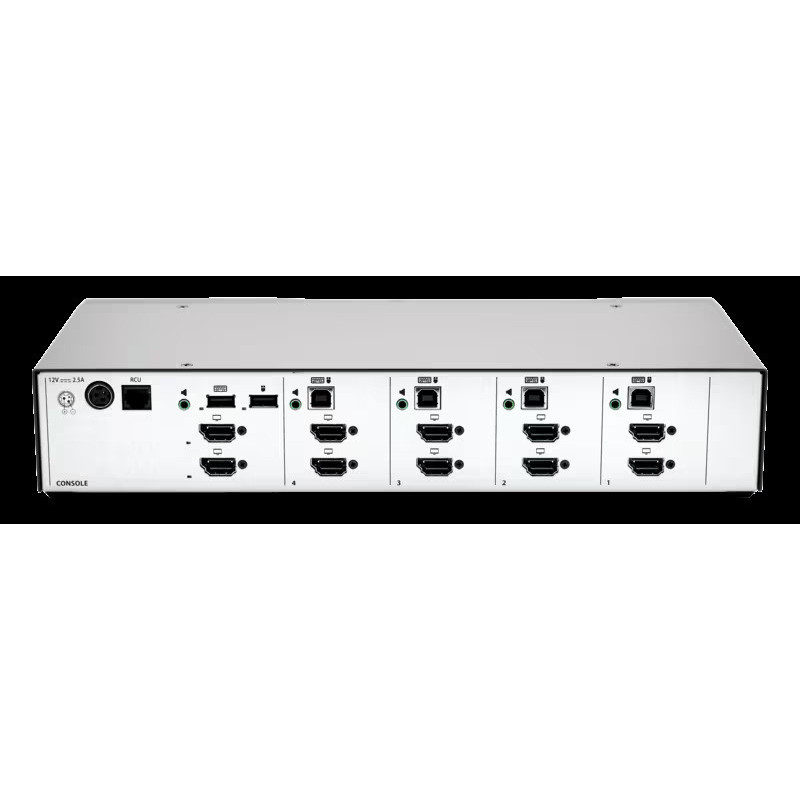

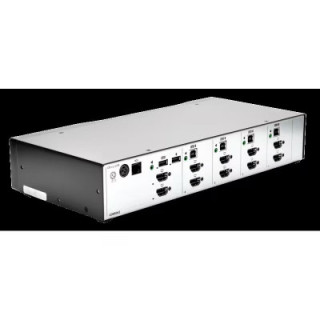

Adder - ADDERView Secure 4 port DP\HDMI dual head switch

Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch

1055427
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
Adder AVS-4214 - ADDERView Secure 4 port DP HDMI dual head switch
ADDERView Secure 4 port DP\HDMI dual head switch
... learn more
Visuals Price
1,812.00 CHF VAT excl.

1,958.77 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Video information (for 1 display)
Maximum resolution 3840 x 2160
Frame rate 60
Colour depth 8 bpc
Computer connections
USB B 4× 2.0 HID Emulation
Dual port (DP+HDMI) 8× 1.2 (dual mode)
Console connections
USB A 2× 2.0 HID Emulation
Dual port (DP and HDMI) 2× 1.2 (dual mode)
Serial ports
Serial connection 1×
Serial standard RS232
Serial connection type (console) RJ12 (6p6c)
Audio connections
Audio type Analogue
Channels 2
Audio input ports 1× 3.5 mm jack
Audio output ports 1× 3.5 mm jack
Audio direction Output only
Network support
10/100 support No
Environment
Operating temperature 0 - 40 °C / 32 - 104 °F
Storage temperature -20 - 60 °C / -4 - 140 °F
Operating humidity (%) 0% - 80% (non-condensing)
Storage humidity (%) 0% - 80% (non-condensing)
Temperature regulation Fanless
Power source
12V 3-pin 1×
Input power 2.5A power supply
Additional power information 100 - 240V AC, 47/63Hz Power supply unit output 12V DC 30W
Physical design
Construction material Robust metal construction
Width 344 mm / 13.5 in
Height 61 mm / 2.4 in
Depth 165 mm / 6.50 in
Weight 2 kg / 4.4 lb
Front panel features
Multi-colour status LEDs 4×
E-Paper display 1×
Compatibility
OS compatibility Windows, Linux, macOS, all known operating systems
Approvals and standards
Approvals CE, cTUVus, FCC, UKCA
Standards EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B
Other EU REACH, NIAP PP 4.0, UK REACH
Ordering information
Code Description
AVS-4214 ADDERView secure 4-port dual-head switch
ADDERView Secure 4 port DP\HDMI dual head switch
