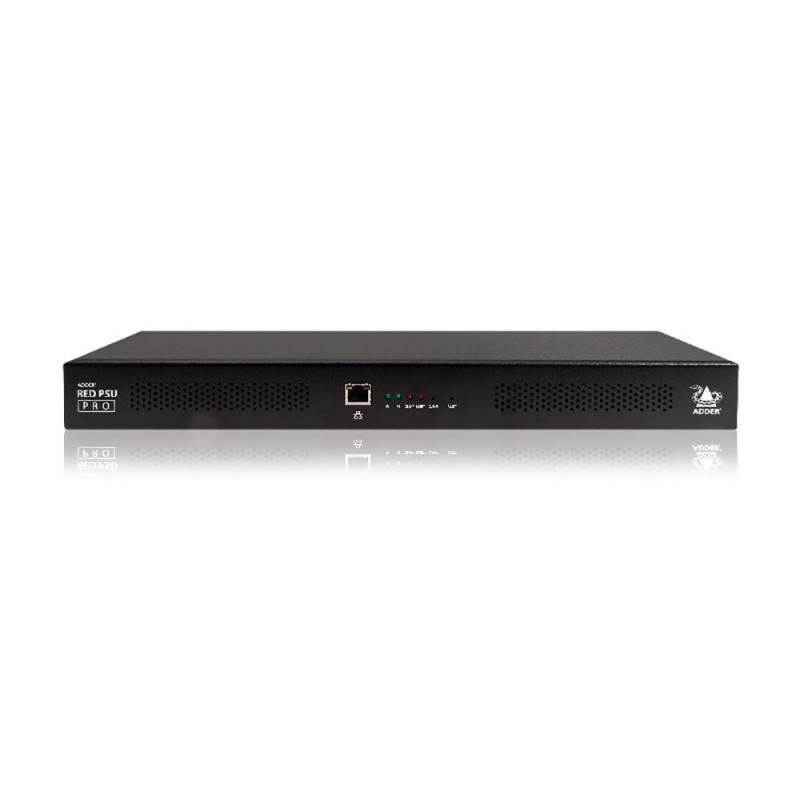

Adder - Adder dual redundant Power supply - 8 port

Adder PSU-REDPRO2-8 - Adder dual redundant Power supply - 8 port

1055557
Adder PSU-REDPRO2-8 - Adder dual redundant Power supply - 8 port
Adder PSU-REDPRO2-8 - Adder dual redundant Power supply - 8 port
Adder dual redundant Power supply - 8 port
... learn more
Visuals Price
1,940.00 CHF VAT excl.

2,097.14 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Technical specifications
Mains input 2x IEC input 90-264VAC 47/63Hz Efficiency 94% at 50% load Power factor 0.9 MIN typical
Devices 1x 8p8c for 10/100 Ethernet port
Power supply 8 or 16x lockable 3-pin DC connector, 12VDC 30W output. Each output is a limited power source (LPS) compliant with IEC 60950-1 standard
Physical design Compact housing, robust metal construction Designed for 19" rack mounting (W)435mm/17.13" x (H)44mm/1.73" x (D)275mm/10.8" Weight: 4.5kg/9.9lbs
Operating conditions Temperature 0 to 50ºC/32 to 122ºF Humidity 10-95% Non-condensing Altitude 2000 metres / 6500 feet
Mean Time Between Failures (MTBF) PSU-REDPRO(x)-8 = 1,000,000 hours PSU-REDPRO(x)-16 = 600,000 hours (Both units tested at 55°C ambient temperature and 50% electrical stress test, Reference Telcordia SR-332 4)
Local customer requirements Browser versions Internet Explorer™ 10.11 Firefox™ 24 ESR and above Chrome™ 44 and above
Adder dual redundant Power supply - 8 port
