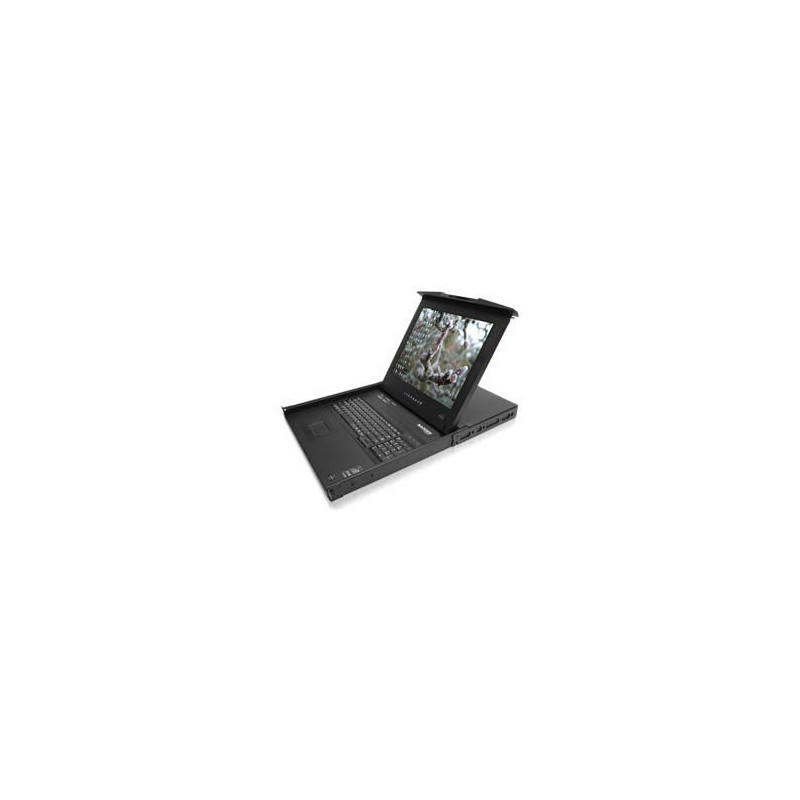

Adder - AdderView Rack Tray 17" LCD with 16 Port KVM switch

Adder RD1716 XX - AdderView Rack Tray 17" LCD with 16 Port KVM switch

1055562
Adder RD1716 XX - AdderView Rack Tray 17" LCD with 16 Port KVM switch
Adder RD1716 XX - AdderView Rack Tray 17" LCD with 16 Port KVM switch
AdderView RackDrawer 17" Screen, Integrated 16 port CatX1000 KVM Switch XX Keyboard
... learn more
Visuals Price
2,141.00 CHF VAT excl.

2,314.42 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Video modes Support for standard PC, Sun and Mac video modes.
Hardware compatibility Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using upgradable PS/2, USB or Sun Computer Access Module (CAM) flash modules.
OS compatibility Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Upgradable platform Can be cascaded with a CATx 1000 to expand the system to 256 computers.
Connections 16 CATx computer connections: all RJ45 type. 1 RJ45 CATx for remote connection. Power connection: 3-pin locking connector (12V DC, 5A). RS232-triggered power switching and synchronisation: DB9 socket.
Physical design Compact 1U height metal construction for rack mounting
Width: 589mm/17.4", Height: 44mm/1.76", Depth: 650mm/25.6". Weight: RD1716xx 15kg/33lbs, RD1916xx 17kg/37lbs.
Power supply Mains adapter with IEC-type power cable (included).
Input: 100-240VAC 0.5A 50-60Hz
Output: 12VDC 5A
Operating temperature 0°C to 35°C
Approvals CE, FCC
AdderView RackDrawer 17" Screen, Integrated 16 port CatX1000 KVM Switch XX Keyboard
