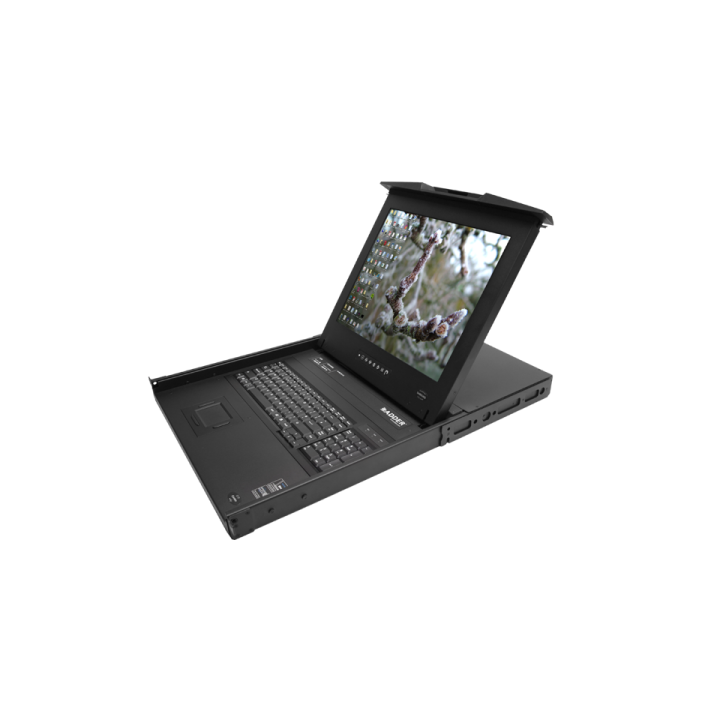

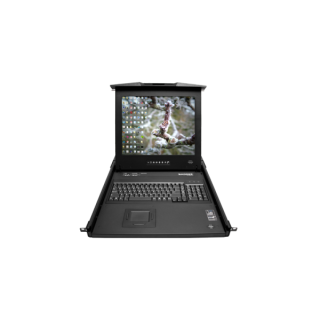

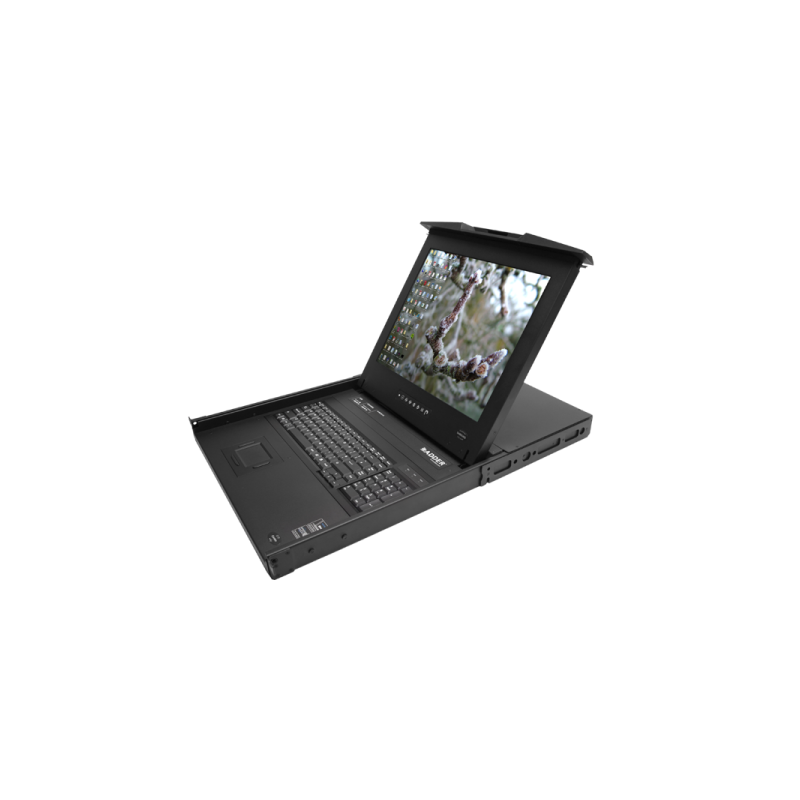

Adder - AdderView 17" Rack Tray 4 IPs with 16 Port CATx KVM Switch
Adder RD1716QIP XX - AdderView 17" Rack Tray 4 IPs with 16 Port CATx KVM Switch
1055565
AdderView 17" Rack Tray 4 IPs with 16 Port CATx KVM Switch
Visuals Price
3,081.00 CHF
VAT excl.
3,330.56 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video modes | Support for standard video modes for PC, Sun and Mac. | |
| Hardware compatibility | Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using flash-compatible PS/2, USB or Sun Computer Access Modules (CAM). | |
| OS compatibility | Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare. | |

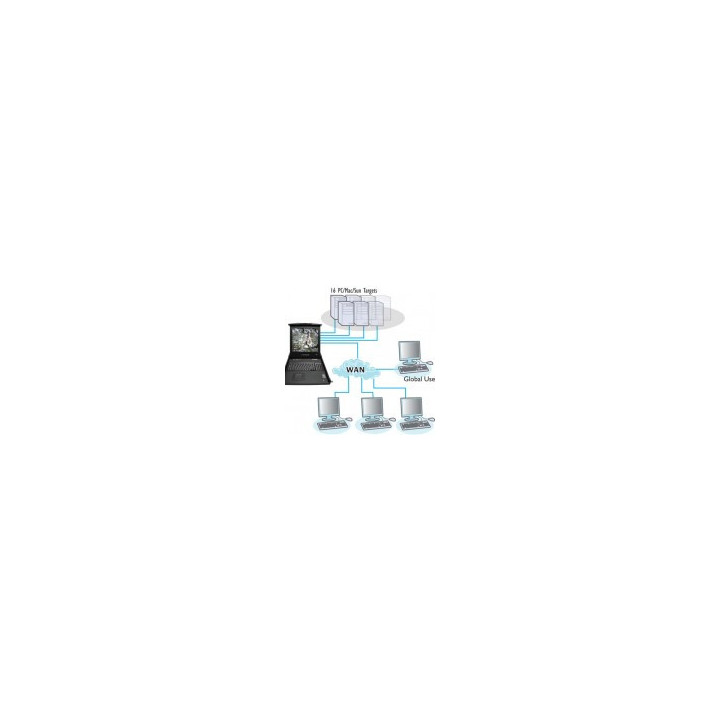

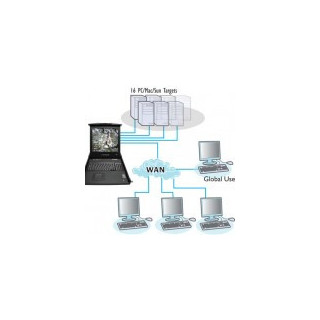

| Scalable platform | Cascade with CATx 1000 units to extend the system to 256 computers and one global IP user. | |
| Connections | ||
| CATx computer connections: | all RJ45 type. Auto-sensing 10/100 Ethernet network port: RJ45. | |
| Power connection: | 3-pin locking connector (12V DC, 5A). | |
| RS232-triggered power and sync switching: | DB9 connector. | |
| Physical design | Compact 1U height metal construction for rack mounting | |
| Width: | 589 mm/17.4", Height: 44 mm/1.76", Depth: 650 mm/25.6". | |
| Weight: | RD1716IPxx 15 kg/33 lbs, RD1916IPxx 17 kg/37 lbs. | |
| Power supply | Mains adapter with IEC-type power cable (included). | |
| Input: | 100-240VAC 0.5A 50-60Hz | |
| Output: | 12VDC 5A | |
| Operating temperature | 0 – 35 °C | |
| Certifications | CE, FCC | |
AdderView 17" Rack Tray 4 IPs with 16 Port CATx KVM Switch
