Adder - AdderView 19? Rack Tray 4 IPs with 16 Port CATx KVM Switch
Adder RD1916QIP XX - AdderView 19? Rack Tray 4 IPs with 16 Port CATx KVM Switch
1055569

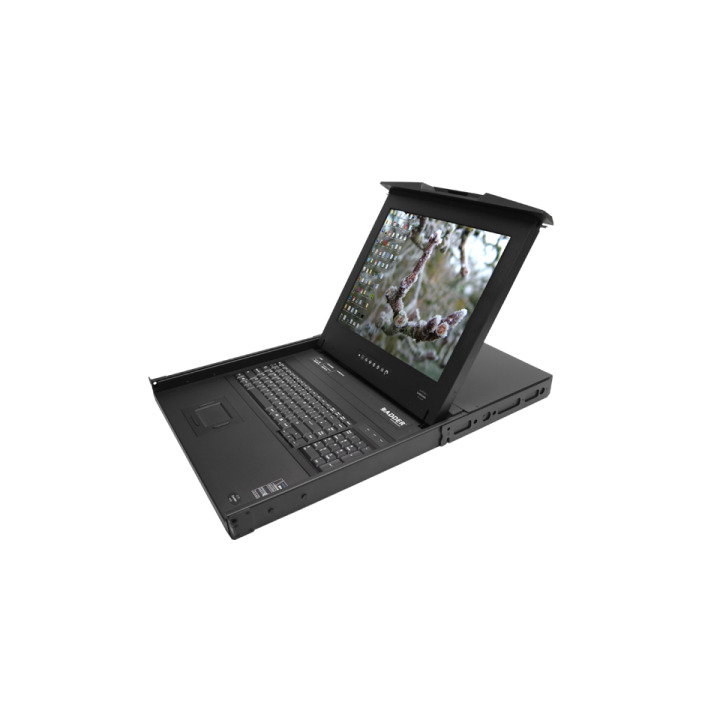

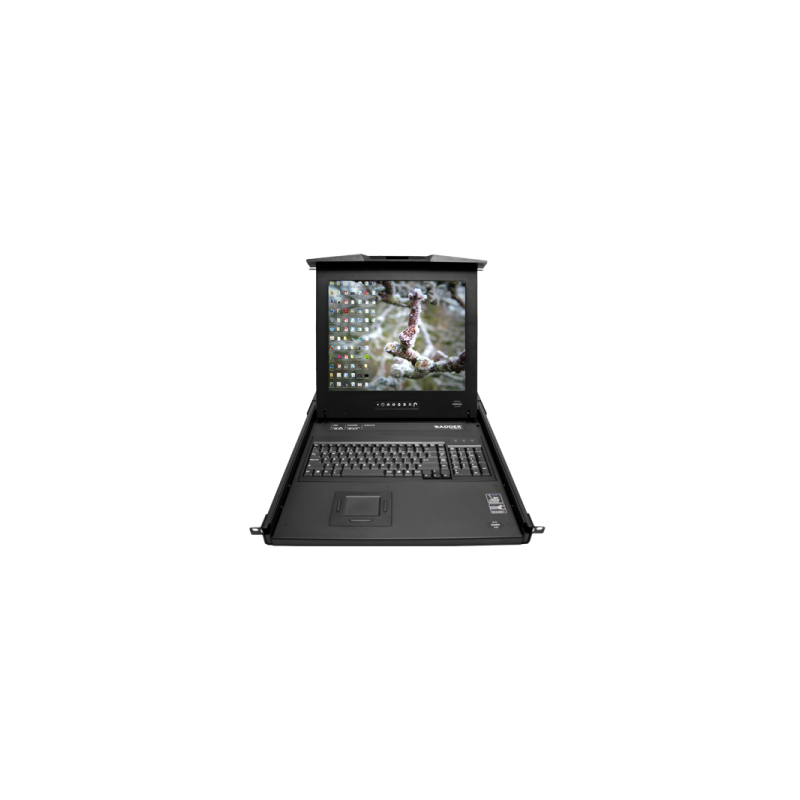

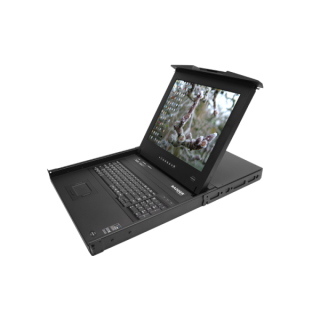

AdderView RackDrawer 19" Screen, Integrated 16 port CatX5000IP KVM Switch UK Keyboard.
Visuals Price
3,537.00 CHF
VAT excl.
3,823.50 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video modes | Supports standard PC, Sun and Mac video modes. | |
| Hardware compatibility | Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using scalable Computer Access Modules (CAM) PS/2, USB or Sun flash. | |
| OS compatibility | Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare. | |
| Expandable platform | Cascading with CATx 1000 units to extend the system to 256 computers and one global IP user. | |
| Connections | ||
| CATx computer connections: | all RJ45 style. Auto-sensing 10/100 Ethernet network port: RJ45. | |
| Power connection: | 3-pin locking connector (12V DC, 5A). | |
| RS232-triggered power switching and synchronisation: | DB9 socket. | |
| Physical design | Compact 1U height metal enclosure design for rack mounting | |
| Width: | 589 mm/17.4″, Height: 44 mm/1.76″, Depth: 650 mm/25.6″. | |
| Weight: | RD1716IPxx 15 kg/33 lbs, RD1916IPxx 17 kg/37 lbs. | |
| Power supply | Mains adapter with IEC-style power cord (included). | |
| Input: | 100-240VAC 0.5A 50-60Hz | |
| Output: | 12VDC 5A | |
| Operating temperature | 0 – 35 °C | |
| Certifications | CE, FCC | |
AdderView RackDrawer 19" Screen, Integrated 16 port CatX5000IP KVM Switch UK Keyboard.
