Adder - AdderLink X2 Silver
Adder X2-SILVER/P - AdderLink X2 Silver
1055663

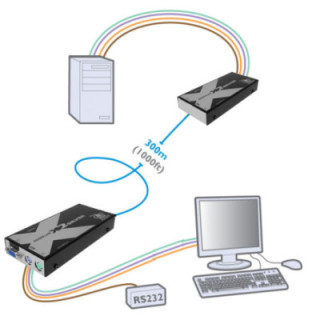

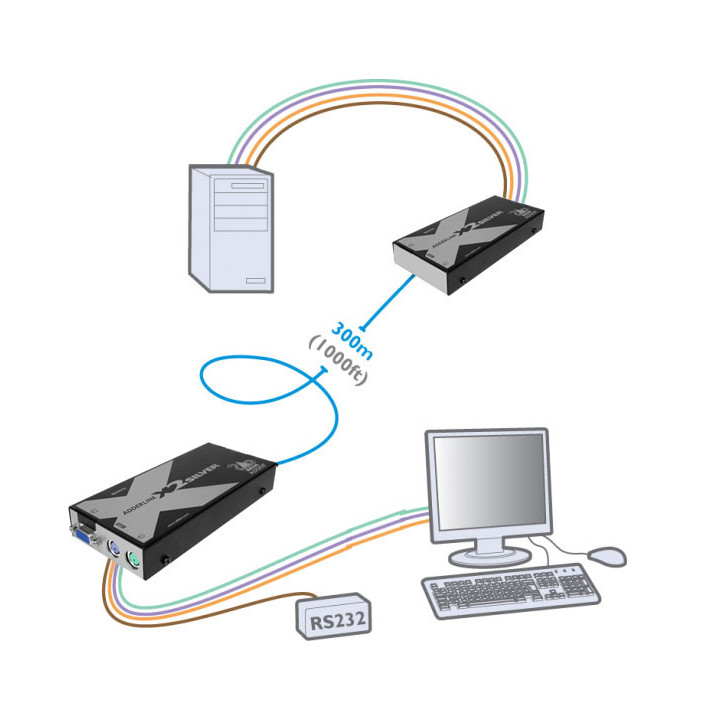

AdderLink X2 Silver. PS/2 KVM & RS232 CATx Extender. 300 Mtr. Extends KVM and transparent RS232 across a single CATx cable
Visuals Price
631.00 CHF
VAT excl.
682.11 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Mechanical | Local unit | |
| Height | 1 in. (26 mm.) | |
| Width | 6.7 in. (172 mm.) | |
| Depth | 2.9 in. (75 mm.) | |
| Rack space | 16 units fit in 2U of rack space | |
| Environmental | ||
| Temperature tolerance | 0-40°C (32 to 104°F) | |
| Humidity tolerance | 5 to 60% non-condensing | |
| Electrical power supply | ||
| Operating voltage | 100-240VAC | |
| Supply frequency | 50-60Hz | |
| Usage | 5VDC at 500mA | |
| Connectors (local computer side unit) | ||
| Computer | 1 x 25-pin female | |
| CATx cable | 1 x RJ45 | |
| Optional mains adaptor | 2.5mm DC jack socket (only required for video applications) | |
| Connectors (remote console side unit) | ||
| Keyboard | 1 x 6-pin purple female mini-DIN | |
| Mouse | 1 x 6-pin green female mini-DIN | |
| Monitor | 1 x 15-pin blue female high-density D-sub | |
| CATx cable | 1 x RJ45 | |
| Mains adaptor | 2.5mm DC jack socket | |
| Video resolutions | ||
| 1600 x 1280 | up to 200 metres/650 feet | |
| 1280 x 1024 | up to 300 metres/1000 feet | |
| Extension distance | ||
| CATx cable (x=5,5e,6,7) | Up to 300 metres / 1000 feet | |
AdderLink X2 Silver. PS/2 KVM & RS232 CATx Extender. 300 Mtr. Extends KVM and transparent RS232 across a single CATx cable
