FieldCast - Mux/Demux One 3G Plus (4x SDI in/out) + Ethernet over one fiber strand)
FieldCast co130 - Mux/Demux One 3G Plus (4x SDI in/out) + Ethernet over one fiber strand)
1086723
8719325534580

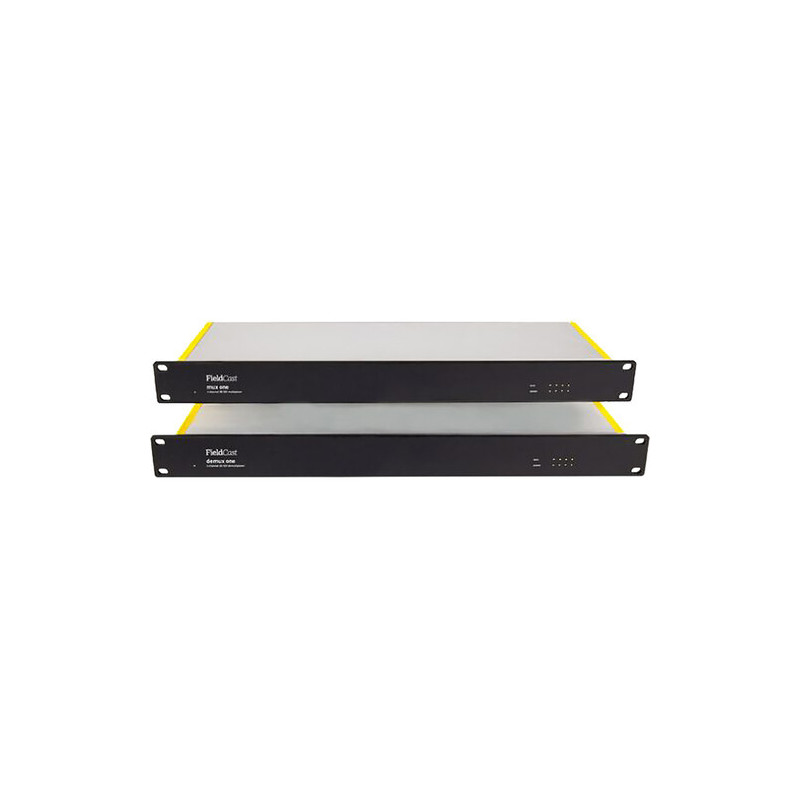

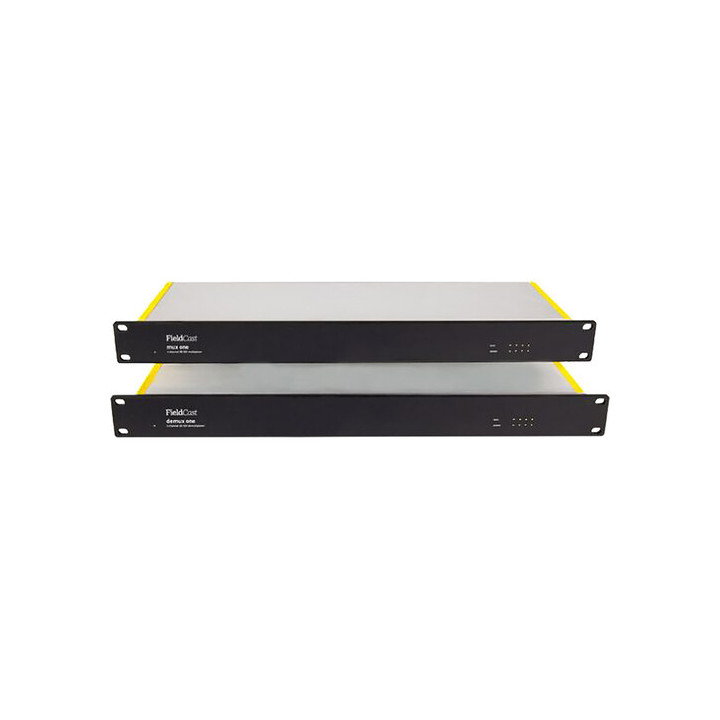

The Mux One 3G & Demux One 3G from FieldCast transports four channels of 3G_SDI video over one fibre optic channel and runs full duplex 1Gb Ethernet over a second channel. The multiplex units support up to 1080p60 video.
Visuals Price
3,549.00 CHF
VAT excl.
3,836.47 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
FieldCast CO130 Specifications
| Transmission I/O | Transmitter: 1x LC (Fibre) Output 4x BNC (3G-SDI) Input Receiver: 1x LC (Fibre) Output 4x BNC (3G-SDI) Output |
| Power I/O | Transmitter: 1x Proprietary Input Receiver: 1x Proprietary Input |
| Video Standards Compliance | SMPTE 259M-C/344M/292M/424M |
| Video Format | SDI: 1920 x 1080p: 60 fps |
| Rack Format | 1 U |
| Dimensions | Transmitter: 482 x 155 x 43 mm |
| Weight | Transmitter: 1.5 kg Receiver: 1500 g |
The Mux One 3G & Demux One 3G from FieldCast transports four channels of 3G_SDI video over one fibre optic channel and runs full duplex 1Gb Ethernet over a second channel. The multiplex units support up to 1080p60 video.
