Bluebell BC370R - Quad Channel 3G/SDI Fibre Optic Receiver Card

1007379
Bluebell BC370R - Quad Channel 3G/SDI Fibre Optic Receiver Card
Bluebell BC370R - Quad Channel 3G/SDI Fibre Optic Receiver Card

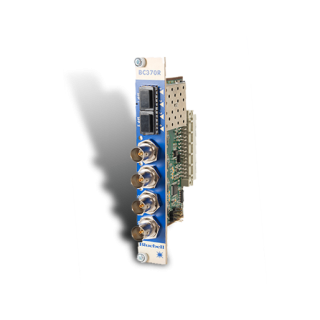

Quad Channel 3G/SDI Fibre Optic Receiver Card, Auto-Sensing and reclocking for SDI, ASI, HD/SDI and 3G/SDI. No Optics Fitted.
... learn more
Visuals Price
1,035.00 CHF VAT excl.

1,118.84 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

BC Series modular fibre optic interface system
The BC370R is a receiver card for converting four independent 3G-SDI, HD-SDI, SD-SDI and ASI signals from an electrical signal via a fibre optic cable. The incoming optical signal is transmitted to a transimpedance amplifier and limiter before being electrically resynchronised at the outputs. All Bluebell cards are designed to maintain maximum signal path integrity, providing excellent jitter-free optical transport. Each channel will automatically operate in bypass mode without resynchronisation when a non-standard SDI signal is presented and handles data rates up to 3 Gb/s. The BC370R is available in multimode, single-mode, WDM and CWDM variants to suit any fibre application. The BC370R occupies a single slot in the BC100-3RU 19" chassis which can accommodate up to 15 single-slot cards. This dual functionality allows transmission or reception of up to 60 video channels from a single 3RU chassis. Signal and card monitoring is achieved via SNMP monitoring in the BM102 network card. For standalone applications, the BC370R can be housed in a robust individual enclosure.



Specifications



Electrical output



Standards

SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI

Connector

BNC 75 Ohm according to IEC 60169-8 Amendment 2

Return loss

> 15 dB @ 1.485 Gb/s

Polarity

Non-inverting

Signal level

800 mV +/- 10%

DC offset

0 +/- 0.5 V

Jitter

Line <0.15 UI equalised

Format

Driven active loop outputs

Optical input



Wavelength

1260-1620 nm
See ordering information for multimode and single-mode variants

Sensitivity

> -25.0 dBm @ 3 Gb/s
> -25.5 dBm @ 1.485 Mb/s
> -26.0 dBm @ 270 Mb/s

Max input power

> -1 dBm

Data rate

50 Mb/s to 3 Gb/s

General card specifications



Depth:

60 mm

Width:

20 mm 4HP

Height:

129 mm (3RU)

Weight:

100 g

Operating temp.:

-30 to +70 ºC

Power:

3 W

Signal detection:

LED illuminated on signal loss

Number of slots:

1

Compliance



EMI/RFI:

Compliant with 89/336/EEC, EN55022B,
EN61000-4-2, EN61000-4-4-(Level 2),
EN61000-4-4FTB,
EN61000-4-5, EN61000-4-11 standards

Electrical:

Compliant with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 standards

Laser safety

Depends on installed SFP.
Compliant with Class 1 laser products

RoHS:

Compliant with Directive 2002/95/EC

Quad Channel 3G/SDI Fibre Optic Receiver Card, Auto-Sensing and reclocking for SDI, ASI, HD/SDI and 3G/SDI. No Optics Fitted.
