Bluebell BC390T - Quad Channel 3G/SDI Fibre Optic Multiplexing Transmitter Card

1007386
Bluebell BC390T - Quad Channel 3G/SDI Fibre Optic Multiplexing Transmitter Card
Bluebell BC390T - Quad Channel 3G/SDI Fibre Optic Multiplexing Transmitter Card
Quad Channel 3G/SDI Fibre Optic Multiplexing Transmitter Card, Auto-Sensing and reclocking for SDI, HD/SDI and 3G/SDI. No Optics Fitted.
... learn more
Visuals Price
2,380.50 CHF VAT excl.

2,573.32 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

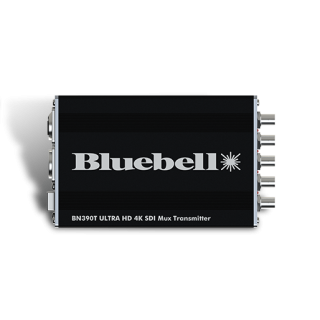

BN390 Deployable Optical Products for Outside Broadcast
Building on the proven BlueNano range, the BN390 is designed for economical transport of 4K UHD signals over fibre. Based on field-proven technology, these compact units enable the transport of 4 x 3G-SDI signals over a single wavelength on a single fibre. The BN390 also provides a compact conversion unit that enables fibre transmission of the outputs from up to four cameras. This unit multiplexes 4 x 3G-SDI into a single 12G-SDI signal with both electrical and optical outputs. With an option for ITU grid CWDM wavelengths, up to 18 x 12G-SDI channels or even 72 x 3G-SDI channels can be transported over a single single-mode fibre. Power is supplied via the compact PS12 unit. Each BN390 has a 4-pin XLR allowing power from various external DC sources in the range of 4.5 to 17 V.



Specifications



Electrical Input



Standards

SMPTE 424M, SMPTE 292M
SMPTE 297M

Equalisation

Automatic up to 100 m @ 3 Gb/s
Automatic up to 200 m @ 1.485 Gb/s

Connector

1 x BNC 75 Ohm to IEC 60169-8 Amendment 2 per channel

Return Loss

> 15 dB @ 1.485 Gb/s

Format

Resynchronised

Optical Output



Connector

Neutrik Opticalcon Dual

Wavelength

1270-1610 nm

Optical Power

-3 dBm @ 1310 nm (typical)

Optical Input



Connector

Neutrik Opticalcon Dual

Wavelength

1270-1610 nm

Sensitivity

> -22 dBm @ 3 Gb/s (typical)

Maximum Input Power

> -1 dBm

Electrical Output



Standards

SMPTE 424M, SMPTE 292M, SMPTE 297M
Automatic data rate selection for 3G-SDI, HD-SDI data rates.

Connector

1 x BNC 75 Ohm to IEC 60169-8 Amendment 2
per channel

Return Loss

> 15 dB @ 1.485 Gb/s

Signal Level

800 mV +/- 10%

DC Offset

0 +/- 0.5 V

Jitter

<0.15 UI equalised inline

Format

Resynchronised

General Card Specifications

Length

134 mm

Width:

109 mm

Height:

30 mm

Weight:

200 g

Operating Temperature:

-30 to +70 ºC

Power Supply:

2.5 W

Voltage

4.5 to 17 V DC

Compliance



EMI/RFI:

Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB,
EN61000-4-5, EN61000-4-11

Electrical:

Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3,
EN61000-6-4

Laser Safety

Dependent on installed SFP.
Compliant with Class 1 laser products

RoHS:

Complies with Directive 2002/95/EC

Quad Channel 3G/SDI Fibre Optic Multiplexing Transmitter Card, Auto-Sensing and reclocking for SDI, HD/SDI and 3G/SDI. No Optics Fitted.
