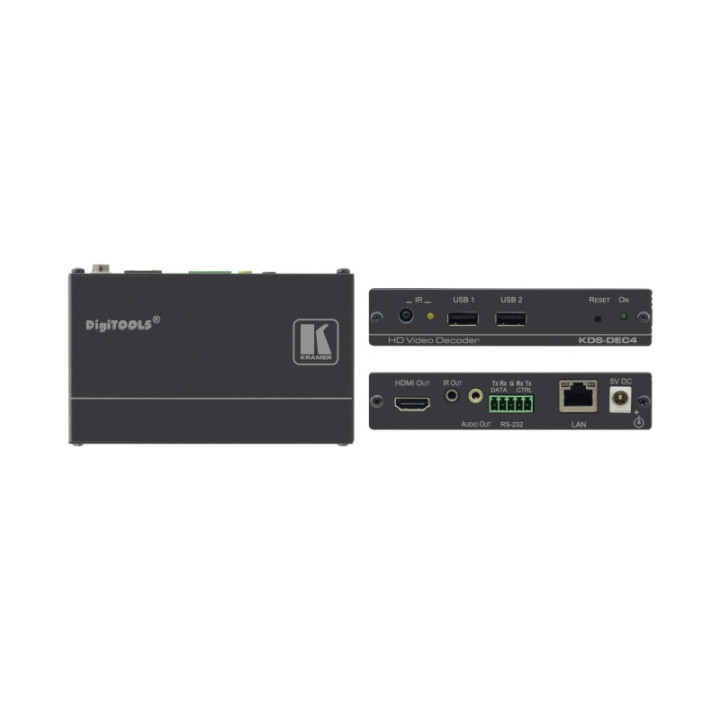

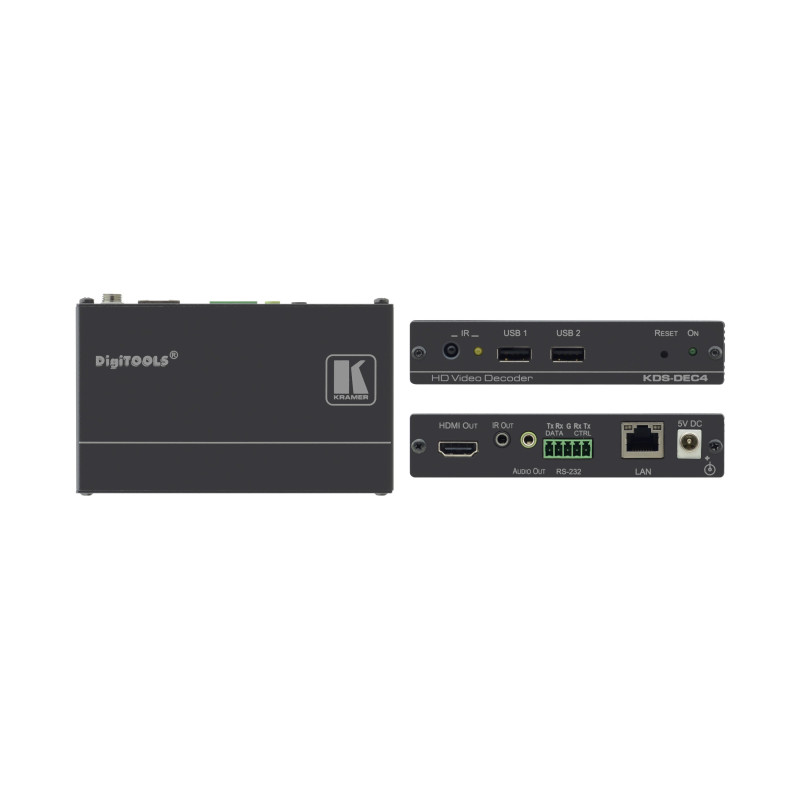

Kramer HD Video Streaming Decoder
The KDS-DEC4 is an H.264 decoder for HDMI signals up to 1920x1080p@60Hz. It provides high-quality, end-to-end complete IP video and audio. The KDS-DEC4 includes AVC support for H.264/MPEG-4 and AAC codec, open encoding allowing decoding via VLC® player software and unicast or multicast streaming via RTSP.
- High-resolution video encoding and compression - Supports the following resolutions: 1080p@60Hz (decoder only), 1080p@30Hz, 720p@60Hz and 720p@30Hz.
- Maximum compatibility - Fully standards-compliant H.264/MPEG-4 AVC (Advanced Video Codec) and AAC (Advanced Audio Code) codecs, enabling compatibility with other software and hardware encoders. Open encoding allows software decoding via VLC® player.
- Flexible audio support - Unbalanced stereo line input and built-in HDMI for encoder input and decoder output.
- Standard Ethernet network operation - 10/100/1000Mb.
- Selectable streaming mode - Unicast or multicast via RTSP (Real Time Streaming Protocol).
- Customisable recording - Store streaming sessions on a computer or external USB storage device.
- Powerful, versatile and user-friendly device management - Manage unit operation and settings using the Kramer Network enterprise management platform.
- Flexible operation - Control the unit via RS-232 control or via built-in web pages. Control an external device via RS-232 DATA port.
- Easy installation - Compact fanless DigiTOOLS® housing for ceiling mounting, or side-by-side mounting of 3 units in 1U rack space with optional RK-3T rack adapter.
Applications
- Education — E-learning applications with live multicast streaming on campus and via the Internet.
- Meeting room enhancements — Content sharing from meeting rooms with remote participants.
- Digital signage — Mass content distribution to many screens with no distance limitation, for example in hotels and places of worship.
|
|
Specification |
|
|
OUTPUTS |
1 HDMI: On HDMI female connector 1 Unbalanced stereo audio: On 3.5 mm mini-jack |
|
|
PORTS |
1 Ethernet: On RJ-45 connector |
|
|
VIDEO |
Supported resolutions: 720p@30Hz, 720p@60Hz, 1080p@30Hz, 1080p@60Hz Compression standard: H.264/Mpeg4 Part 10 (AVC) Levels: Up to 4.2 Bit rate: 100 kbps to 15 mbps Bit rate control: CBR |
|
|
AUDIO |
Compression standard: MPEG4 AAC-LC Channels: 2 channels (stereo), HDMI with L-PCM digital audio Sampling frequency: 44.1 and 48 kHz Bit rate: 128 kbps |
|
|
POWER SUPPLY |
Source: 5V DC Consumption: 650 mA |
|
|
HOUSING |
Size: DigiTOOLS®, 1U Type: Aluminium Cooling: Convection ventilation |
|
|
ENVIRONMENTAL CONDITIONS |
Operating temperature: 0° to +40°C (32° to 104°F) Storage temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RH non-condensing |
|
|
ACCESSORIES |
Included: Power supply, mounting kit |
|
|
PRODUCT DIMENSIONS |
12.00 cm x 7.15 cm x 2.44 cm (4.72" x 2.81" x 0.96") L, W, H |
|
|
PRODUCT WEIGHT |
0.2 kg (0.4 lbs) approx. |
