Kramer 4K60 4:2:0 video decoder, H.264 with PoE and video wall support
The KDS-DEC5 is a high-performance 4K@30Hz (4:4:4) H.264 video decoder that supports PoE and video wall in unicast (point-to-point) or multicast (many-to-many) configurations.
- Max. bit rate - 4K@30Hz (4:4:4) HDMI output.
- Standard AVC support - H.264 & AAC codecs.
- Virtualisation - RS-232 over IP.
- Network and IP support - Standard 10/100/1000 Mb Ethernet network operation. Managed switch: 1G, multicast, IGMP snooping, layer 2. Configurable DHCP, static or auto IP.
- Streaming and session control - Unicast, multicast and RTP over RTSP.
- Management and control options - Integrated web pages and API

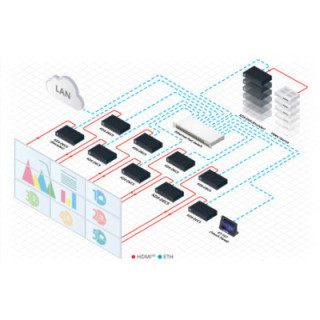

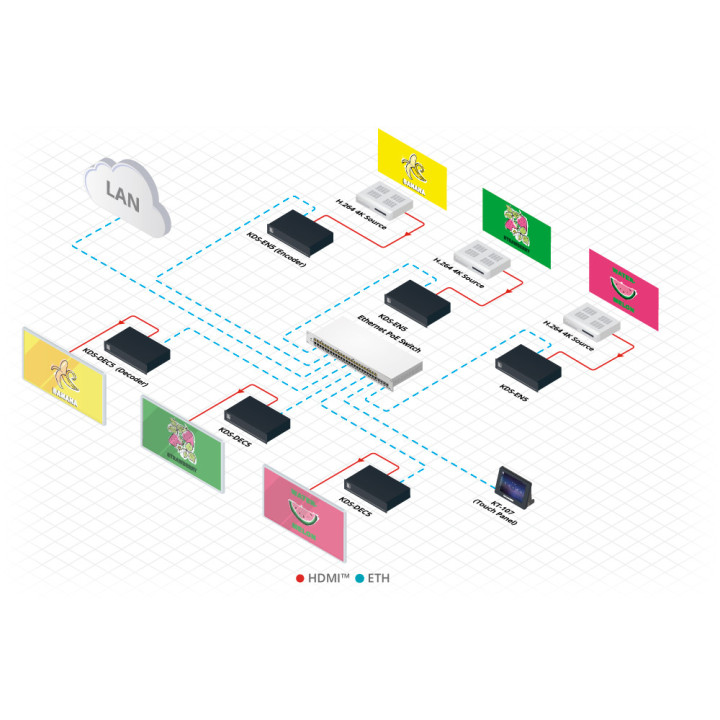

- Video wall - Up to 256 screens (16x16).
- Analogue audio output.
- Power supply - PoE or external power supply (not included).



Specification



OUTPUTS

1 HDMI (1.4): On HDMI female connector

1 Unbalanced stereo audio: On 3-pin terminal block connector

PORTS

1 Ethernet: On RJ-45 connector

1 RS-232: On 3-pin terminal block connector

VIDEO

Compression standard: H.264/MPEG-4 AVC

Profiles: Baseline, Main, High profile

Levels: Up to 5.0

Bit rate control: CBR, VBR, adjustable GOP size

Bit rates: 2 Mbps–30 Mbps

Encapsulation format: MPEG-2 Transport Stream

Transmission format: TS over UDP, TS over RTP

Input resolutions: 640x480, 800x600, 1024x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x1200, 1680x1050, 1920x1200, 720x480 (480p), 720x576 (576p), 1280x720 (720p30), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)

Output resolutions: 640x480, 720x480 (480p), 720x576 (576p), 800x600, 1024x768, 1280x720 (720p50), 1280x720 (720p60), 1280x800, 1280x1024, 1366x768, 1440x900, 1600x1200, 1680x1050, 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)

AUDIO

Compression standard: MPEG4 AACLC

Channels: 2 channels (stereo), HDMI with LPCM/AAC stereo audio

Sampling frequency: 48 kHz, Bit rate: 1.6 Mbps (LPCM), ≤240 Kbps (AAC)

POWER SUPPLY

Source: PoE or 12V DC power supply (not included)

Consumption: 5.6 W

ENVIRONMENTAL CONDITIONS

Operating temperature: 0 to +45°C (32 to +113°F), 10% to 90%, non-condensing

Storage temperature: –20 to +70°C (–4 to +158°F), 10% to 90%, non-condensing

Humidity: 10% to 90%, non-condensing

PRODUCT DIMENSIONS

21.90 cm x 13.50 cm x 2.50 cm (8.62" x 5.31" x 0.98") W, D, H

PRODUCT WEIGHT

0.8 kg (1.7 lbs) approx.
